253
A
PPLICATION
I
NJECTION

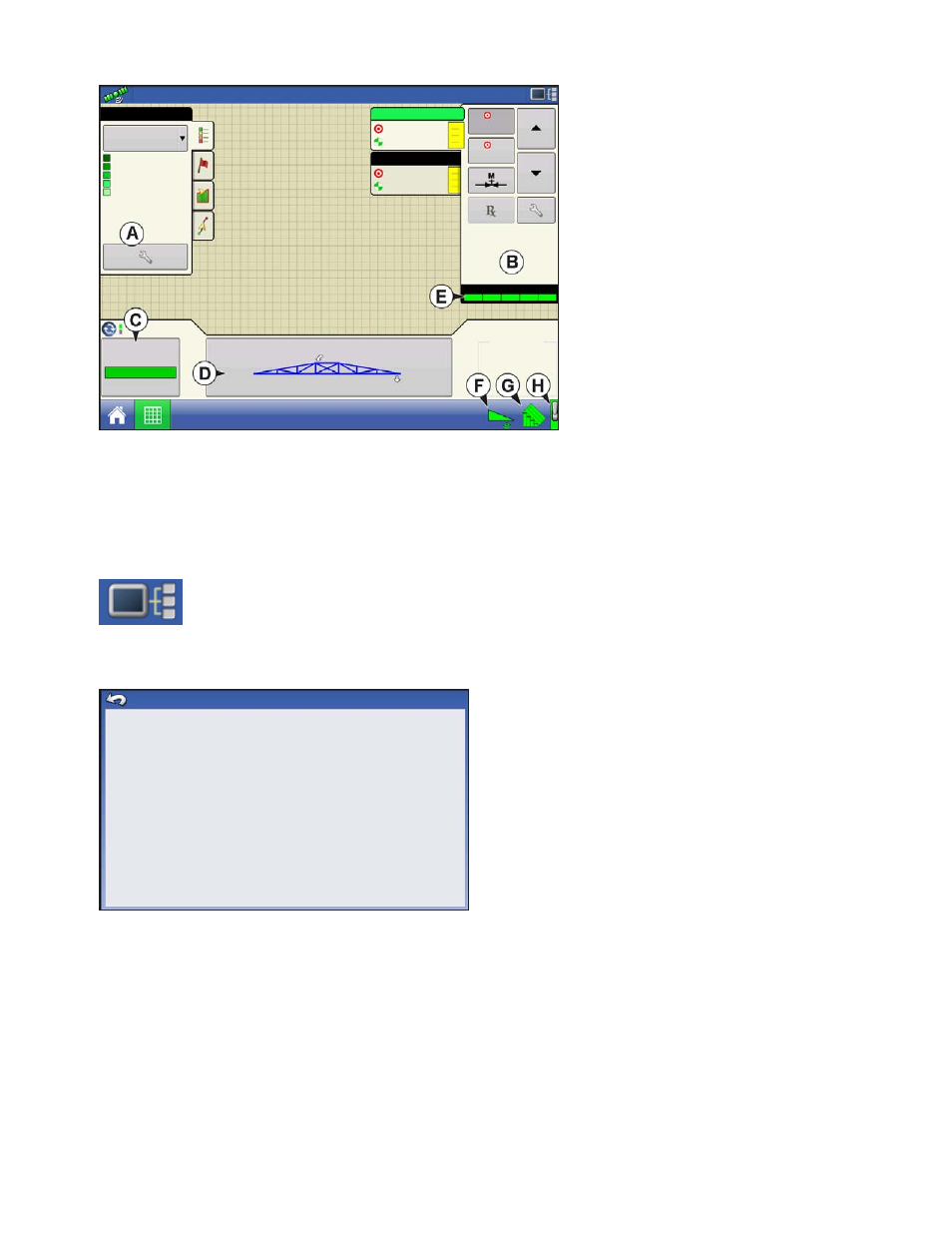

• (A) Mapping Toolbox
• (B) Product Control Toolbox
• (C) Injection Controls button
• (D) NORAC UC5 Boom Height Control
Options button
• (E) Section Indicators
• (F) NORAC UC5 Engage button
• (G) AutoSwath
• (H) Master Switch Status (on)
• Injection Controls button (C)
The number of direct injection controllers appear within the Injection Control button. This button displays
green for each injection module when detecting flow. Press the Injection Controls button to Prime or Agitate
the Injection pump.
I
NJECTION
D
IAGNOSTICS
The Injection Diagnostics screen provides raw values from sensors verifying that the
pump’s output is working. To go to the Injection Diagnostics screen, press on the Device
Information button. At the Devices screen, highlight the item marked AL Direct Inject then
press the Diagnostics button. The Injection Diagnostics screen appears. In addition to the Controller’s
Name and Serial Number, it provides the following information:
• Digital Pump Speed
Displays volume information, shown in Hz.
• Analog Pump Speed
Displays varying voltage as pump speed is increased or
decreased.
• Discharge Flow Monitor
Displays information showing that flow is being
discharged for every piston stroke.
• Flow/Speed Sensor Ratio
The ratio that the system derived for calibration.
T
ROUBLESHOOTING
D
IRECT
I
NJECTION
C
ONFIGURATIONS
When controlling a chemical injection pump using the Injection Module PN: 4000896, the configuration
requires the use of a Liquid Module PN: 4000394. The injection control is based off of the vehicle that
has been configured for the liquid DirectCommand control channel. Once configured, the Injection pump
uses the same switch inputs and ground speed input that has been configured for the liquid system.
1
205 +
185 - 205
165 - 185
145 - 165
0 - 145
Rate
Pressure (PSI)
Main:
Agitation:
37
45
Flow:
Container:
12.0 gal/min
793 gal
Mode: Crop Target Height: 12 in Sensitivity: 5
12.0 12.0 15.5 50F
Injection
1
0.49 ac 5.0 mph
15.00
15.00
5.000
5.000
gal/ac
lb/ac
1
15
2
10
30% UAN
N
Controller Name
Serial Number
Digital Pump Speed (Hz)
Analog Pump Speed (V)
Discharge Flow Monitor (Hz)
Flow/Speed Sensor Ratio
Di
2008850060
67.0
7.2
9.9
0.0
Injection Diagnostics
