Kinze Ag Leader Integra - Manual (Page 227)

211
P
LANTING
KINZE P
LANTER
M
ONITOR
M
ODULE
KINZE D
ISPLAY
I
TEMS ON
E
QUIPMENT
T
AB

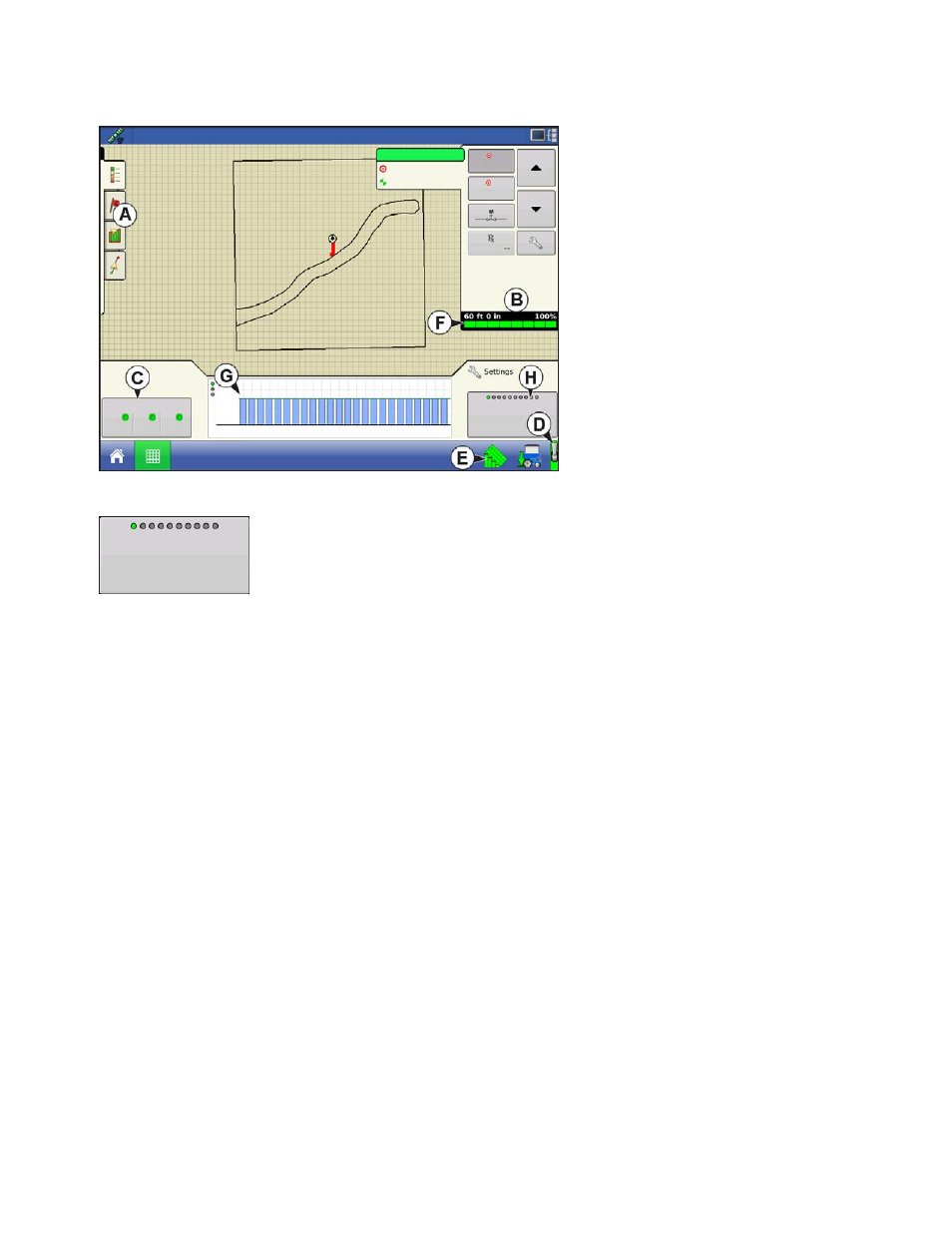

The left-hand side of the Map screen’s
Equipment Tab includes a number of
display items that will vary depending
upon the particular KINZE Planter
Monitor Module configuration.
Press button shown below to advance to the next button.
Shaft Speed
The speed of the planter drive shafts, in RPM.
SDS - The speed of the planter seed delivery system (auger), in RPM.
EdgeVac Level - Measure of seed meter vacuum. This measurement, shown in inches of water, is
displayed for each vacuum fan.
Pneumatic Down Pressure - Measure of down force the air bag places on the row unit.
Magnetic Pickup - Speed registered according to the magnetic pickup.
Tank Weight - The weight of seed in each tank.
Tank Area Left
The number of acres (hectares) that can be planted with the amount of seed remaining in the tanks.
Tank Pressure
The air pressure level for the Air Seed Delivery (ASD) system.
Down Force - Measure of force on gauge wheel and force being applied to row unit.
