284 Firmware Version 5.2

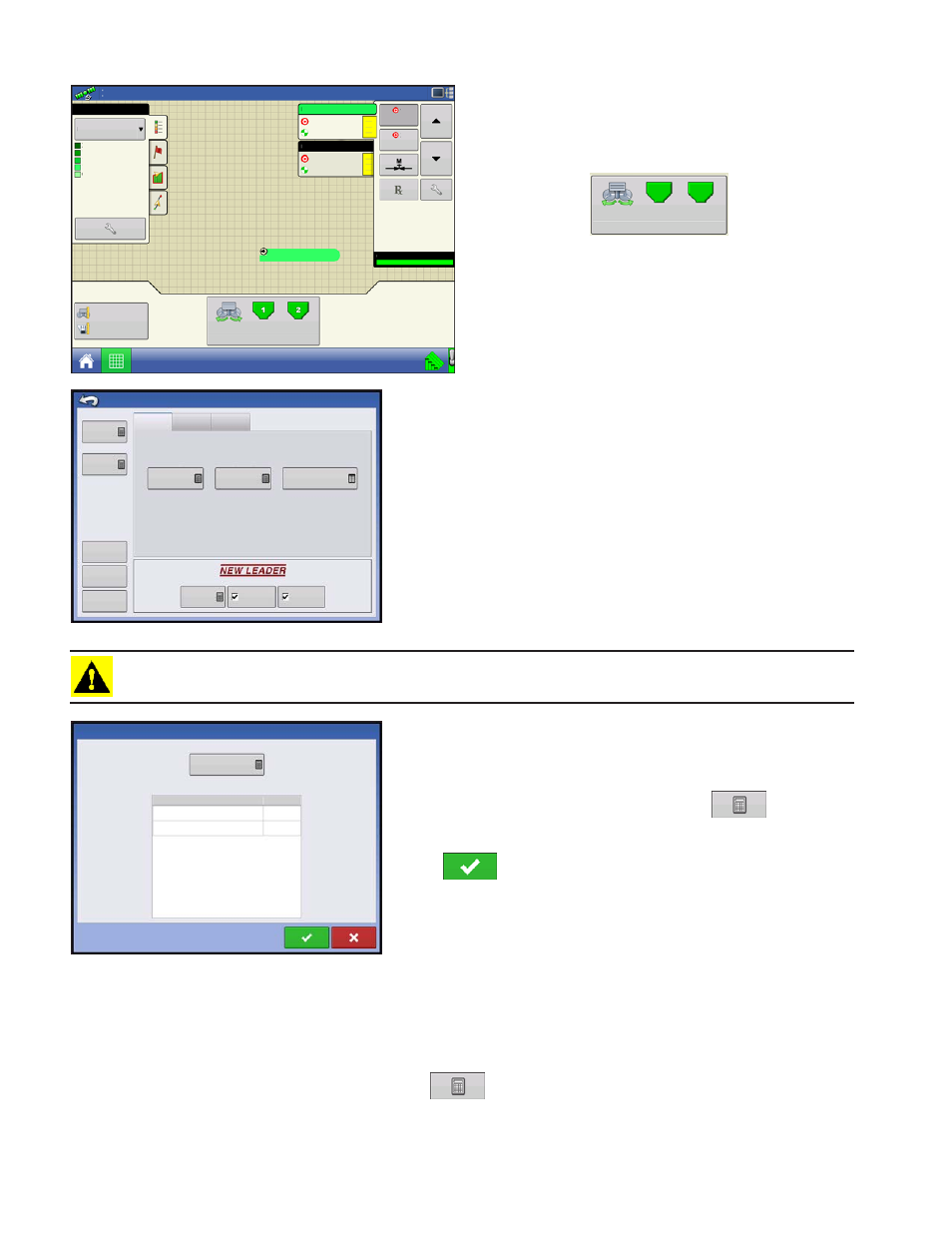

Conveyor rates for previously applied products can
be found by first pressing the Spreader Control
button which opens the Spreader Control screen.
The Spreader Control screen has a tab for each control
channel/product being applied. Select the desired channel
and press the Conveyor Rate button.
CAUTION: For proper machine performance and accuracy, Product Density should be measured for every
application load.
The Conveyor Rate button opens a setup screen where the
conveyor rate can be inputted and a table of previously
applied products and conveyor rates is shown.
Press the conveyor rate button and press to input
desired conveyor rate.
Press to accept the new conveyor rate and return to
the Spreader Control window.
Fan Frame & Feed Gate Actuator Settings
These are optional settings used by operators using a New Leader Linear Actuator module.
• Fan Frame
Checking the Fan Frame check box enables the Fan Frame Actuator. Displays the distance between the
spinner bed and the spinner assembly. Press to edit this value.
205 +
185 - 205
165 - 185
145 - 165
0 - 145
Fan Frame
3.5
Feed Gate
2.0
1
25 700
2
1.91 ac 15.0 mph
200.00
200.00
150.00
150.00
200
175
1
2
DAP
Potash
lb/ac
lb/ac
60 ft 0 in
Flow:
Container:
272.4 lb/min
146 bu
DAP
Rate
25
RPM
2
25 25 700
RPM
1
Spread Width
60 ft
Spinner Speed
600 rpm
Channel 1 Channel 2 Channel 3
62 lb/ft 3 2 in
2 in
Fan Frame
Feed Gate
Spreader Control
Fan Frame
0 ft 3 /rev
Product Feed Gate 1 Conveyor 1
Chain
Oiler
Static
Calibration
In-Field
Calibration
Conveyor Rate
Conveyor 1 Rate
O ft 3 /rev
Conveyor Rates for Products Previously Applied
Product ft 3 /rev
Potash
MAP
0.2560
0.0000
