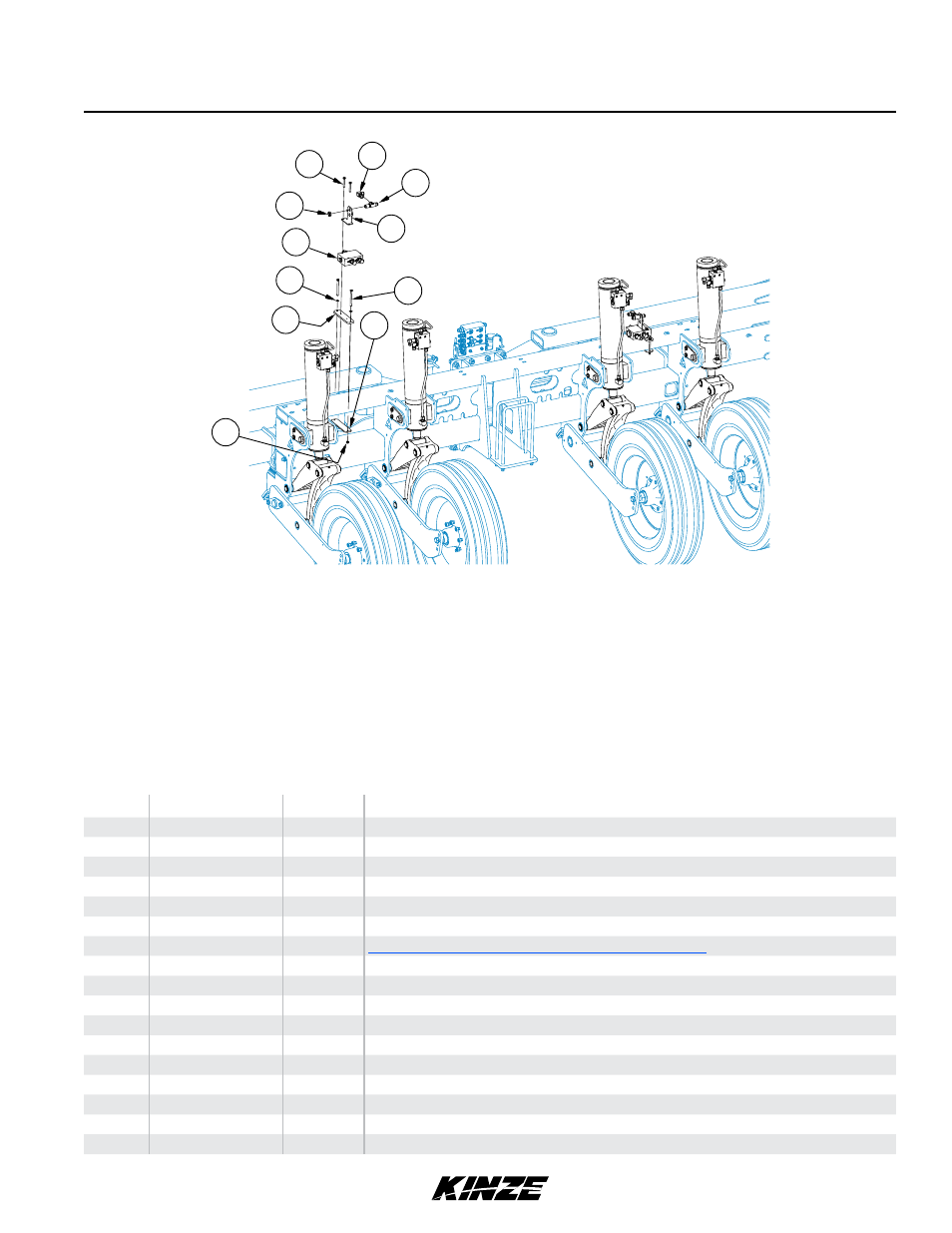

Kinze 4900 Front Folding Planter Rev. 3/14 - Manual (Page 95)

22
20
19
25
21
24
28
26
27
29
23
ITEM PART NO. QTY. DESCRIPTION
13 G10111 28 Lock Nut, ½"-13
14 G11621 24 External Spiral Retaining Ring, 1½"
15 G11593 8 External Spiral Retaining Ring, 1¼"
16 G10640 12 Grease Fitting, ¼"-28
17 G11389 24 Flat Washer, ½" Plated SAE
18 G10585 4 Hex Head Cap Screw, ½"-13 x 3¼"
19 --- 2 See “Hydraulic Valve Block on Flip Axle” on page P166
20 GD26948 2 Top Flow Divider Mount Plate, ⅜" Thick
21 GD26949 2 Top Flow Divider Mount Plate, ¼" Thick
22 G10753 4 Hex Head Cap Screw, ⅜"-16 x 4½"
23 G11387 4 Flat Washer, ⅜" SAE
24 G10108 4 Lock Nut, ⅜"-16
25 G10049 4 Hex Head Cap Screw, ⅜"-16 x 2½"
26 G2704-10 2 Tee, ⅞"-14 JIC
27 G6500-10 2 Swivel Elbow, 90°, ⅞"-14 Male JIC To Female
28 GD27429 2 Line Support Bracket
29 G306-10 2 Lock Nut, ⅞"-14
Flip Axle, 24 Row
Model 4900 M0247-02
Rev. 11/13 P92
