Kinze 4900 Front Folding Planter Rev. 3/14 - Manual (Page 173)

ITEM PART NO. QTY. DESCRIPTION
1 --- - See “24 Volt Power Pack” on page P173
2 GD27019 1 Power Pack Mount
3 GD25235 2 U-Bolt, 8" x 12" x ¾"-10
4 G10105 4 Hex Nut, ¾"-10
5 *A18628 1 Hose Assembly, ½" x 45" (10F-12F)
6 *A12780 1 Hose Assembly, ½" x 45" (10F-08F)
7 GA12053 1 Hose Assembly, ⅜" x 46" (06F-08F)
8 G10622 1 Serrated Flange Nut, ⅜"-16
9 G10529 1 External Tooth Lock Washer, ⅜"
10 G10101 1 Hex Nut, ⅜"-16
11 --- - See “24 Volt Battery Box” on page P171
12 G11387 2 Flat Washer, ⅜" SAE
13 G10002 2 Hex Head Cap Screw, ⅜"-16 x ¾"

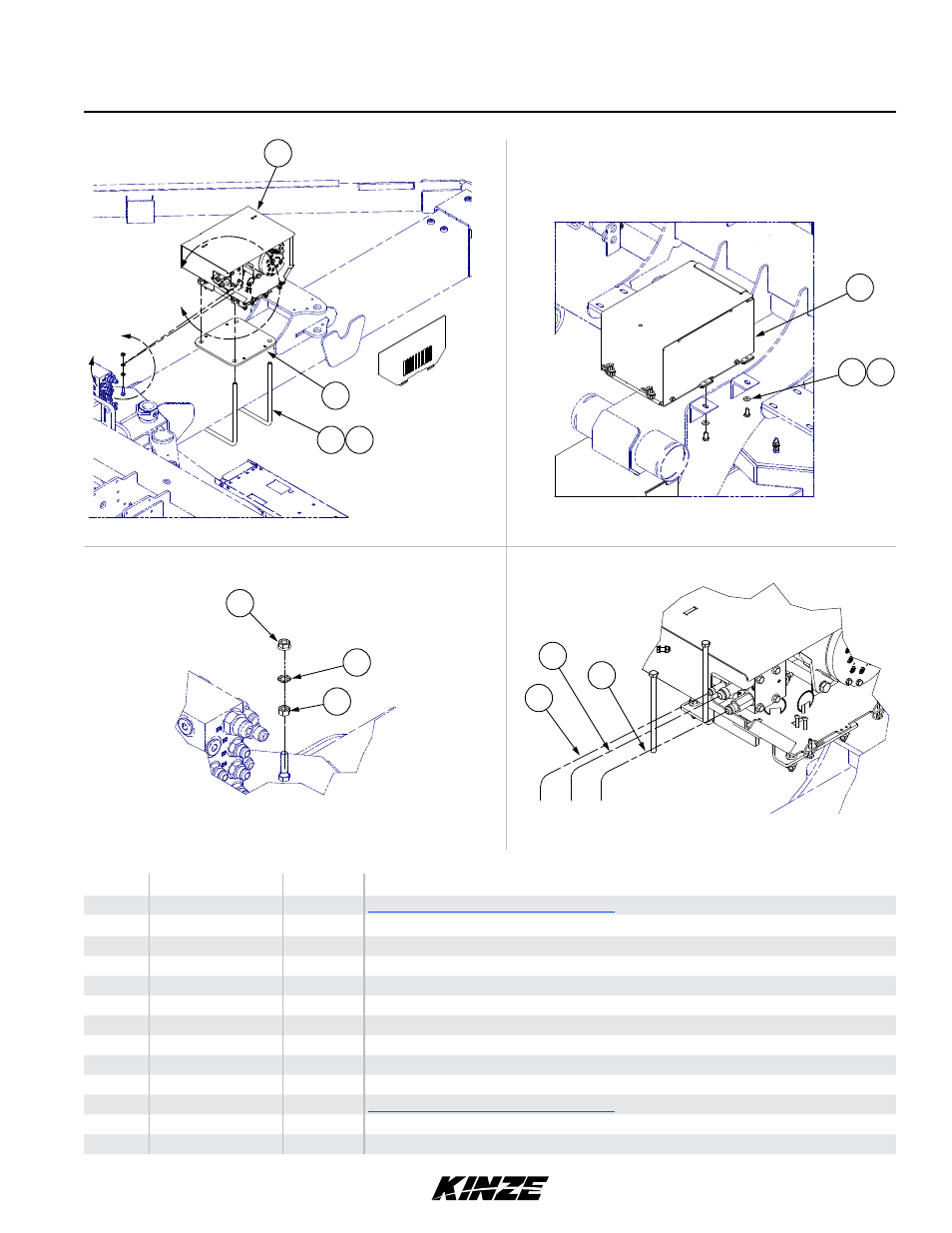

Power Pack Mounting Components
B
A
Detail B Detail A
3 4
7
6
5
2
8
9
10
1
11
12 13
(A17916a)
Model 4900 M0247-02
Rev. 2/14 P170
