Kinze 4900 Front Folding Planter Rev. 3/14 - Manual (Page 47)

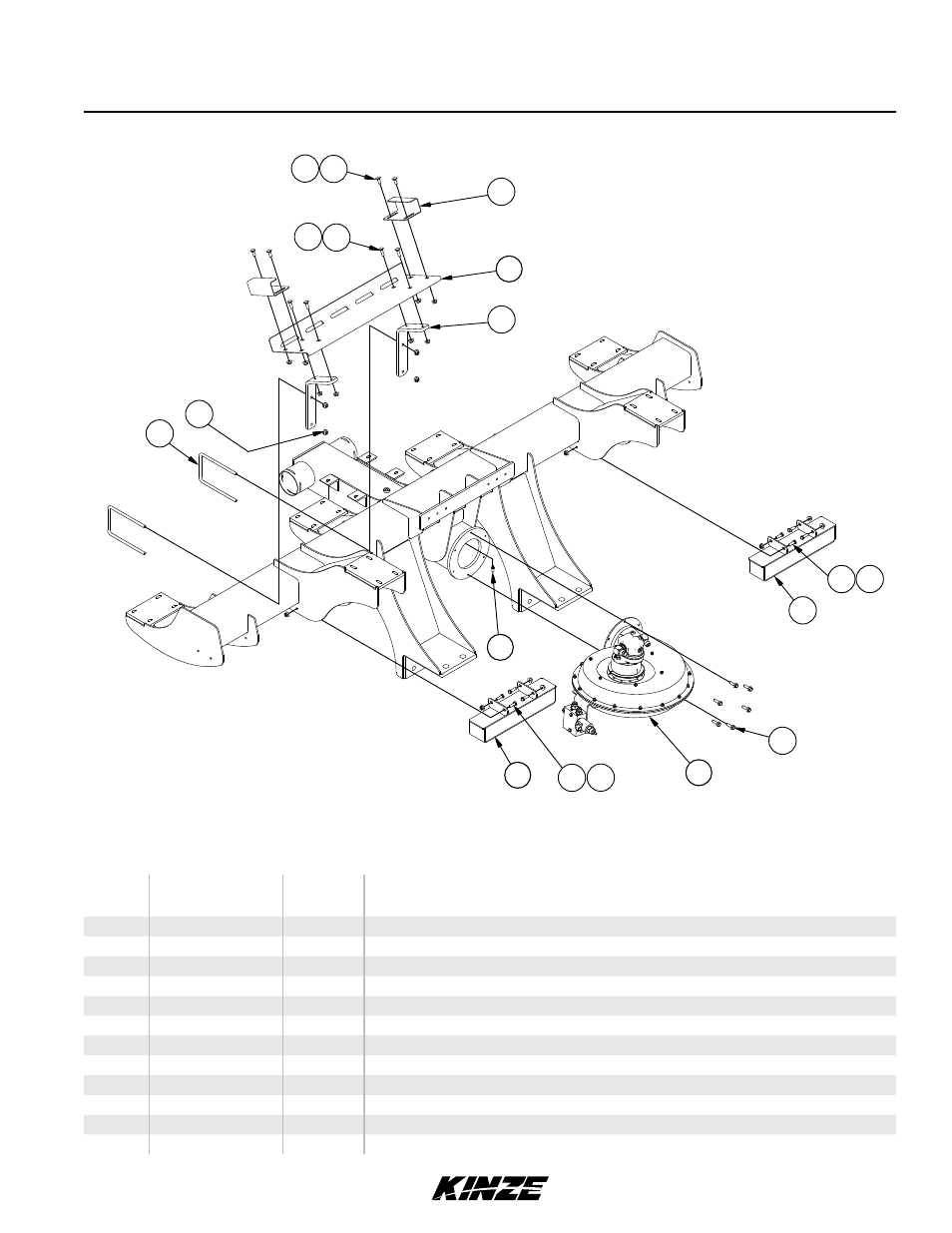

Bulk Fill System
(A18128a)
View A
Tank Assemblies Not Shown
View A
10
8
9
14 16
15 16
12
6
17
4 5
5
11 16
11 16
13
13
13
16
16
16
18
7
18
18
7
18
1
3
19
ITEM PART NO. QTY. DESCRIPTION
10 GD26509 2 Mounting Bracket
11 G10004 8 Hex Head Cap Screw, ⅜"-16 x 1¼"
12 G10111 4 Lock Nut, ½"-13
13 G10301 24 Carriage Bolt, ⅜"-16 x 1½"
14 G10305 4 Carriage Bolt, ⅜"-16 x 1"
15 G10599 4 Carriage Bolt, ⅜"-16 x 1¼"
16 G11091 40 Serrated Flange Nut, ⅜"-16
17 G11204 6 Flanged Whiz Lock Screw, ⅜"-16 x 1¼", Serrated
18 G11360 4 T-Bolt Hose Clamp, 4½"
19 GA19018 1 Air Filter, ⅛" NPT
20 GA14805 1 Air Pressure/Vacuum Sensor
21 GD28372 1 ⅛ " NPT Tee, Brass (Female/Male/Female)
22 GD18041 1 Hex Bushing, ¼" NPTM x ⅛" NPTF
Model 4900 M0247-02
Rev. 11/13 P44
