Kinze 4900 Front Folding Planter Rev. 3/14 - Manual (Page 231)

ITEM PART NO. QTY. DESCRIPTION
1 ---
---
--- 1
-
-
See "Centrifugal Pump With Bulkfill, 12 Row" on page P229
See "Centrifugal Pump With Bulkfill, 16 Row" on page P231
See "Centrifugal Pump With Bulkfill, 24 Row" on page P233
2 --- 1 See "Hydraulic Fertilizer Pump" on page P181
3 *A3161
*A3139
*A3116 2
2
2 Hose Assembly, ⅜" x 210", 12 Row
Hose Assembly, ⅜" x 254", 16 Row
Hose Assembly, ⅜" x 314", 24 Row
4 G6400-08
GR1037 2 Connector W/O-Ring, ¾"-16 Male JIC To O-Ring
O-Ring
5 G10753 4 Hex Head Cap Screw, ⅜"-16 x 4½"
6 G11387 4 Flat Washer, ⅜" SAE
7 G10101 4 Hex Nut, ⅜"-16
A
Detail A
4 3
2
1
4 3
5 6 7

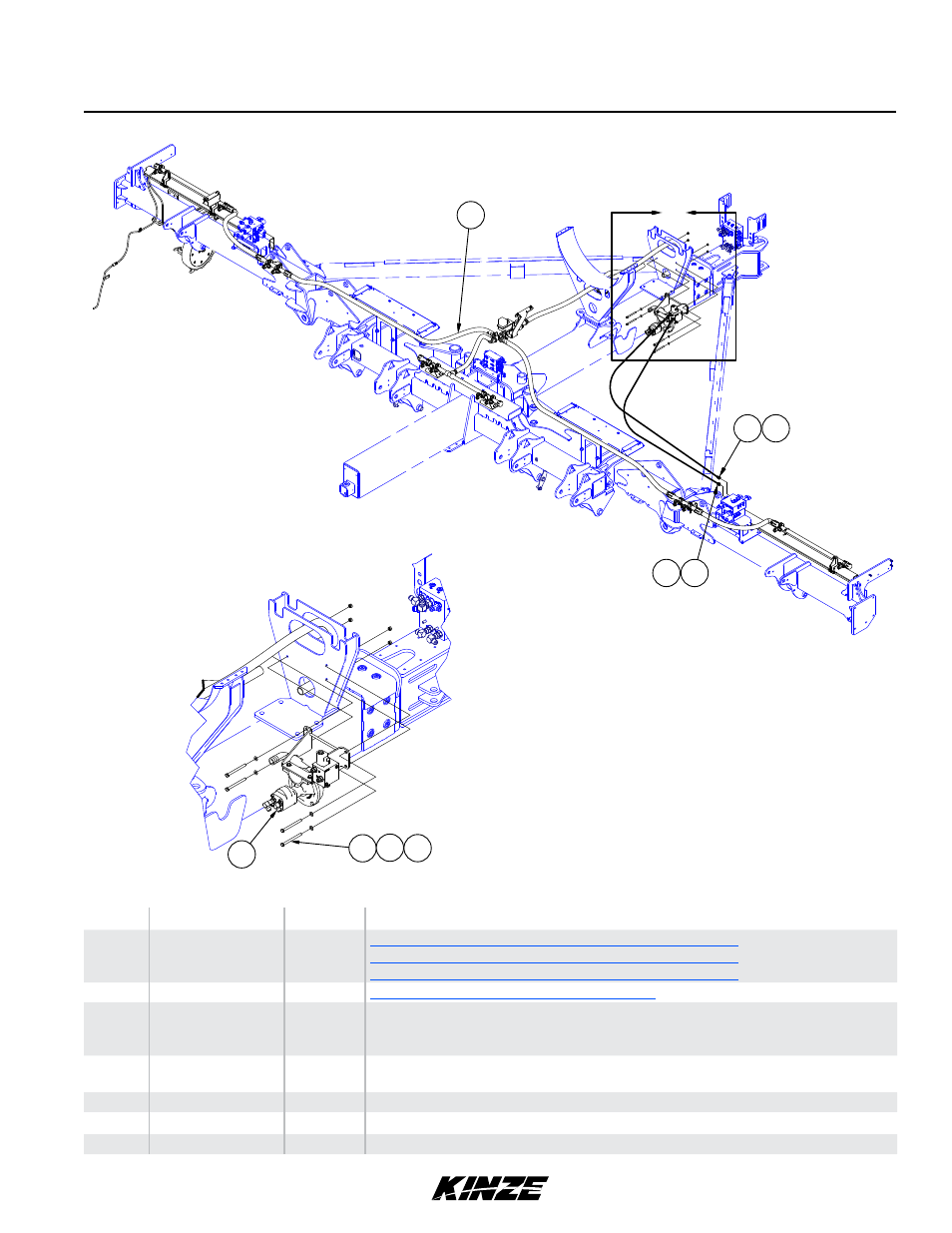

Centrifugal Pump With Bulkfill
(A18846)
Model 4900 M0247-02
Rev. 11/13 P228
