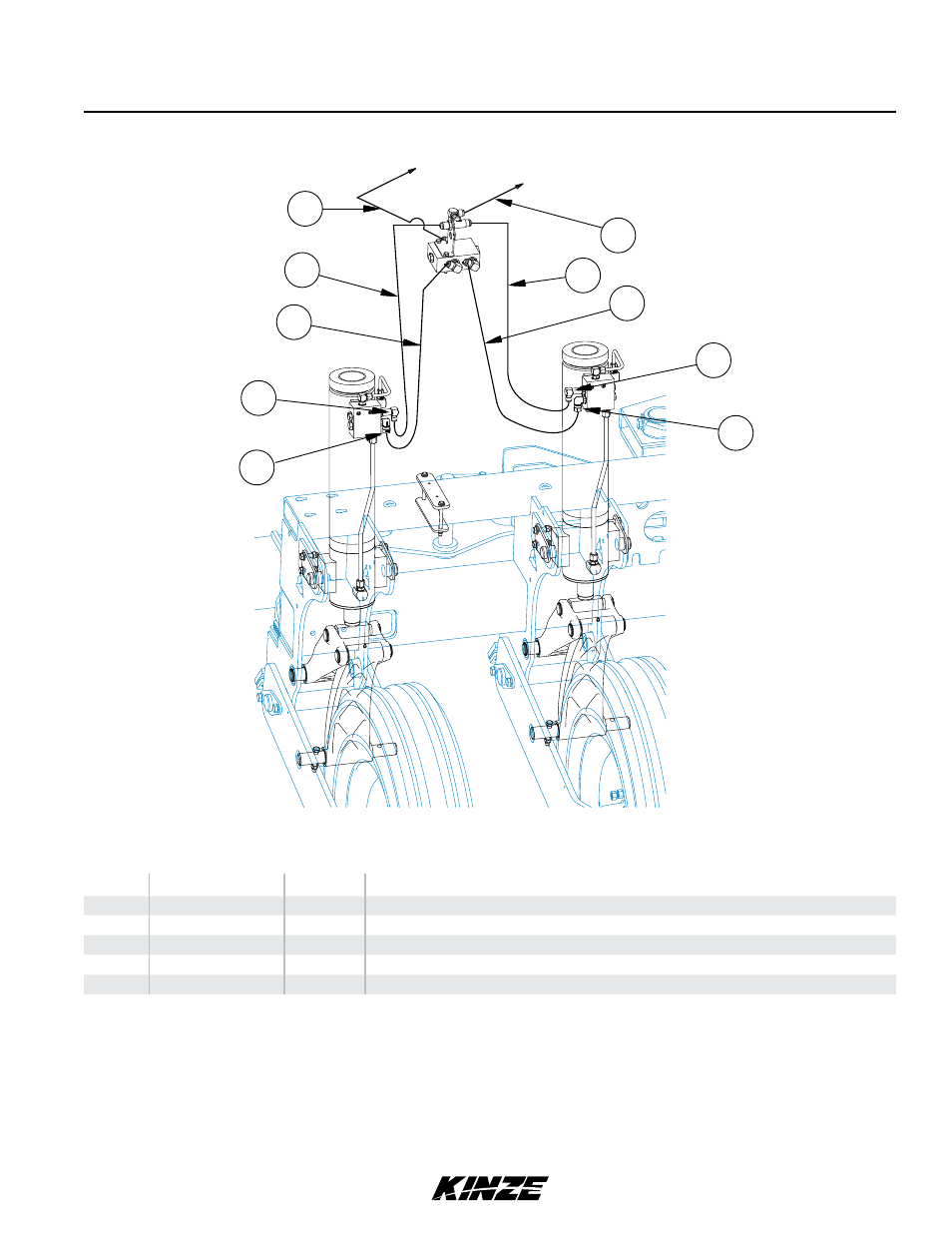

Flip Axle Hydraulic Schematic
HYDRAULIC DETAIL
2 PL
To E3 Lift Valve Block
To E1 Lift Valve Block
B2
B1
C1
2
3
2
3
4
5
4
5
1
1
ITEM PART NO. QTY. DESCRIPTION
1 *A1420 4 Hose Assembly, ½” x 48”
2 *A12759 4 Hose Assembly, ½” x 36”
3 *A12782 4 Hose Assembly, ½” x 36”
4 G6801-LL-08 4 X-Long Elbow W/O-Ring, 90°, ¾”-16 Male JIC To O-Ring
5 G6809-08 4 90° Adjustable Elbow W/O-Ring, ¾”-16 F JIC x ¾”-16
* Hydraulic hose is not stocked by Kinze Repair Parts, but can be made available on a special order basis. Call for
quote.
(A17688b)
Model 4900 M0247-02
Rev. 11/13 P128
