Kinze 4900 Front Folding Planter Rev. 3/14 - Manual (Page 247)

Notched Single Disc Fertilizer Opener
ITEM PART NO. QTY. DESCRIPTION
1 G10438 1 Hex Head Cap Screw, ½"-13 x ¾"
2 G10216 1 Washer, ½" USS
3 GA19965 1 Extended Right Angle Mounting Fertilizer Opener Mount
4 GD10273 1 Compression Spring
5 --- - ---
6 GD28663 1 Pin Sleeve
7 GA19460 1 Spindle
8 GD28664 1 Spindle Sleeve
9 GA19462 1 Tee
10 GA19464 1 Right Angle Mounting Fertilizer Opener Mount
11 G10507 1 Slotted Nut, 1"-14
12 GD1104 1 Dust Cap
13 G11394 2 Flat Washer, 1" SAE
14 G10322 6 Machine Bushing, 1¼", 18 Gauge (.0478")
15 GD28759 1 Release Pin
16 G11645 1 Spring Pin, ⅜" x 2¾"
17 GA19916
GA19917 1
-
R.H. Gauge Wheel Adjust
L.H. Gauge Wheel Adjust
18 GA19477
GA19970 1
-
Stow Pin, R.H.
Stow Pin, L.H.
19 GA19914
GA19913 1
-
R.H. Bottom Fertilizer Arm
L.H. Bottom Fertilizer Arm
20 GA19478 1 Hammer Strap Pin, 1¼" x 5½"
21 G10228 1 Lock Washer, ½”
22 G10014 1 Hex Head Cap Screw, ½"-13 x 1"
23 GA19461
GA19847 1
-
R.H. Gauge Wheel
L.H. Gauge Wheel
24 G10235 1 Machine Bushing, ⅞", 14 Gauge (.0747")
25 G11389 4 Flat Washer, ½" Plated SAE
26 G10111 2 Lock Nut, ½"-13
27 G10045 2 Hex Head Cap Screw, ½"-13 x 4½"
28 GA19452 1 Flat Mounting Fertilizer Opener Mount

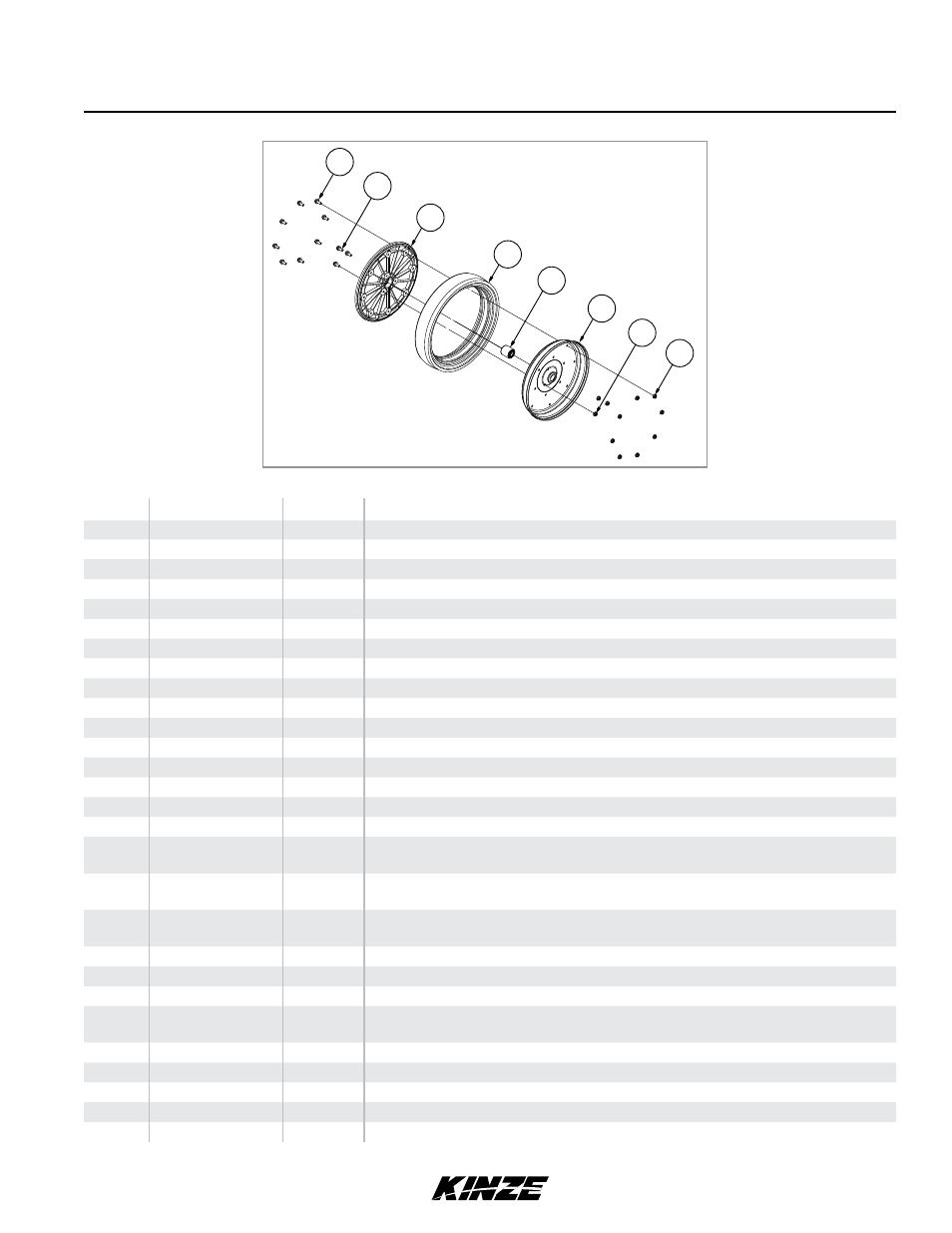

56
60
61
59
58
58
57
57
View A
Model 4900 M0247-02
Rev. 2/14 P244
TM
