Kinze 4900 Front Folding Planter Rev. 3/14 - Manual (Page 133)

ITEM PART NO. QTY. DESCRIPTION
1 GA18862 1 Barrel (Non-Stock Item)
2 G6408-08
GR1037 2
-
Plug W/O-Ring, ¾”-16 O-Ring
O-Ring
3 GD27236 1 Nylon Lock Nut, 1⅛"-12, Grade 8
4 *D12280 1 T-Seal
5 GD26966 1 Piston, 3½"
6 *D12088 1 Piston Ring, 3½"
7 *D12245 1 O-Ring, #122
8 GD2745-28 1 Sleeve, 2¼" O.D. x 5.19"
9 *D12231 1 O-Ring, #338
10 *D12232 1 BU Ring
11 *D12252 1 U-Cup
12 GD12548 1 Gland
13 *D12206 1 Wiper, 1½”
14 *D12103 1 Cast Iron Ring
15 GD27068 1 Rod
16 G11433 1 Hex Jam Nut, 1⅛"-12 Grade 2
17 GD27067 1 Locking Device
18 GD27066 1 Sleeve
19 G10640 1 Grease Fitting, 1/4”-28
20 GD11580 1 Flow Restrictor Orifice, ½"-20
A GA18861 - Cylinder Complete, 3½” x 20¾" (Part Number Stamped on Barrel)
B GR1532 1 Seal Kit, Includes: (1)Wiper, (2)O-Rings, (1)U-Cup, (1) BU Ring, (1)Cast Iron Ring,
(1)T-Seal
*Item is part of seal kit, item can not be purchased individaully.

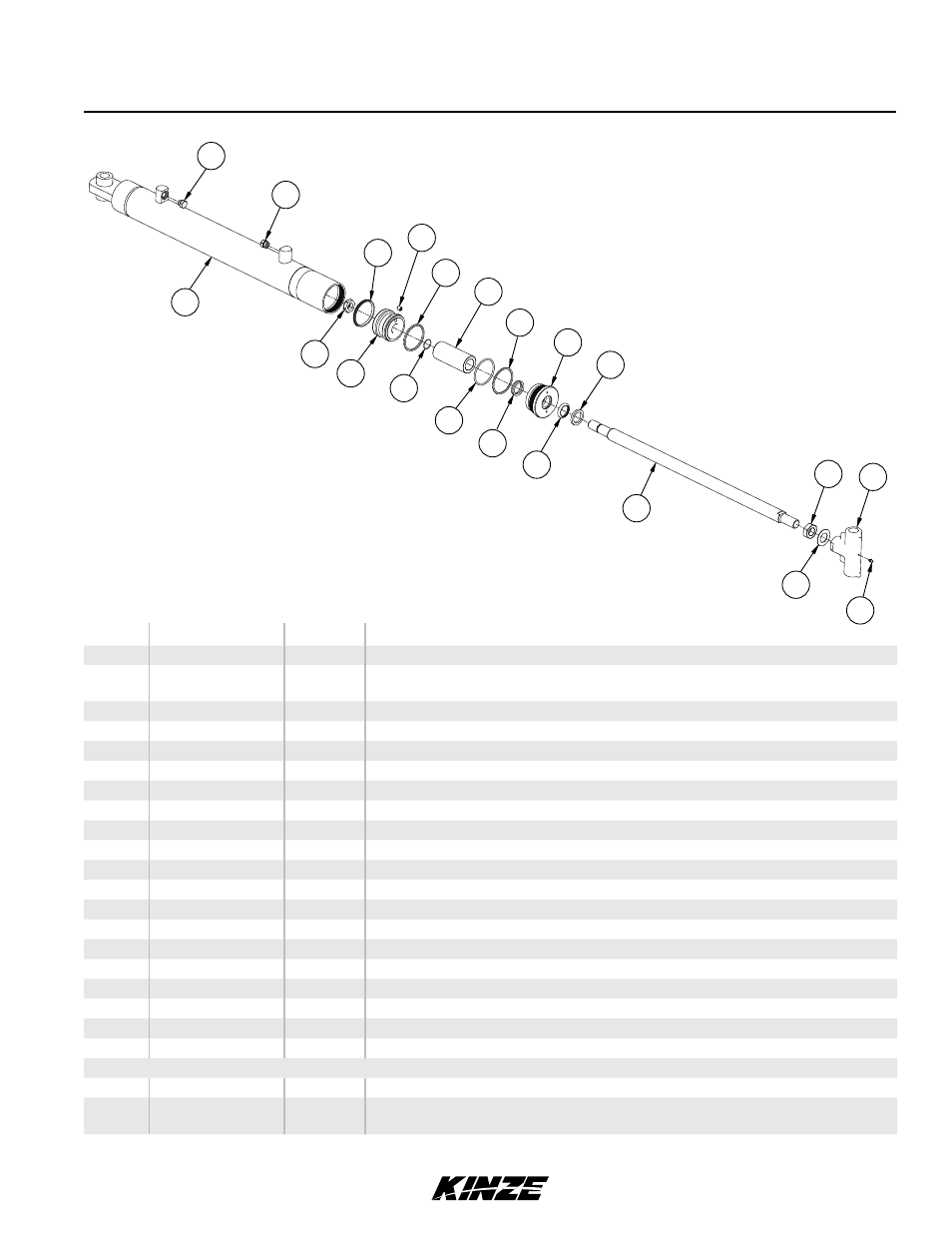

Row Marker Cylinder, 16 Row and 24 Row
(IP1487)
1
2
2
3
5
4
6
8
7
9
11
10
12
13
15
14
16
17
18
19
20
Model 4900 M0247-02
Rev. 2/14 P130
