Kinze 4900 Front Folding Planter Rev. 3/14 - Manual (Page 191)

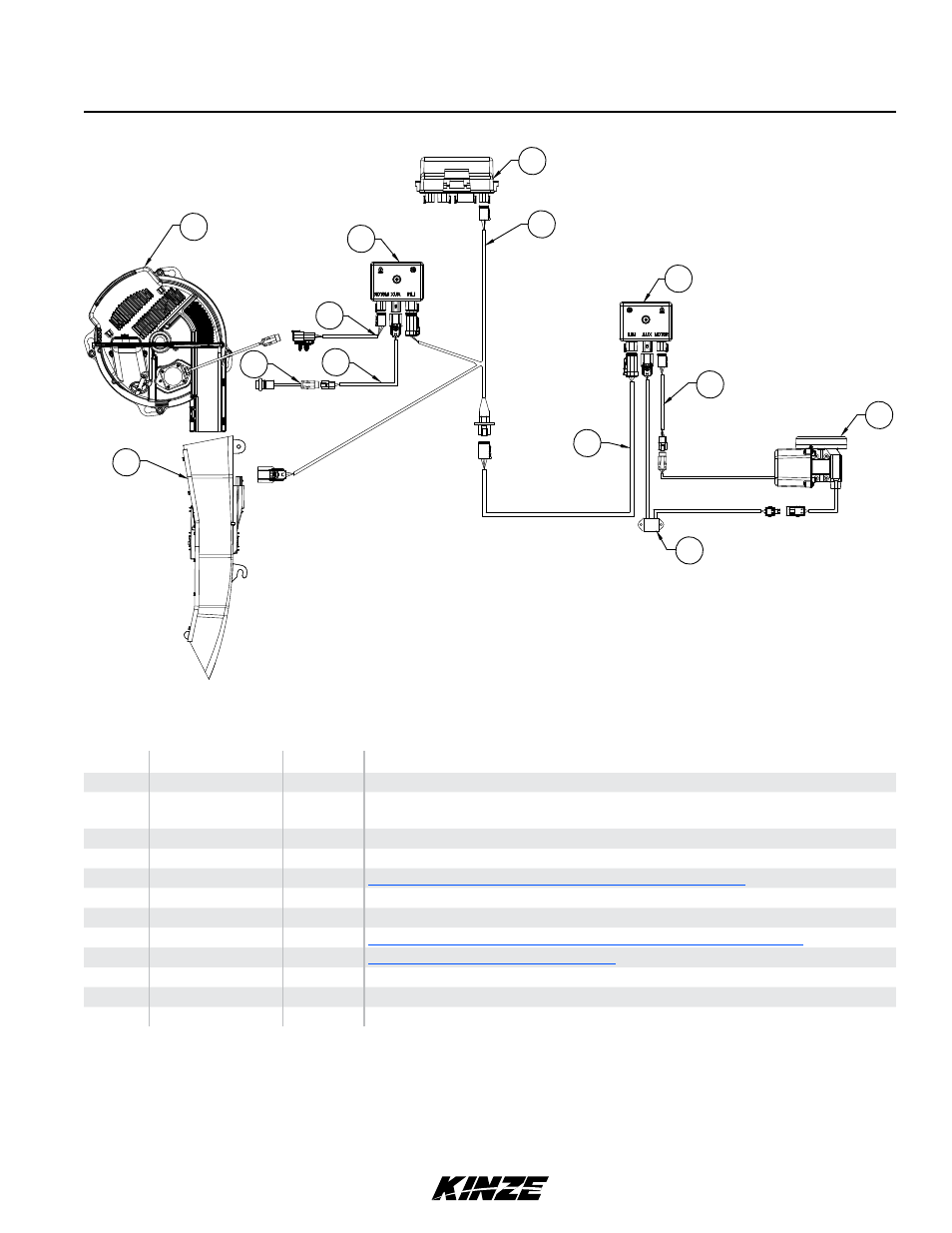

Row Unit Electric Drive Electical Schematic
ITEM PART NO. QTY. DESCRIPTION
1 GA19427 1 Row Module
2 GA19399
GA19408 1
-
Lin Ru Cable
Lin Ru Cable
3 GA19426 1 Driver Module Motor
4 GA19402 1 Insecticide Motor Cable
5 --- - See “Granular Chemical Meter Drive Assembly” on page P29
6 GA16094 1 C-V Converter
7 GA19403 1 Insecticide Communication Cable
8 --- - See “Shank Assembly, Seed Tube, and Depth Adjustment” on page P1
9 GA18277 - See “Vacuum Seed Meter” on page P13
10 GA15485 1 Manual Run Button
11 GA19423 1 Manual Button Cable
12 GA19401 1 Motor Cable
B
A
Row Unit Electric Drive
Seed Meter
Insecticide
9
3
1
2
3
4
7
6
5
12
11 10
8
Model 4900 M0247-02
Rev. 11/13 P188
