Wing wheel and hub assembly, 12 row and 16 row – Kinze 4900 Front Folding Planter Rev. 3/14 User Manual
Page 118
(IP1459)
ITEM
PART NO.
QTY.
DESCRIPTION
1
G11081
2
Hex Jam Nut, 1½"-12, Grade 2
2
GA0895
2
Bearing
3
GR0434
2
Cup
4
GB0160
1
Hub, 6-Bolt
5
GA4376
GD11490
1
-
Spindle W/Round External Retaining Ring, 10"
Round External Retaining Ring
6
GA17760
1
Rim, 20" x 5½"
7
GA7434
1
Valve Stem
8
GD13401
1
Tire, 7.50" x 20", 8 Ply, Tubeless W/O Center Rib (Specify Brand*)
9
GR0270
6
Lug Bolt, 9/16"-18
A
GA4377
-
Hub and Spindle Assembly (Items 1-5)
B
GA17759
-
Tire and Rim Assembly (Items 6-8)
*Specific brand requests will be supplied only as available from current Kinze Repair Parts stock. If a specific brand
requested is not in stock, the brand available will be supplied.

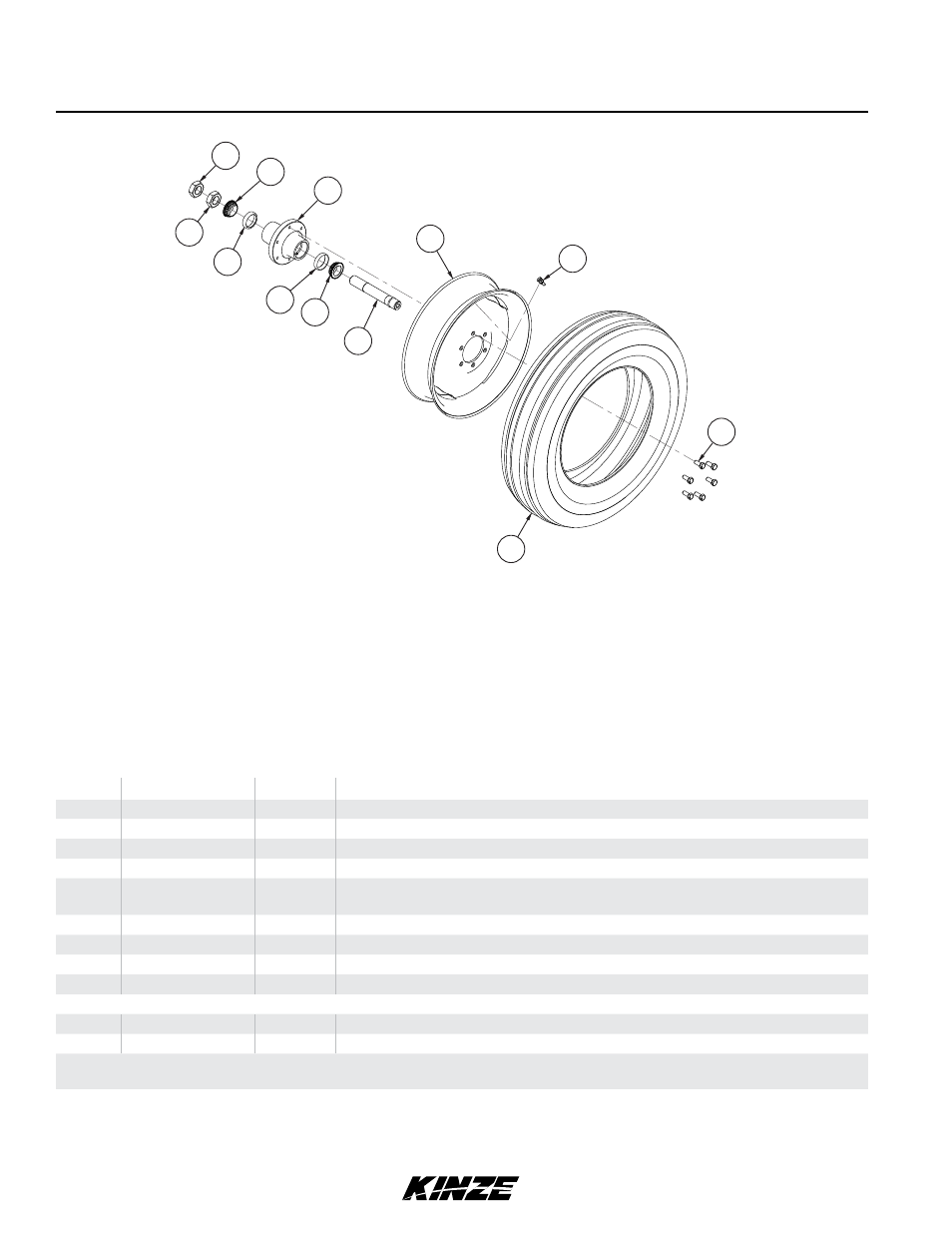

Wing Wheel and Hub Assembly, 12 Row and 16 Row
9
8
7
5
2
3
4
3
1
1
2
6
TM
M0247-02
Model 4900
