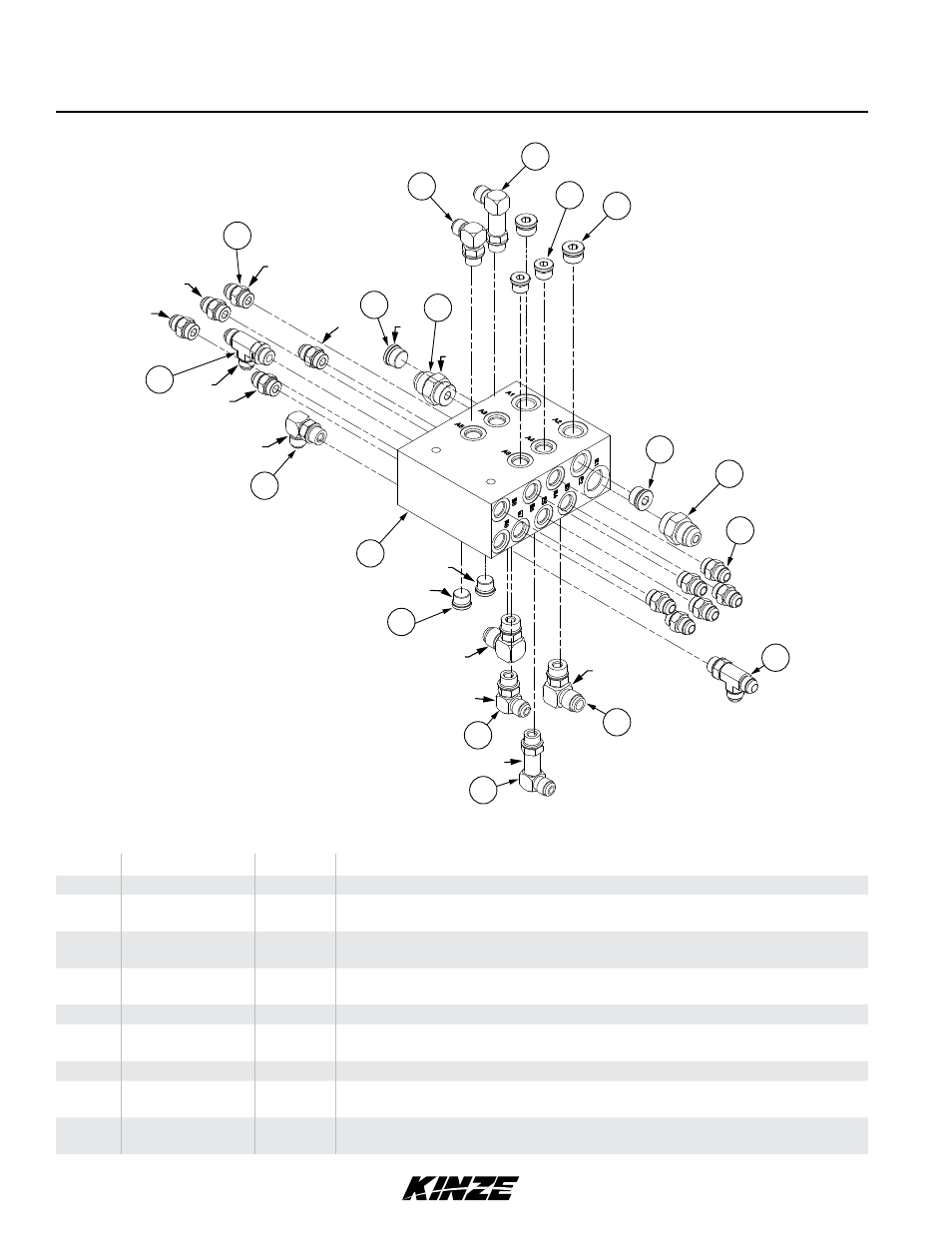

Hydraulic Valve Block on H-Frame
(D1)
(D2)
(D3)
(D4)
(D6)
(D9)
(D7)
(D8)
(F1)
(F3)
(F5)
(F2)
(F6)
(F4)
(D5)
1
4
2
7
5
3
9
8
6
6
4
3
5
5
2
7
4
9
(A17852)
ITEM
PART NO.
QTY.
DESCRIPTION
1
GD26191
1
Junction Block
2
G6400-08
GR1037
11
-
Connector W/O-Ring, ¾"-16 Male JIC To O-Ring
O-Ring
3
G6400-12
GR1467
2
-
Connector, W/O-Ring, 11/16"-12 Male JIC To O-Ring
O-Ring
4
G6801-08
GR1037
3
-
Elbow W/O-Ring, 90°, ¾"-16 Male JIC To O-Ring
O-Ring
5
G6408-H10-0
4
Hex Socket Head Plug W/O-Ring, ⅞"-14 O-Ring
6
G6408-H08-O
GR1037
4
-
Hex Socket Head Plug W/O-Ring, ¾"-16 O-Ring
O-Ring
7
G6801-LL-08
2
X-Long Elbow W/O-Ring, 90°, ¾"-16 Male JIC To O-Ring
8
G6801-10
GR1466
2
-
Elbow W/O-Ring, 90°, ⅞"-14 Male JIC To O-Ring
O-Ring
9
G6804-08
GR1037
2
-
Adjustable Tee, ¾"-16 Male JIC To O-Ring
O-Ring
