Kinze 4900 Front Folding Planter Rev. 3/14 - Manual (Page 159)

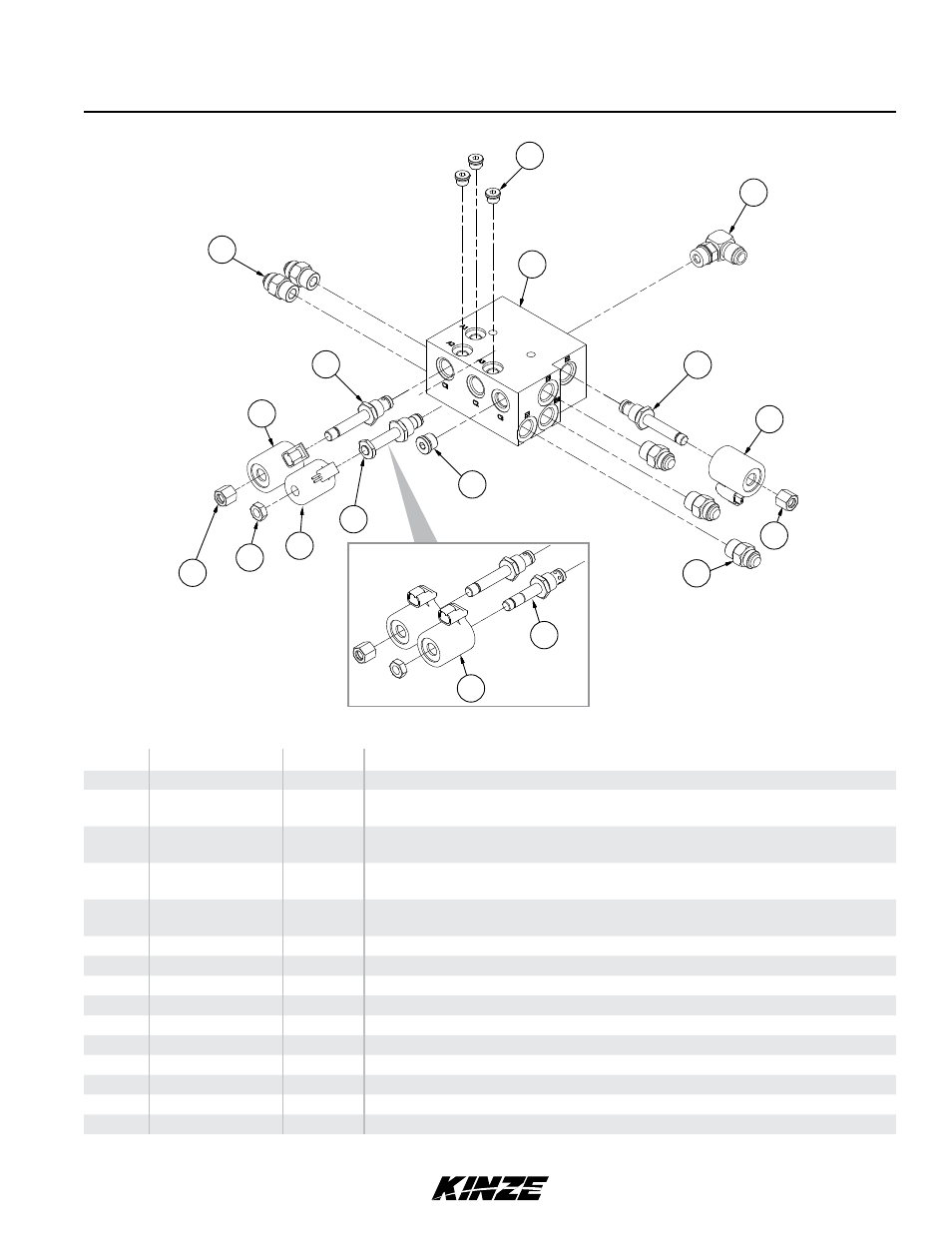

Lift Valve Block (Located on Bottom of Valve Block on Wing)
ITEM PART NO. QTY. DESCRIPTION
1 GD26192 1 Lift Valve Block
2 G6801-10
GR1466 1
-
Elbow W/O-Ring, 90°, ⅞"-14 Male JIC To O-Ring
O-Ring
3 G6400-10
GR1466 5
-
Connector W/O-Ring, ⅞"-14 Male JIC To O-Ring
O-Ring
4 G6408-H06-O
GR1045 3
-
Hex Socket Head Plug W/O-Ring, 9/16"-18 O-Ring
O-Ring
5 G6408-H08-O
GR1037 1
-
Hex Socket Head Plug W/O-Ring, ¾"-16 O-Ring
O-Ring
6 GR1321 1 Cartridge
7 GA14799 2 Coil
8 --- - ---
9 GA16308 1 Poppet Valve
10 GR1322 2 Special Hex Nut, ½"-20
11 GR0761 1 Special Hex Nut, ½"-20
12 GA18999 1 Electric Coil (Eaton)
13 GA18998 1 Solenoid Valve (Eaton)
*14 A17863 1 2-Way Pilot Operated Poppet (Delta)
*15 A14799 1 Coil (Delta)
*If replacing item(s) No. 14 and/or 15. Items 12 and 13 must be purchased.
(A17853)
4
2
3
10
11
7
6
13
5
9
1
10
3
7
12
14
15
*Obsolete Items
