Kinze 4900 Front Folding Planter Rev. 3/14 - Manual (Page 66)

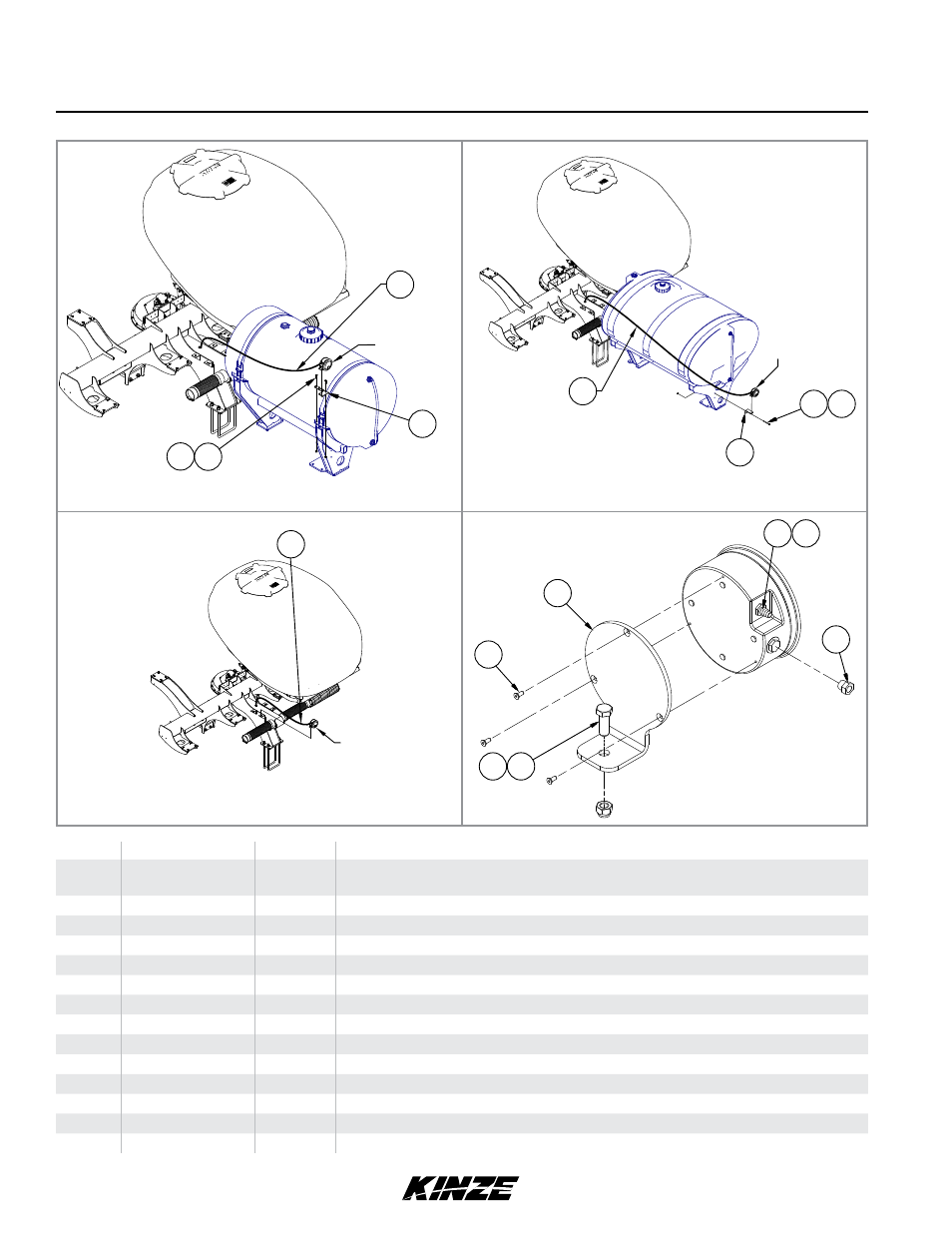

Bulk Fill Pressure Gauge
With Liquid Fertilizer Tank Installed - 12 Row
See Detail A
8
9 10
14
With Liquid Fertilizer Tank Installed - 16 Row and 24 Row
Without Liquid Fertilizer Tank Installed - All Row Sizes
See Detail A
See Detail A
12 13
11
14
14
With Liquid Fertilizer Tank Installed - 16 Row and 24 Row
Without Liquid Fertilizer Tank Installed - All Row Sizes
See Detail A
See Detail A
12 13
11
14
14
2
1 4
3
7
5 6
Detail A
ITEM PART NO. QTY. DESCRIPTION
1 GA10765
GR1777 1
-
Analog Vacuum Gauge W/Hose Barb
Hose Barb, 3/16" x ⅛" NPT
2 GA10799 1 Breather, ⅛" Male NPT
3 GD15804 1 Mount
4 GD15849-04 1 Clear Plastic Tubing, 5/16" O.D. x 144"
5 G10001 1 Hex Head Cap Screw, ⅜"-16 x 1"
6 G10108 1 Lock Nut, ⅜"-16
7 G11215 3 Hex Socket Head Cap Screw, No. 6-32 x ⅜", Grade 8
8 GD27152 1 Pressure Gauge Support
9 G10004 2 Hex Head Cap Screw, ⅜"-16 x 1¼"
10 G10108 2 Lock Nut, ⅜"-16
11 GD15803 1 Support
12 G10753 1 Hex Head Cap Screw, ⅜"-16 x 4½"
13 G10108 1 Lock Nut, ⅜"-16
14 GD15849-02 - Clear Plastic Tubing, 5/16" O.D. x 120”
TM
M0247-02 Model 4900
P63 Rev. 2/14
