Kinze 4900 Front Folding Planter Rev. 3/14 - Manual (Page 204)

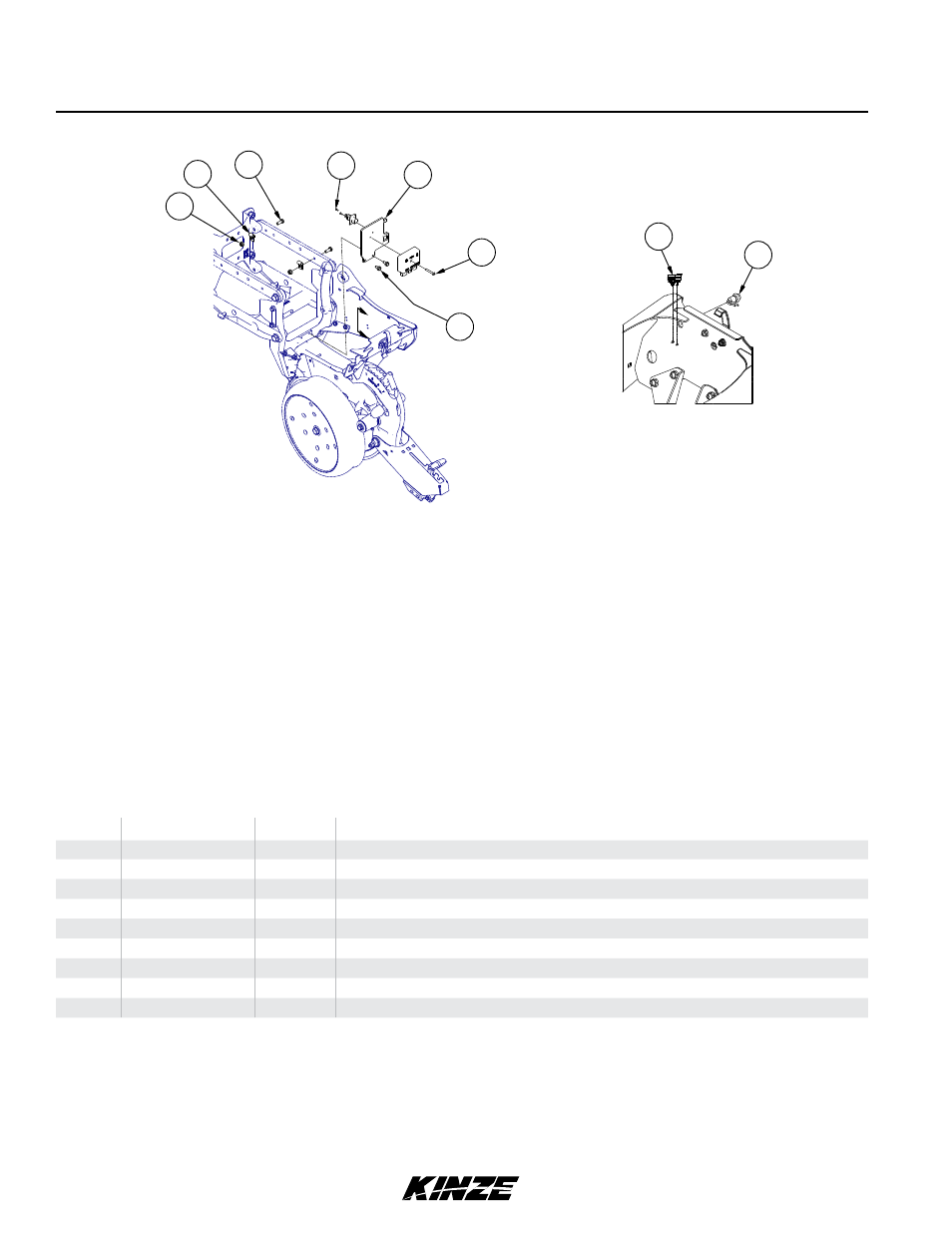

Miscellaneous Electrical Components
ITEM PART NO. QTY. DESCRIPTION
1 G10622 - Serrated Flange Nut, ⅜"-16
2 GD6291 - Insulated Clamp, ⅜"
3 G10001 - Hex Head Cap Screw, ⅜"-16 x 1"
4 G11347 - Phillips Pan Head Machine Screw, No. 6-32 x ⅜", Grade 2
5 G11471 - Phillips Pan Head Machine Screw, ¼"-20 x 1¾"
6 GA18933 - 4-Pin Dust Plug
7 GA15485 1 Manual Run Button
8 GD26505 1 Heat Sink Module Mount Plate
9 G11539 2 Hex Socket Flange Cap Screw, 5/16"-18 x ¾”
View A-A
A
A
1
2
3 4
8
9
5
6
7
View A-A
A
A
1
2
3 4
8
9
5
6
7
