Kinze 4900 Front Folding Planter Rev. 3/14 - Manual (Page 249)

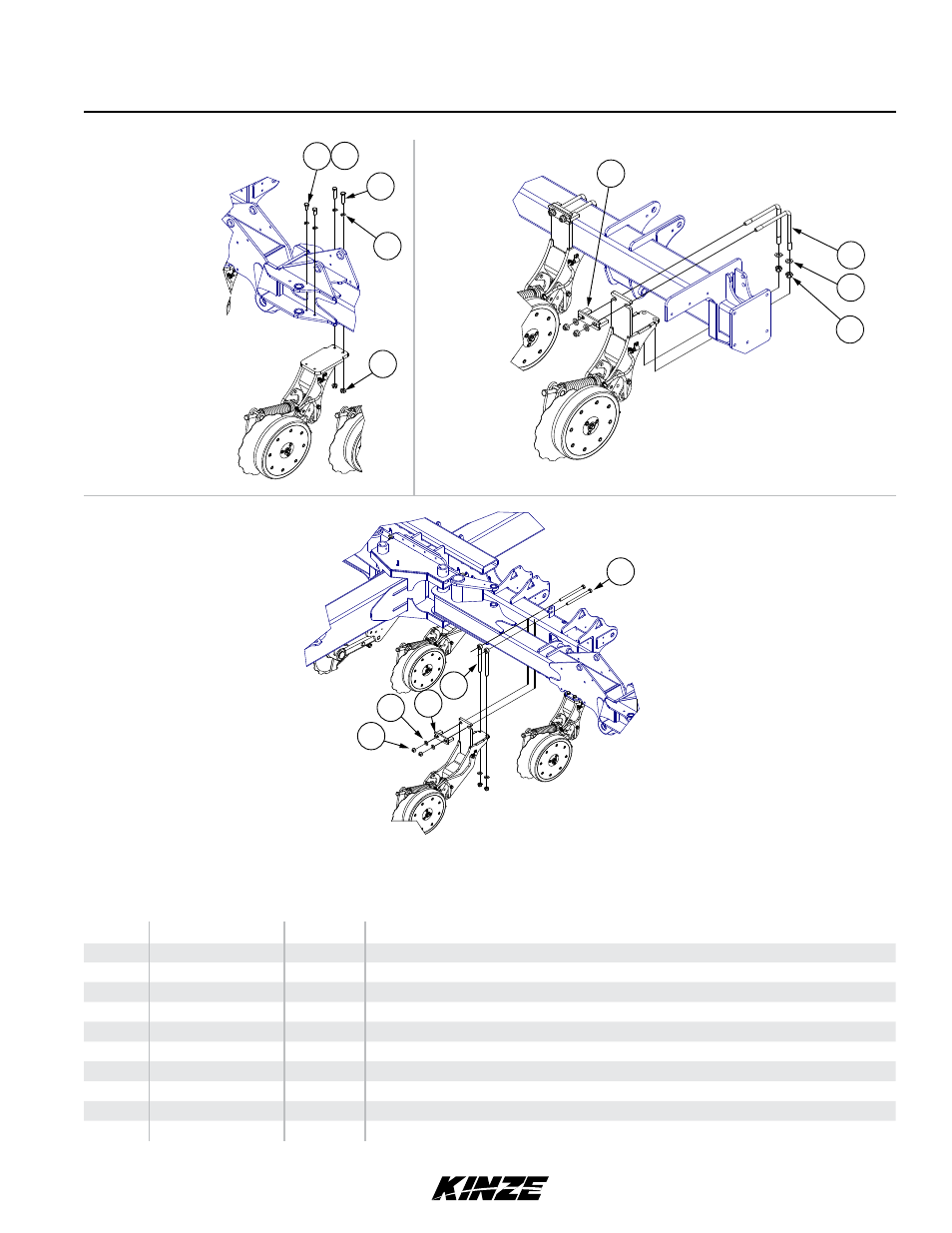

Notched Single Disc Fertilizer Opener
Mounting Hardware
ITEM PART NO. QTY. DESCRIPTION
1 G10055 - Hex Head Cap Screw, ⅝"-11 x 1¼"
2 G10230 - Lock Washer, ⅝"
3 G10009 - Hex Head Cap Screw, ⅝"-11 x 2½"
4 G11415 - Serrated Flange Nut, ⅝"-11
5 GA20263 - Retaining Plate
6 GD29061 - L-Bolt, ¾"-10 Both Ends, 9½" x 9½"
7 G11392 - Flat Washer, ¾" SAE
8 G10112 - Lock Nut, ¾"-10
9 G10477 - Hex Head Cap Screw, ¾"-10 x 10"
10 GD29066 - Eye Bolt, ¾"-10 x 9½"
3
1 2
2
4
9
10
8
7
5
6
7
8
5
(A18240)
Flat Mount
Extended Right Angle
Right Angle Mount
Model 4900 M0247-02
Rev. 2/14 P246
TM
