Kinze 4900 Front Folding Planter Rev. 3/14 - Manual (Page 93)

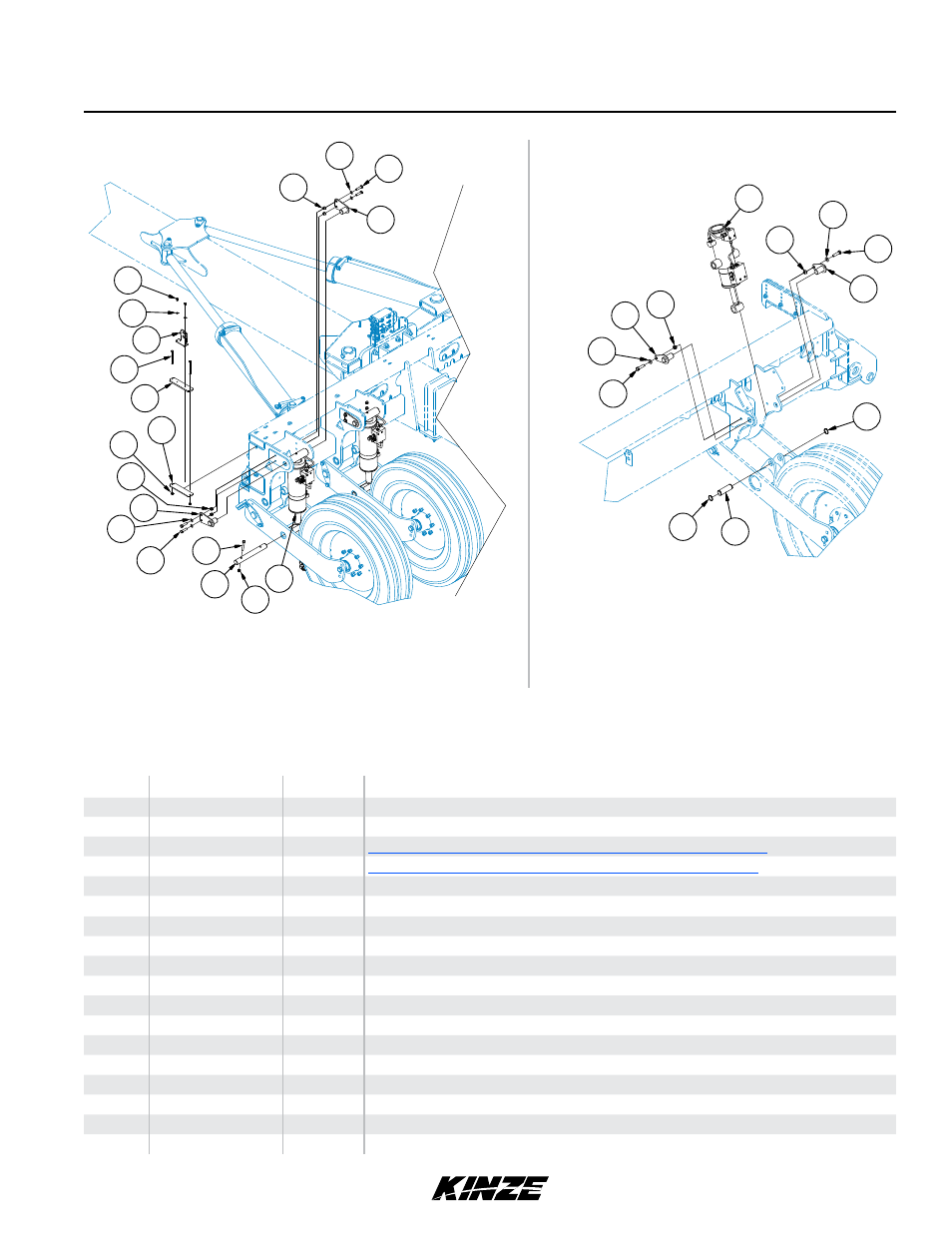

Non-Flip Axle, 24 Row
ITEM PART NO. QTY. DESCRIPTION
1 GA16886 8 Master Cylinder Pin
2 GA16887 8 Slave Cylinder Pin
3 GA17664 4 See “Master Cylinder, 24 Row (Without Flip Axle)” on page P149
4 GA17674 4 See “Slave Cylinder, 24 Row (Without Flip Axle)” on page P141
5 GD21759-10 4 Pin, 1¼" x 3.95"
6 GD27087-01 4 Pin, 1.48" x 12½"
7 G10016 24 Hex Head Cap Screw, ½"-13 x 2"
8 G10111 28 Lock Nut, ½"-13
9 G11593 8 External Spiral Retaining Ring, 1¼"
10 G11389 24 Flat Washer, ½" Plated SAE
11 G10585 4 Hex Head Cap Screw, ½"-13 x 3¼"
12 GD27429 2 Line Support Bracket
13 G11387 8 Flat Washer, ⅜" SAE
14 G10034 4 Hex Head Cap Screw, ⅜"-16 x ½"
15 G10753 4 Hex Head Cap Screw, ⅜"-16 x 4½"
16 GD26948 2 Top Flow Divider Mount Plate, ⅜" Thick
17 G10108 4 Lock Nut, ⅜"-16
18 GD26949 2 Top Flow Divider Mount Plate, ¼" Thick
7
10
1
8
3
8
6
11
7
10
1
8
9
5
9
4
7
10
2
8
7
10
2
8
17
18
16
15
12
13
14
Transport Tires Wing Wheels
(A18221)
Model 4900 M0247-02
Rev. 2/14 P90
