P114 – Kinze 4900 Front Folding Planter Rev. 3/14 User Manual
Page 117
(IP1458)
ITEM
PART NO.
QTY.
DESCRIPTION
1
GA17762
1
Rim, 5½" x 22½", Grey
2
GD15406
1
Tire, 41 x 11 R22.5" W/O Center Rib (Specify Brand*)
3
GA7434
1
Valve Stem
4
GR1912
8
Lug Nut, ⅝"-18, Grade 5
5
GA18902
G10913
1
Spindle W/Retaining Ring, 1¾"
External Retaining Ring, 2½"
6
GA4722
2
Seal
7
GA4723
2
Bearing
8
GA4729
G10640
GD7079
GR0528
GR0531
1
-
2
-
-
Hub W/Cups, Bolts, Nuts And Grease Fitting, 8 Bolt, 1¾" Bore
Grease Fitting, ¼"-28
Cup
Stud, ⅝"-18 x 2¼", Grade 8
Lug Nut, ⅝"-18 UNF
9
GD7864
1
Special Hex Nut, 1¾"-12 UNF
10
GD7089
1
Special Nut, 1¾"-12 UNF
A
GA17765
-
Tire and Rim Assembly (Items 1-3)
B
GA18901
-
Hub and Spindle Assembly (Items 5-10)
*Specific brand requests will be supplied only as available from current Kinze Repair Parts stock. If a specific brand
requested is not in stock, the brand available will be supplied.

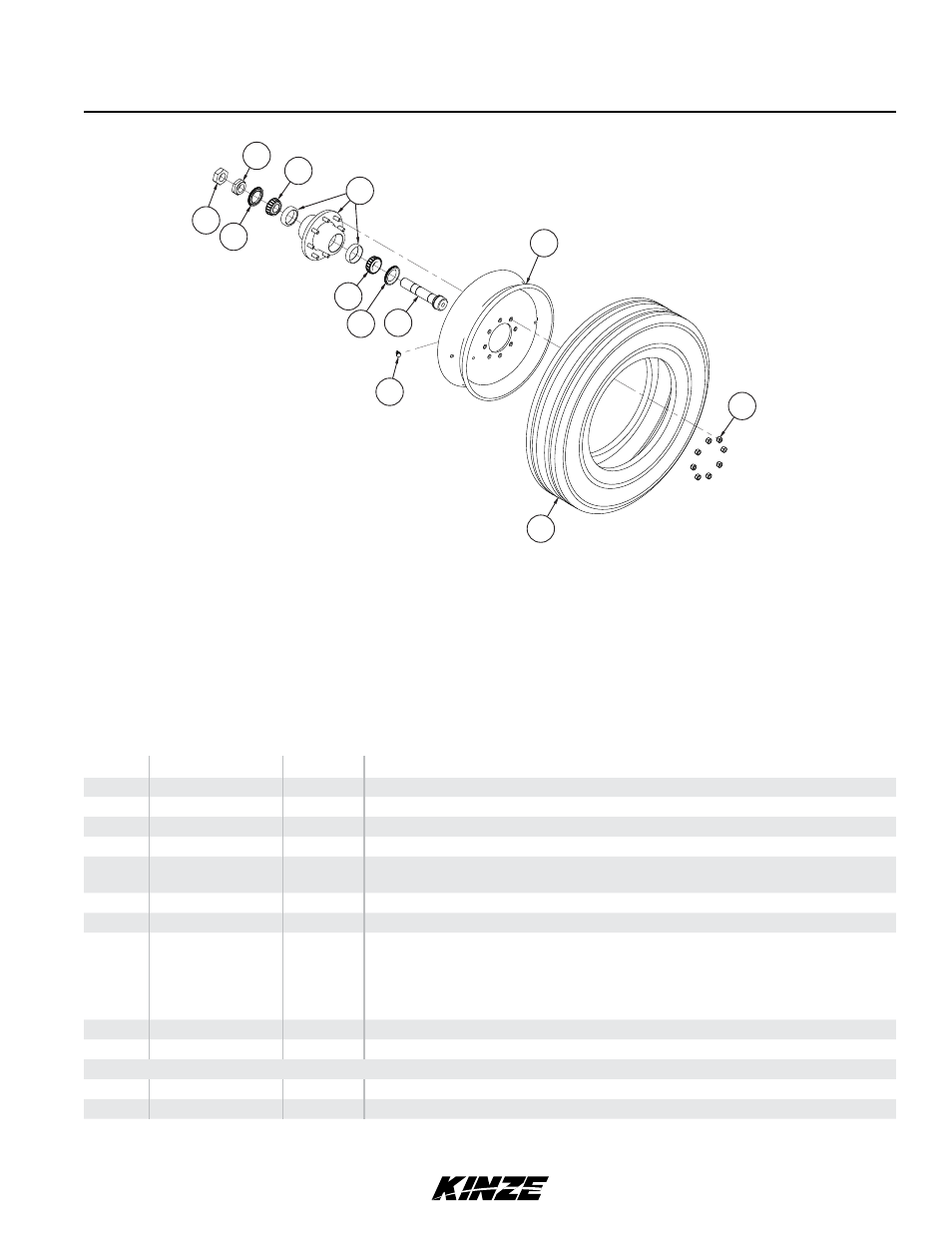

H-Frame Wheel and Hub Assembly, 16 Row and 24 Row
Wing Wheel and Hub Assembly, 24 Row
2
4
1
3
5
6
7
8
6
9
10
7
Model 4900
M0247-02
Rev. 11/13
P114
