Kinze 4900 Front Folding Planter Rev. 3/14 - Manual (Page 156)

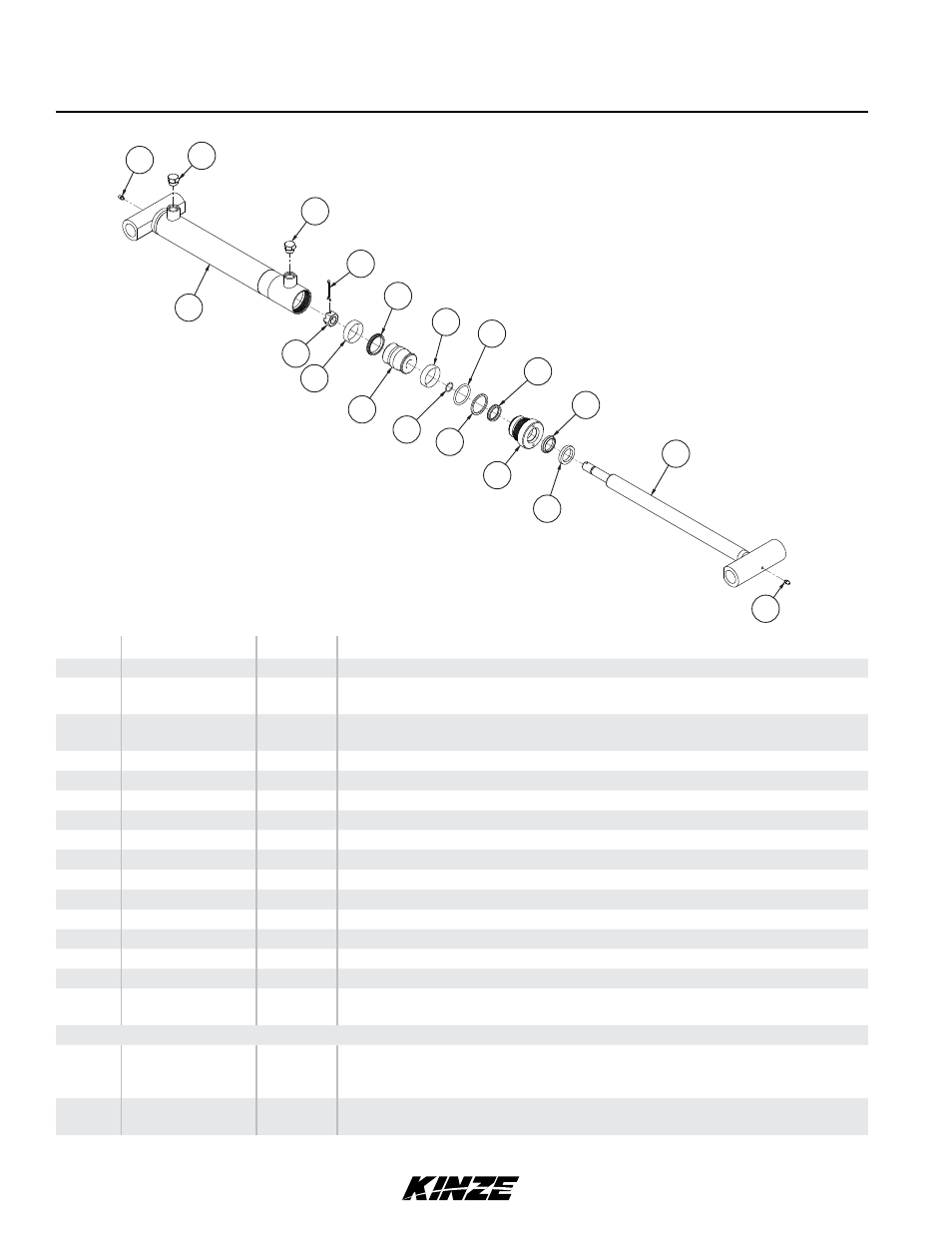

Wing Down Pressure Cylinder
16
1
15
13
14
12
11
10
6
9
8
7
6
4
5
2
3
2
1
ITEM PART NO. QTY. DESCRIPTION
1 G10640 2 Grease Fitting, ¼"-28
2 G6408-08
GR1037 2
-
Plug W/O-Ring, ¾"-16 O-Ring
O-Ring
3 A17326
A17348 1
-
Barrel (Non-Stock Item), 12 Row and 16 Row
Barrel (Non-Stock Item), 24 row
4 G10723 1 Hex Nut, ¾"-16, Grade 2
5 G10827 1 Cotter Pin, ⅛" x 1¾"
6 GD12150 2 Wear Ring
7 GD12277 1 T-Seal
8 GD17078 1 Piston
9 GD12237 1 O-Ring, No. 018
10 GD12235 1 O-Ring, No. 326
11 GD12236 1 Back-Up Ring
12 GD12251 1 U-Cup
13 GD17080 1 Gland
14 GD12210 1 Wiper
15 GD12102 1 Ring
16 GA17328
GA17350 1
-
Rod, 12 Row and 16 Row
Rod, 24 Row
A GA17325
GA17347
-
-
Hydraulic Cylinder Complete, 2" x 12.13" (Part Number Stamped on Barrel)
12 Row and 16 Row
Hydraulic Cylinder Complete, 2" x 20" (Part Number Stamped on Barrel) 24 Row
B GR2112 - Seal Kit, Includes, (1)Wear Ring, (2)O-Ring, (1)T-Seal, (1)BU Ring, (1)U-Cup,
(1)Wiper
*Item is part of seal kit, item can not be purchased individaully.
TM
M0247-02 Model 4900
P153 Rev. 11/13
