ITEM PART NO. QTY. DESCRIPTION
1 GB0673
GD24879-01 1
1 ASD Tank Lid
Rope Tether, 36"
2 GD24753 4 Hex Socket Head Machine Screw, ¼"-20 x 1½", Grade 2
3 GD24754 4 Foam Seal
4 GD24385-01 1 Ribbon Sealer, 66½"
5 GA16997 1 Bulkfill Lid Seal
6 GD24563
GD24564 1
-
40 Bushel Bulk Fill Tank, 12 Row
55 Bushel Bulk Fill Tank, 16 Row and 24 Row
7 GA17032
GA17033 1
-
40 Bushel Bulk Fill Cradle, 12 Row
55 Bushel Bulk Fill Cradle, 16 Row and 24 Row
8 G10045 2 Hex Head Cap Screw, ½"-13 x 4½"
9 G11389 8 Flat Washer, ½" Plated SAE
10 GD24695 2 Rear Tank Clip
11 G10974 4 Lock Nut W/Nylon Insert, ½"-13
12 G10001 2 Hex Head Cap Screw, ⅜"-16 x 1"
13 G10201 2 Special Washer, ⅜" x 1½" O.D.
14 GD20037 1 Pin, 1" x 5⅜"
15 GA14040
GA17034 1
-
Rear Tank Mount, 12 Row
Rear Tank Mount, 16 Row and 24 Row
16 G10033 2 Hex Head Cap Screw, ½"-13 x 3½"
17 GD24693 2 Side Tank Clip
18 G11519 2 Hex Head Cap Screw, ½"-13 x 1¾"
19 G10071 2 Serrated Flange Nut, ½"-13
20 GD4887-27 2 Sleeve, 1" O.D. x .562 I.D. x 2"
21 G10112 4 Lock Nut, ¾"-10
22 G11392 4 Flat Washer, ¾" SAE
23 G10477 4 Hex Head Cap Screw, ¾"-10 x 10"
24 G11108 4 Lock Nut, 1"-14
25 GD27165 4 Eye Bolt, 1"-14 x 6"
26 GD25235
GD25499
G10112 2
2
4 U-Bolt, 8" x 12" x ¾"-10, 12 Row and 16 Row
U-Bolt, 8" x 16" x ¾"-10, 24 Row
Lock Nut, ¾"-10

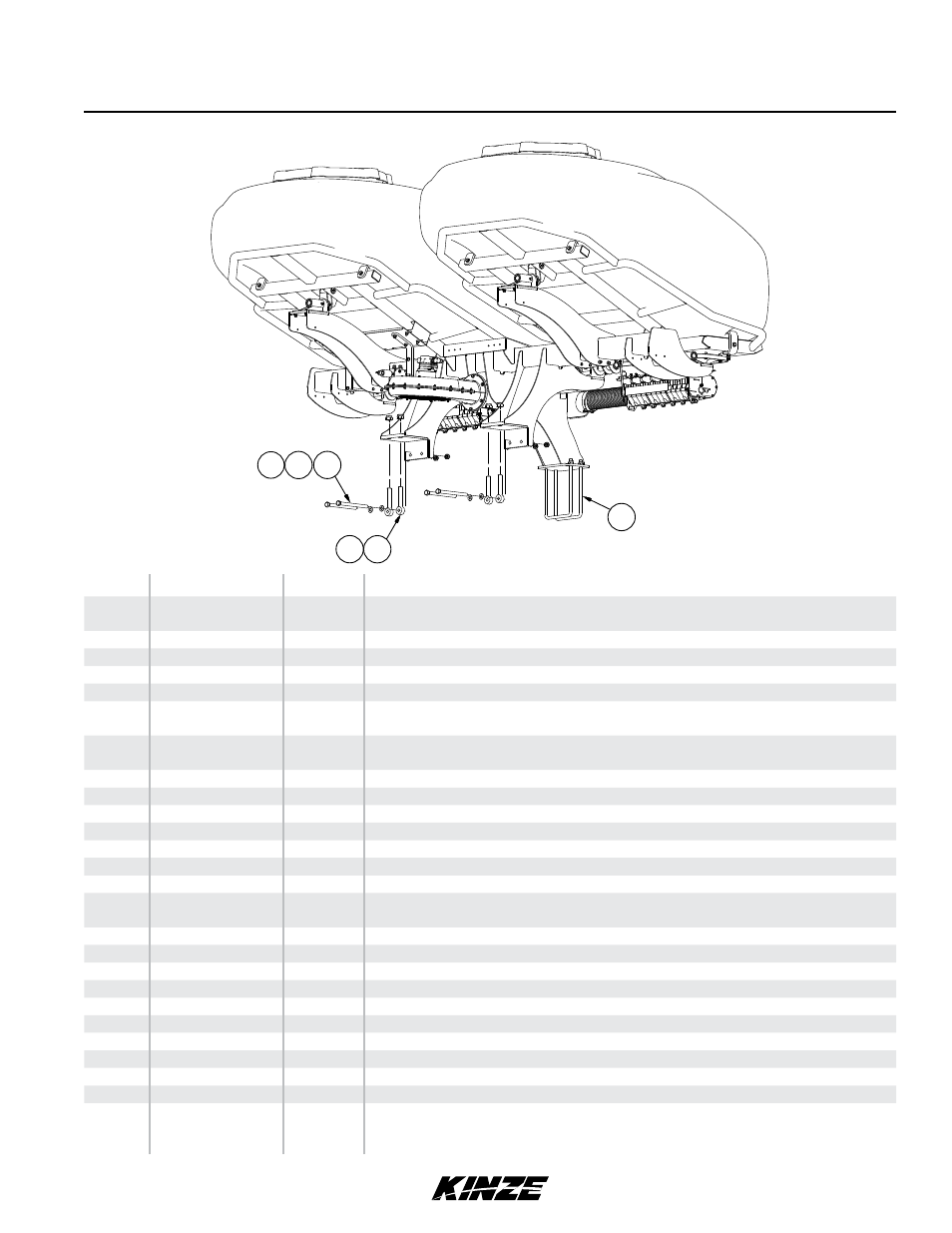

Bulk Fill Tank Assembly
23 22 21
25
26
24
Model 4900 M0247-02
Rev. 11/13 P50
