Kinze 4900 Front Folding Planter Rev. 3/14 - Manual (Page 104)

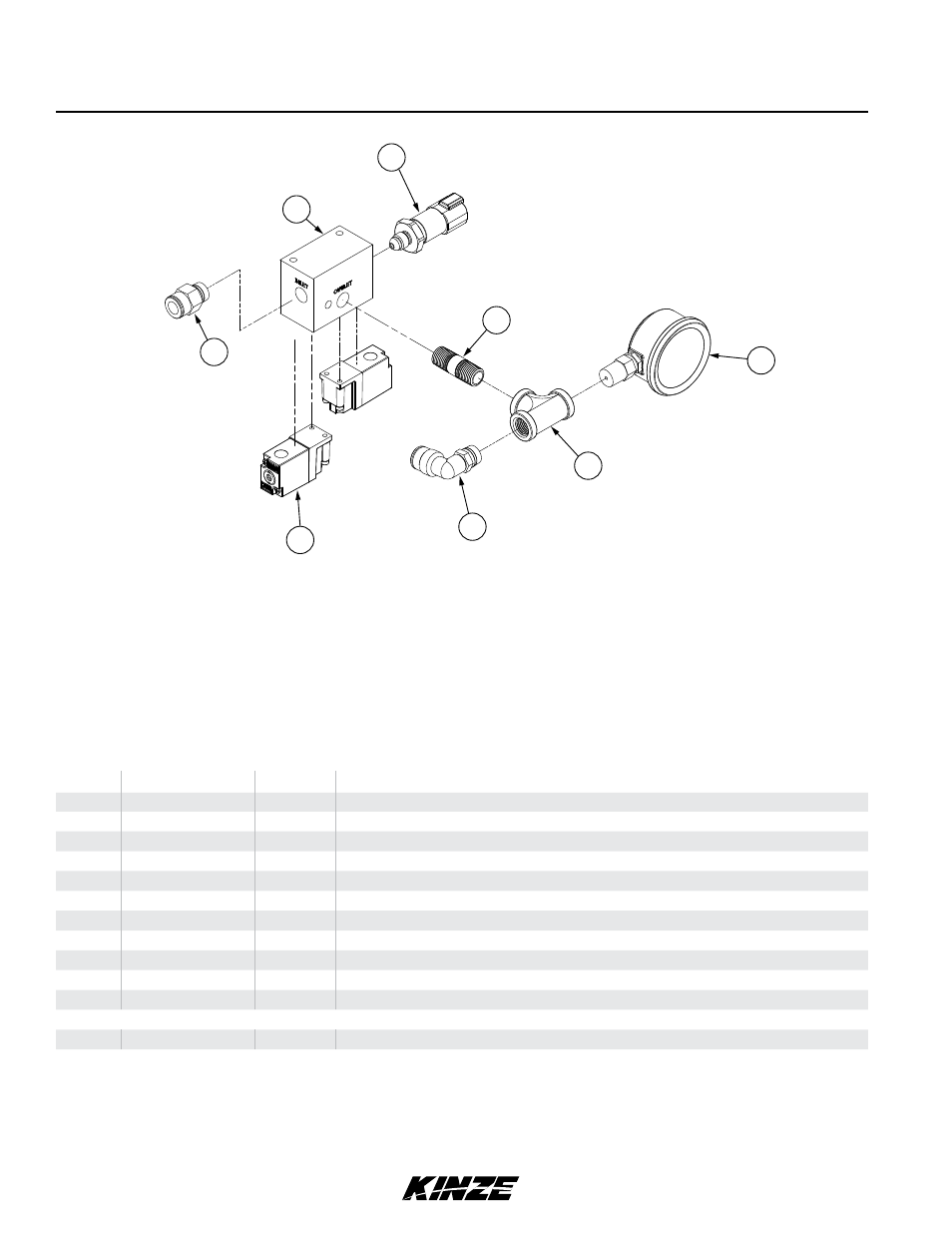

Air Valve Assembly
ITEM PART NO. QTY. DESCRIPTION
1 GD25638 1 DF Block
2 GD17141 1 Connector, ¼" Male NPT
3 GA14804 1 Pressure Sensor (0-120 PSI)
4 GA14924 2 24 VDC Air Valve
5 GD11079 1 3 Pin Receptacle, Black
6 GD12557 3 Male 20-18 AWG Terminal Pin
7 GD12558 3 Cable Seal, 18-16 AWG
8 GA12104 1 Pressure Gauge, ¼" NPT
9 GD19238 1 Nipple, ¼" NPT
10 GD17143 1 Swivel Elbow, ¼" NPT x ⅜"
11 GD19237 1 Tee, ¼" NPT
A GA17549 - 24 VDC Air Valve Complete (Items 1-12)
(A17549)
4
1
2
8
3
9
11
10
TM
M0247-02 Model 4900
P101 Rev. 2/14
