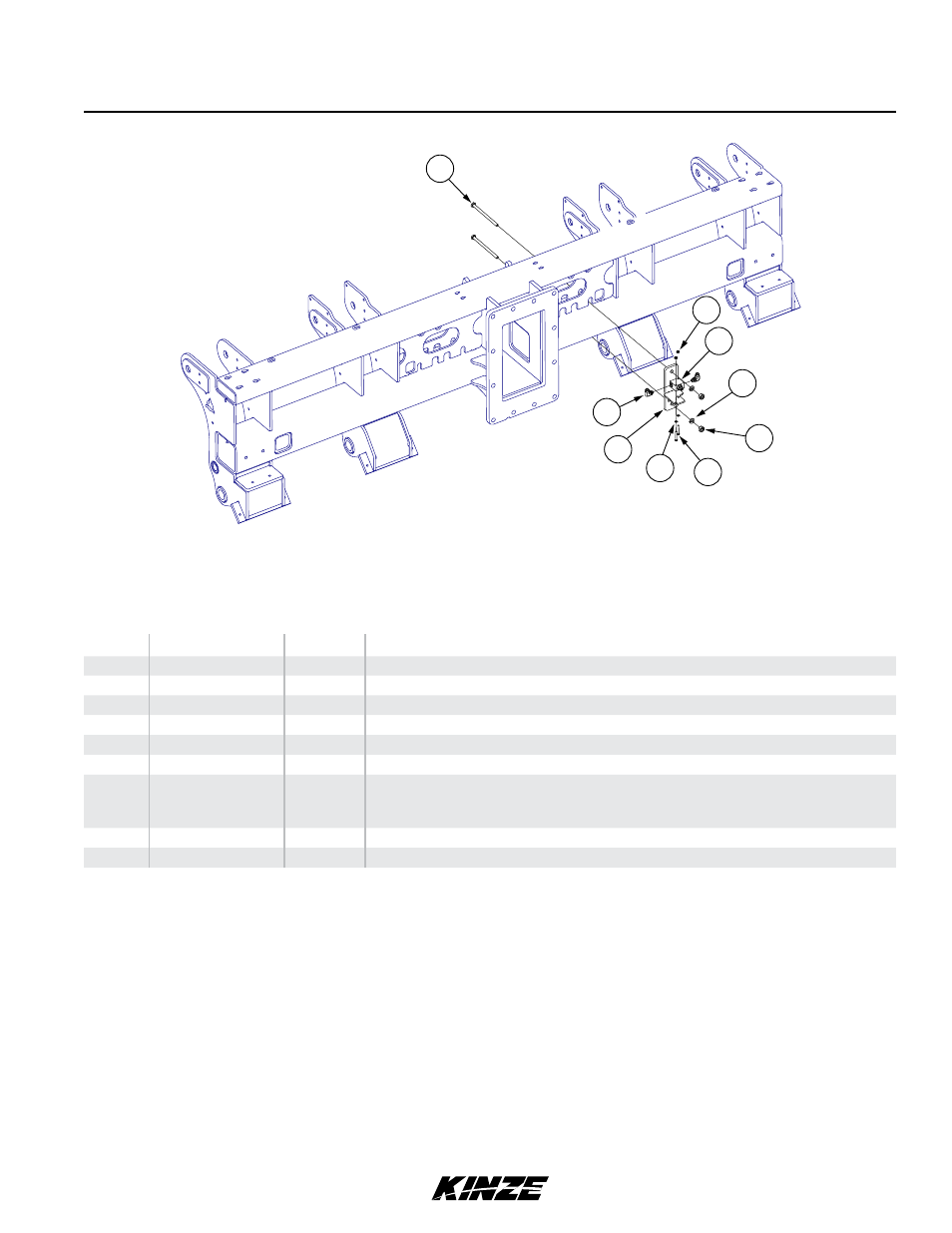

Kinze 4900 Front Folding Planter Rev. 3/14 - Manual (Page 183)

Plunger Valve
7
6
3
1
5
4
8
9
2
ITEM PART NO. QTY. DESCRIPTION
1 GA19823 1 Bracket
2 GA15784 1 Plunger Valve
3 G6801-08-06 2 Elbow W/O-Ring, 90°, ¾"-16 Male JIC To 9/16"-18 O-Ring
4 G10638 2 Hex Head Cap Screw, ¼"-20 x 2"
5 G11385 2 Flat Washer, ¼" SAE
6 G10621 2 Serrated Flange Nut, ¼"-20
7 G10152
G10230
G10104 2
2
2 Hex Head Cap Screw, ⅝"-11 x 9"
Lock Washer, ⅝"
Hex Nut, ⅝"-11
8 G10230 2 Lock Washer, ⅝"
9 G10104 2 Hex Nut, ⅝"-11
Model 4900 M0247-02
Rev. 11/13 P180
