Kinze 4900 Front Folding Planter Rev. 3/14 - Manual (Page 112)

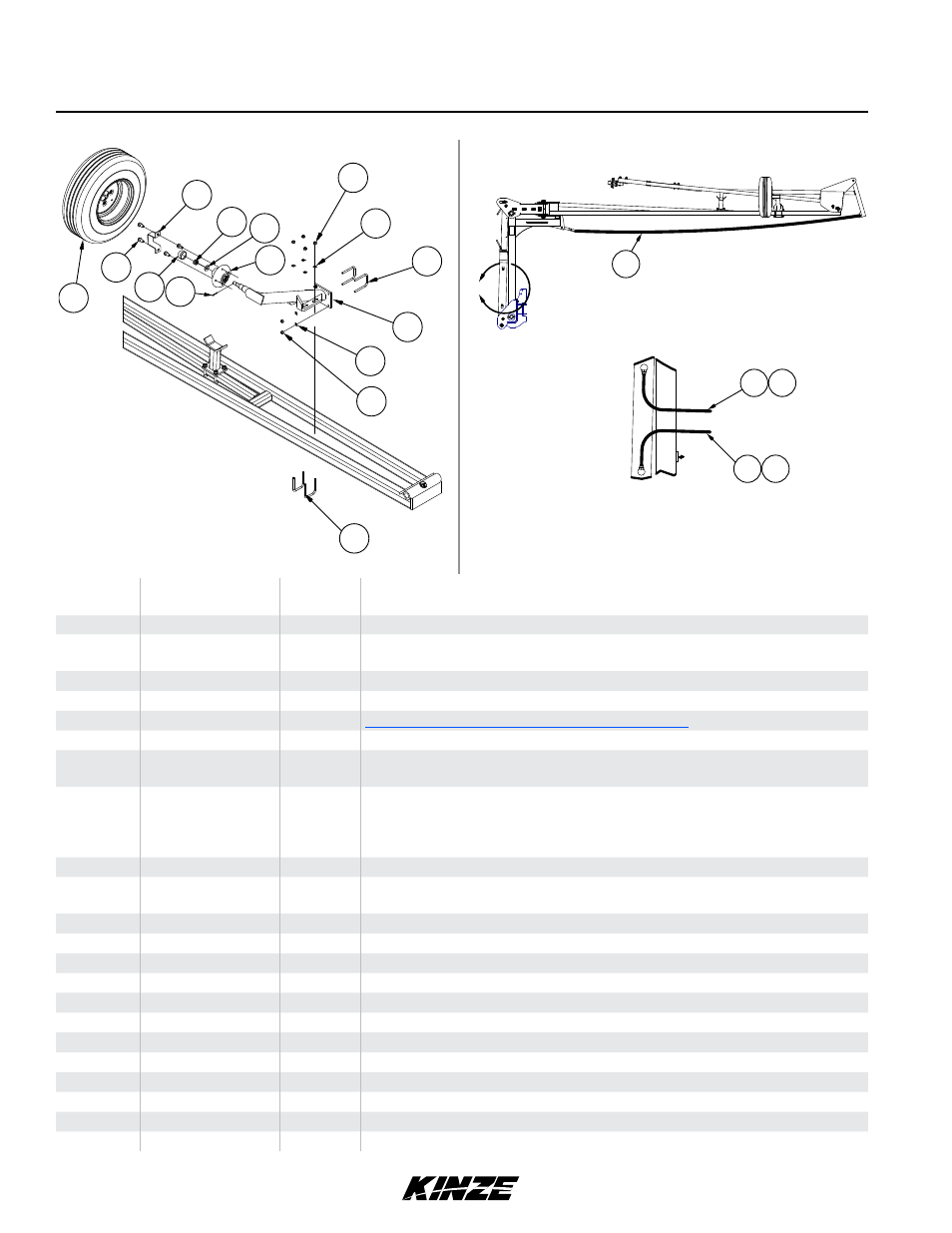

Row Marker Assembly, 24 Row
(A17733a)
Detail B
Detail A
44
20
21
19
7
21
20
19
47 37
47 37
B
8
60
54
55 56
57
59 58
ITEM PART NO. QTY.
(Per Assy.)
DESCRIPTION
1 GA18057 1 First Stage
2 GA17729
GA17728 1
-
L.H. Second Stage Marker
R.H. Second Stage Marker
3 GA17732 1 Third Stage Marker
4 GD0453-07 1 Extension Tube, 45"
5 GA13719 1 See “Row Marker Spindle/Hub/Blade” on page P111
6 GA9101 1 Stop Weld
7 GA0160L
GA0160R 1
-
Support, L.H.
Support, R.H.
8 GA17767
GD15489
GA10458
GA17768 1
-
-
-
Tire and Rim Assembly
Tire, 20.5 x 8.0-10 (Specify Brand*)
Valve Stem
Rim, Grey
9 GA13485 1 Control Arm
10 GA18884
G10874 1
-
Cylinder Lock-up Assembly
Detent Pin, ½" x 3½" Grip
11 GD25860 1 Marker Pin, 1¼" x 8⅞"
12 G10640 1 Grease Fitting, ¼"-28
13 G11400 2 Retaining Ring, 1¼"
14 GD25859 1 Pivot Shaft, 2⅛" x 9¾"
15 G10461 4 Cotter Pin, ⅜" x 3"
16 GD25969 1 Pivot Shaft, 2⅛" x 14¼"
17 GD0652 1 Pin, 1¼" x 9½"
18 G10168 2 Machine Bushing, ½", 7 Gauge (.1793")
19 GD19212 4 U-Bolt, 2½" x ⅜"-16
20 G10108 8 Lock Nut, ⅜"-16
21 G11387 8 Flat Washer, ⅜" SAE
22 GD2721 4 U-Bolt, 2" x 2" x ½"-13
