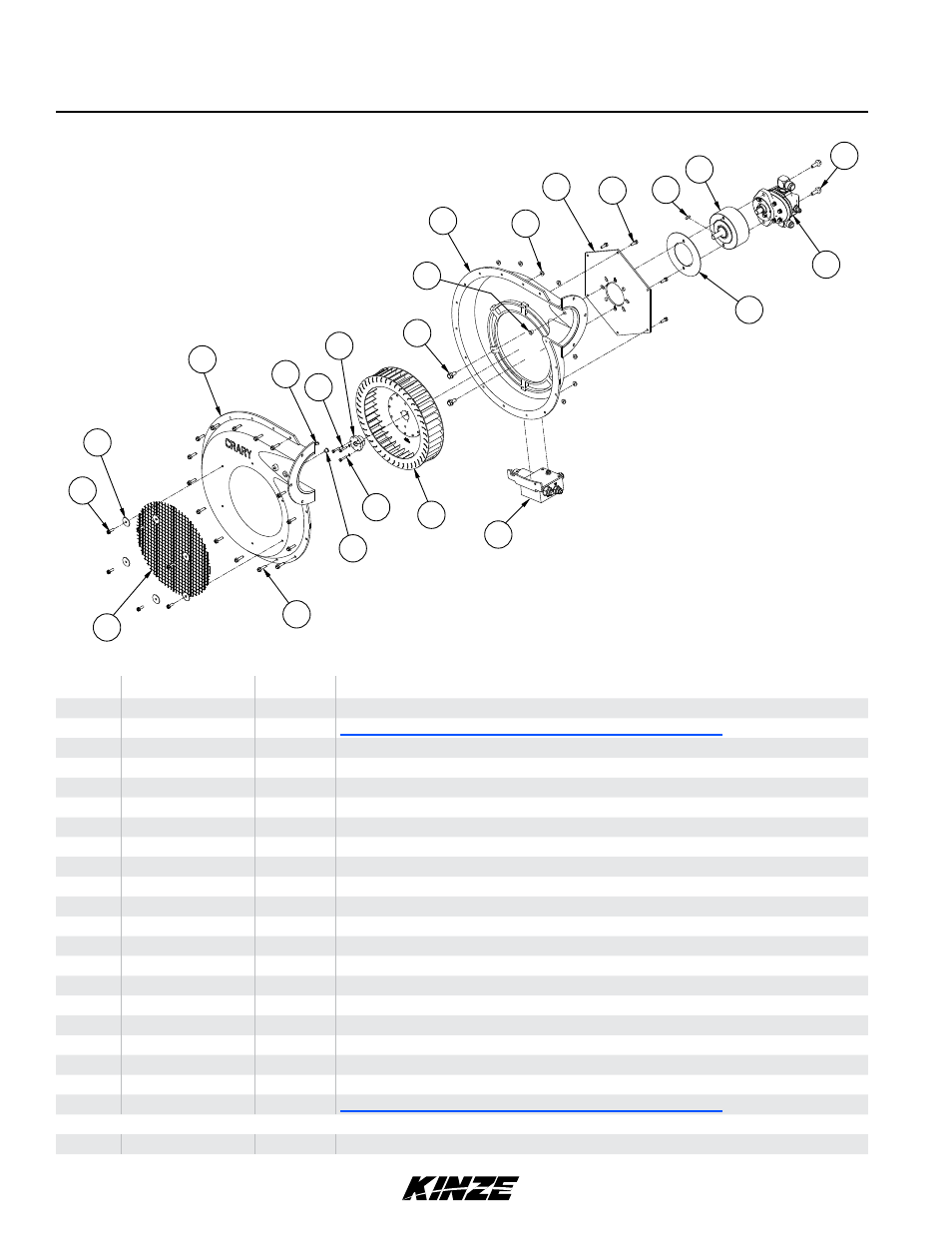

Air Seed Delivery Fan Assembly
ITEM PART NO. QTY. DESCRIPTION
1 G11124 2 Hex Serrated Flange Cap Screw, ⅜"-16 x 1"
2 --- - See “Air Seed Delivery Hydraulic Components” on page P160
3 GA15452 1 Overhund Load Adapter
4 GD21300 1 Key
5 GD25644 1 Cover Plate
6 GR1976 12 Hex Flange Self Tapping Screw, ¼" x ¾"
7 GR1969 1 Backing Plate
8 G10621 15 Serrated Flange Nut, ¼"-20
9 GR1971 1 Flanged Inner Case
10 GR1979 2 Plastic Plug, 7/16"
11 GR2109 1 Impeller
12 GR1978 1 Plastic Plug, ¼"
13 GR1970 1 Flanged Outer Case
14 G11409 15 Hex Serrated Flanged Cap Screw, ¼"-20 x 1"
15 GR1967 1 Screen
16 GR1977 6 Fender Washer, ¼"
17 GR1961 1 Bushing, ⅝"
18 G11518 3 Hex Head Machine Screw, #10-24 x 1"
19 G10257 3 Lock Washer, No. 10
20 G11123 2 Hex Serrated Flange Cap Screw, ⅜"-16 x ¾"
21 --- - See “Air Seed Delivery Hydraulic Components” on page P160
A GA14573 - ASD Fan (Flanged) (Includes Items 6-16)
(IP1441)
1
3
4 6
7
8 9
20
11
17
19
18
13
14
6
16
15
10
10
12
2
5
21
TM
M0247-02 Model 4900
P45 Rev. 11/13
