Fertilizer electrical schematic – Kinze 4900 Front Folding Planter Rev. 3/14 User Manual
Page 196
ITEM
PART NO.
QTY.
DESCRIPTION
1
GA19427
-
Row Module
2
GA19407
-
Row Module Breakout Cable
3
GA14808
-
See “Fertilizer Shut Off” on page P248
4
GA14812
-
Flow Switch
5
GA19400
-
Fertilizer Option Cable

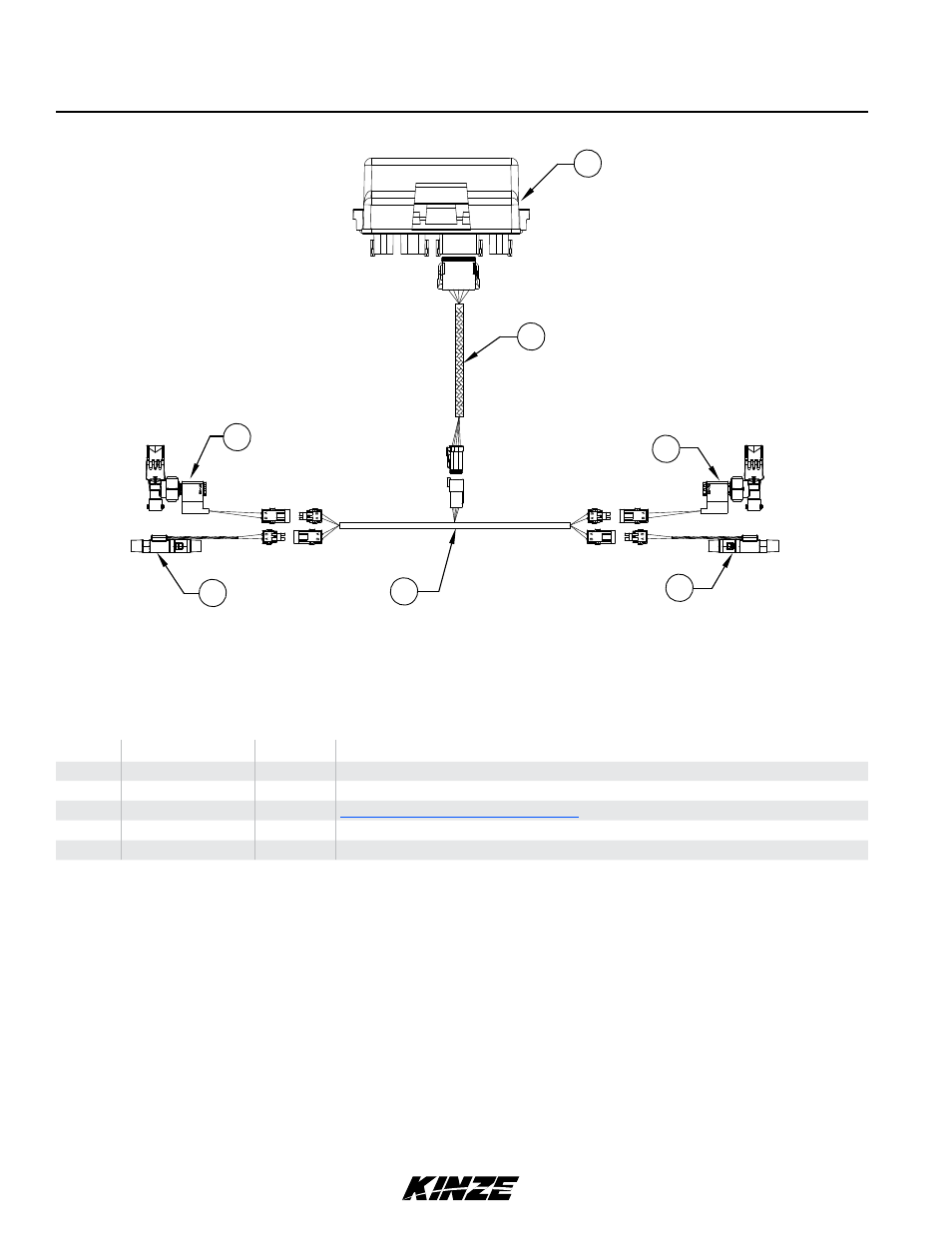

Fertilizer Electrical Schematic
FERTILIZER
DOWN FORCE
TEMPERATURE SENSOR
1
3
4
5
2
1
3
4
2
6
7
1
2
3
4
5
TM
M0247-02
Model 4900
P193
Rev. 11/13
