Kinze 4900 Front Folding Planter Rev. 3/14 - Manual (Page 229)

ITEM PART NO. QTY. DESCRIPTION
1 GA18881
GA18876
GA18874 1
-
-
Center Drive Mount, 12 Row
Center Drive Mount, 16 Row
Center Drive Mount, 24 Row
2 --- - See "Contact Tire Assembly" on page P227
3 GA5113 1 Sprocket, 28 Tooth
4 GA2068 2 Spring W/Plug
5 GB0218 2 Bushing, 21/32" I.D. x ⅞" O.D. x 19/32" Long
6 G11391 2 Flat Washer, ⅝" SAE
7 G10107 2 Lock Nut, 5⅝"-11
8 G10006 1 Hex Head Cap Screw, ⅝"-11 x 2¼"
9 G10235 6 Machine Bushing, ⅞", 14 Gauge (.0747") (As Required)
10 G10862 1 Hex Head Cap Screw, ⅝"-11 x 3¼"

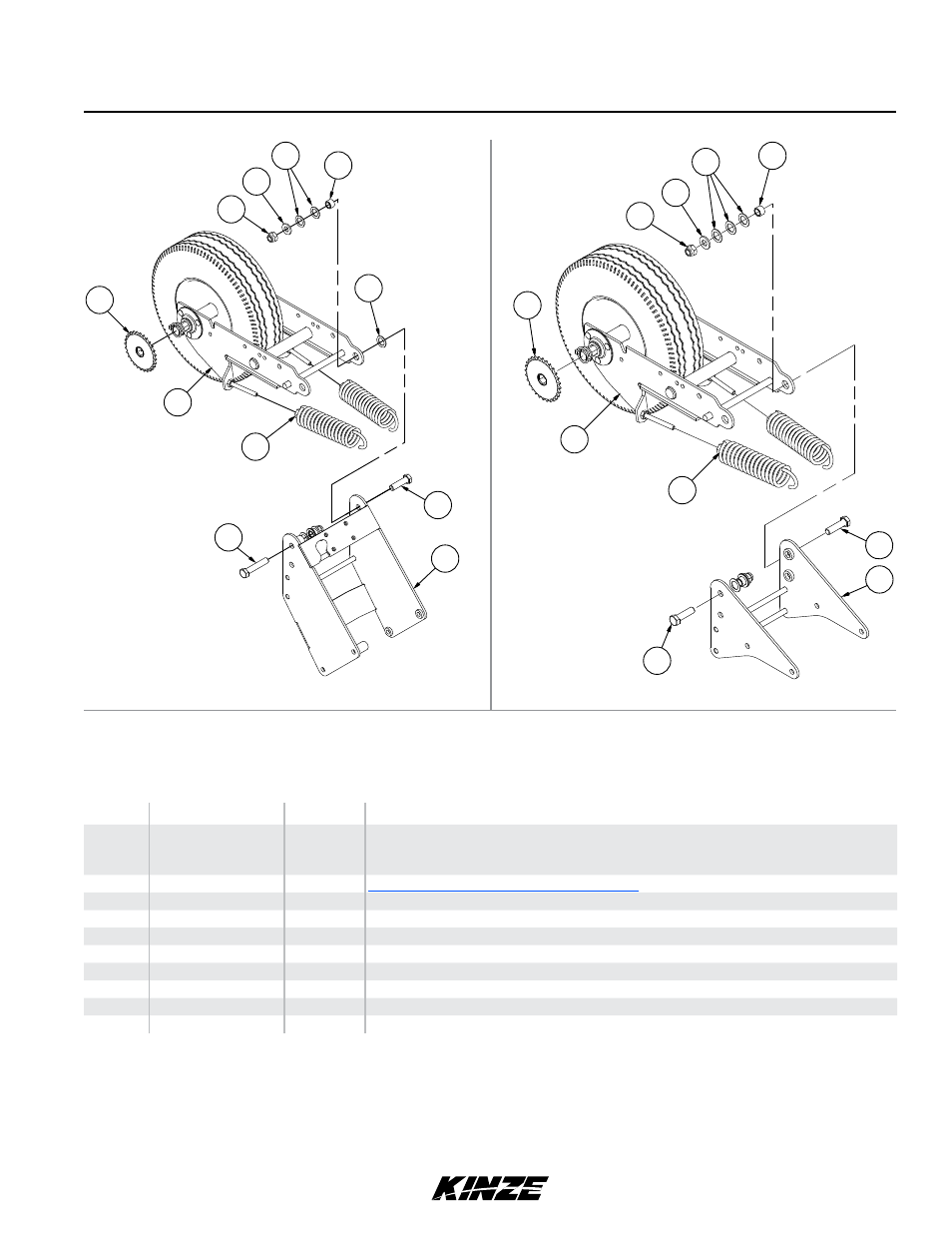

Center Ground Drive Assembly
12 Row and 16 Row 24 Row
4
1
3
8
10
2
5
6
7
9
9
1
8
8
4
3
5
9
6
7
2
(A18880/A18877)
Model 4900 M0247-02
Rev. 11/13 P226
