ITEM PART NO. QTY. DESCRIPTION
1 A8836 1 Barrel (Non-Stock Item)
2 GD14529 1 Rod
3 *D10207 1 Gland
4 GD11983 1 Piston
5 GD27234 1 Nylon Lock Nut, ⅞"-14, Grade 8
6 G6408-04
GR1465 1
-
Plug W/O-Ring, 7/16"-20 O-Ring
O-Ring
7 G6408-08
GR1037 1
-
Plug W/O-Ring, ¾"-16 O-Ring
O-Ring
8 *D12210 1 Wiper
9 *D12251 1 U-Cup
10 GD12212 1 O-Ring, No. 330
11 *D12213 1 BU Ring
12 *D12214 1 O-Ring, No. 118
13 *D12012 1 Piston Ring, 2½"
14 *D12275 1 T-Seal, 2½"
15 G10827 1 Cotter Pin, ⅛" x 1¾"
16 GD12102 1 Ring, 1¼"
17 GD23002 1 Locking Device
18 GD14308 1 Threaded Sleeve End
20 G10640 2 Grease Fitting, ¼"-28
21 G10324 1 Hex Jam Nut, 1"-14, Grade 2
22 GD0752-07 1 Sleeve, 2" O.D. x 1.265 I.D. x 1¼"
A GA18514 - Hydraulic Cylinder, 2½" x 1813/16" (Part Number Stamped on Barrel)
B GR1521 1 Seal Kit, Includes: (1) T-Seal, (2) O-Rings, (1) BU Ring, (1) Cast Iron Ring, (1) Wiper,
(1) U-Cup
*Item is part of seal kit, item can not be purchased individaully.

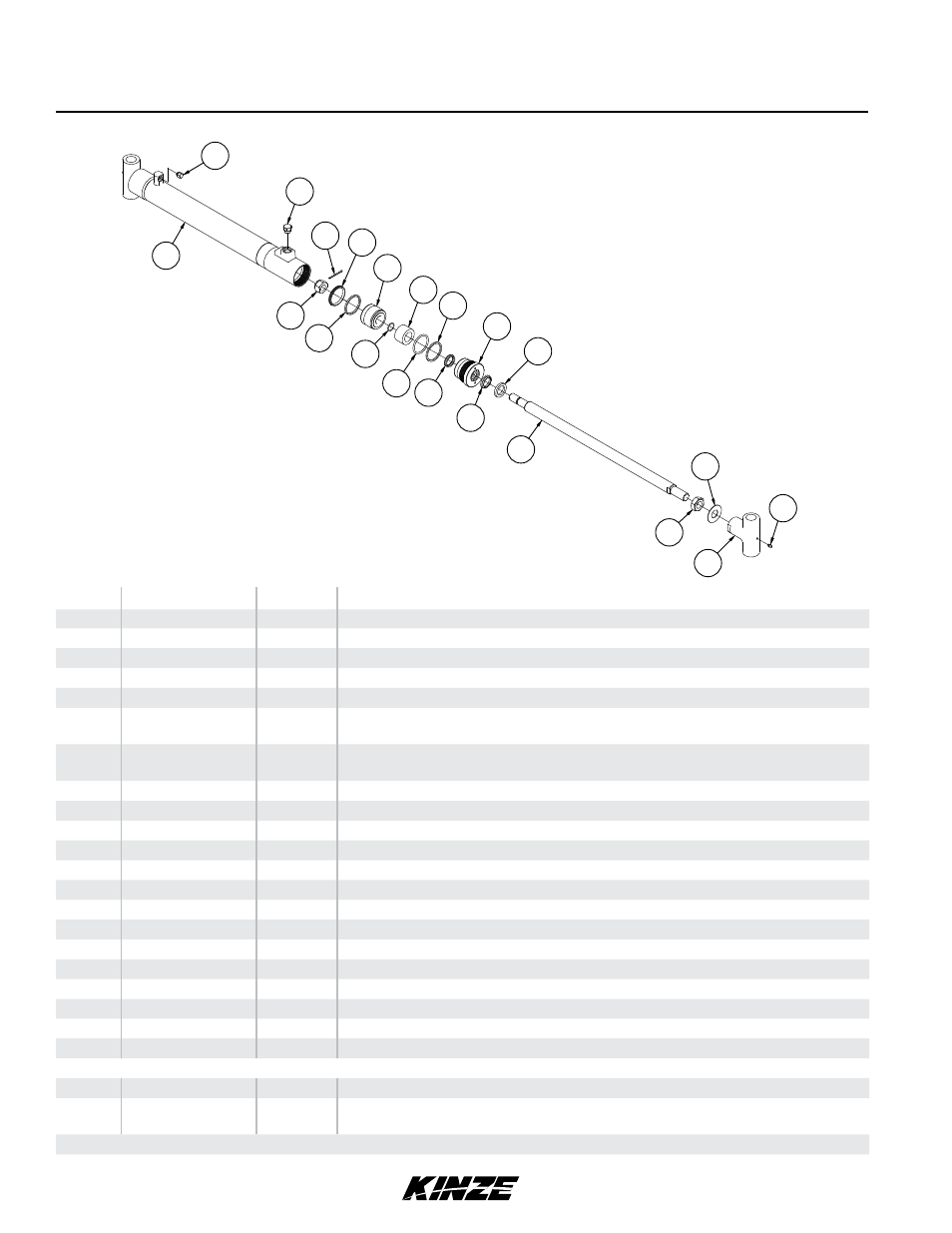

Row Marker Cylinder, 12 Row
1
6
7
15
5
13
14
4
22
12
10
11
9
3
16
8
2
21
17
18
20
(IP1488)
TM
M0247-02 Model 4900
P129 Rev. 2/14
