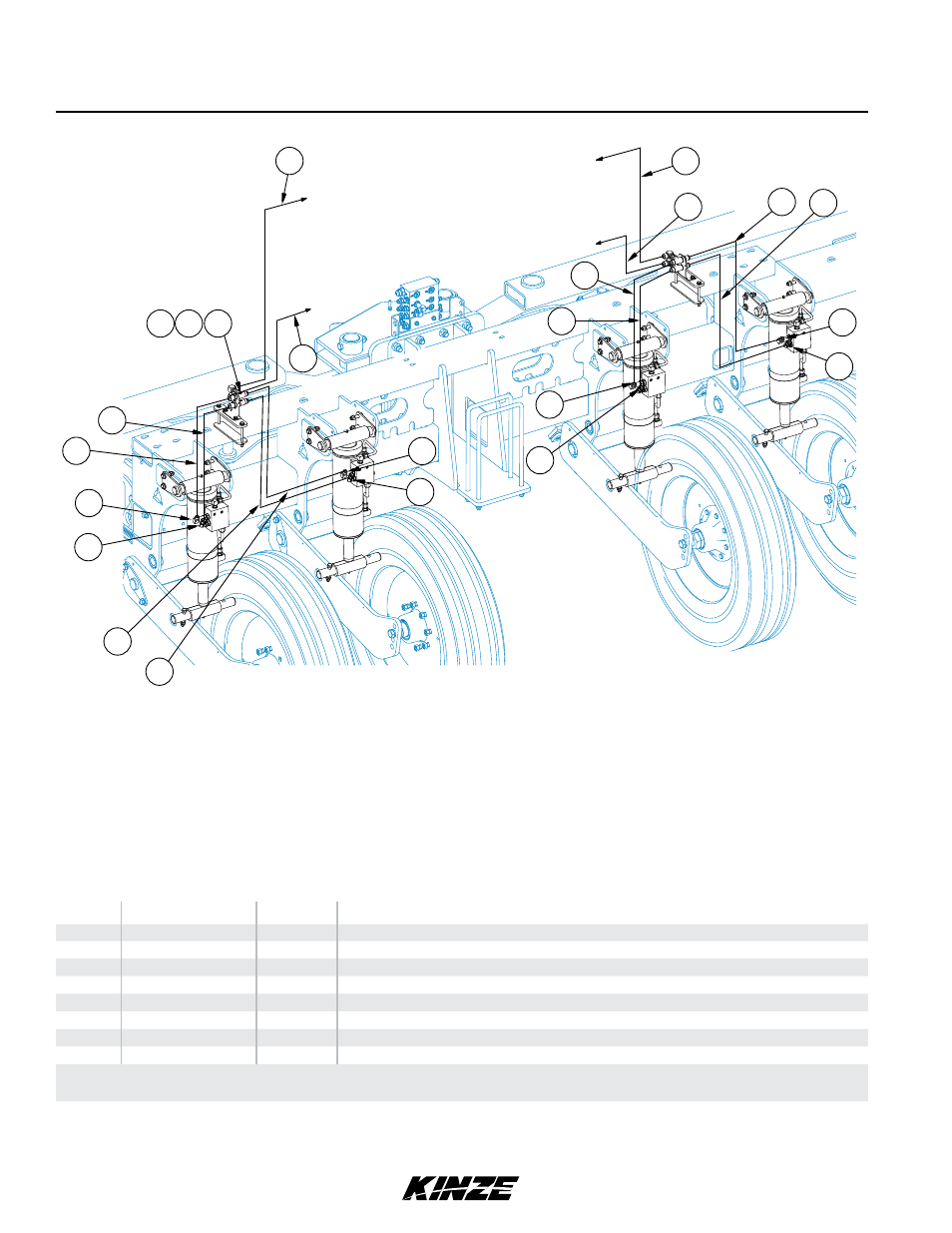

Non-Flip Axle Hydraulic Schematic
To E1 Lift
Valve Block
To E1 Lift
Valve Block
To E3 Lift
Valve Block
To E3 Lift Valve Block
1
1
5
6
7
8
7
8
5
6
1
1
6
1
7
8
8
7
6
5
4
3
2
(A18221a)
ITEM
PART NO.
QTY.
DESCRIPTION
1
*A1420
4
Hose Assembly, ½" x 48"
2
G306-10
4
Lock Nut, ⅞"-14
3
G6500-10
4
Swivel Elbow, 90°, ⅞"-14 Male JIC To Female
4
G2704-10
4
Tee, ⅞"-14 JIC
5
*A12759
4
Hose Assembly, ½" x 36"
6
*A12782
4
Hose Assembly, ½" x 36"
7
G6801-LL-08
4
X-Long Elbow W/O-Ring, 90°, ¾"-16 Male JIC To O-Ring
8
G6809-08
4
90° Adjustable Elbow W/O-Ring, ¾"-16 F JIC x ¾"-16
* Hydraulic hose is not stocked by Kinze Repair Parts, but can be made available on a special order basis. Call for
quote.
