SQC-310 Operating Manual

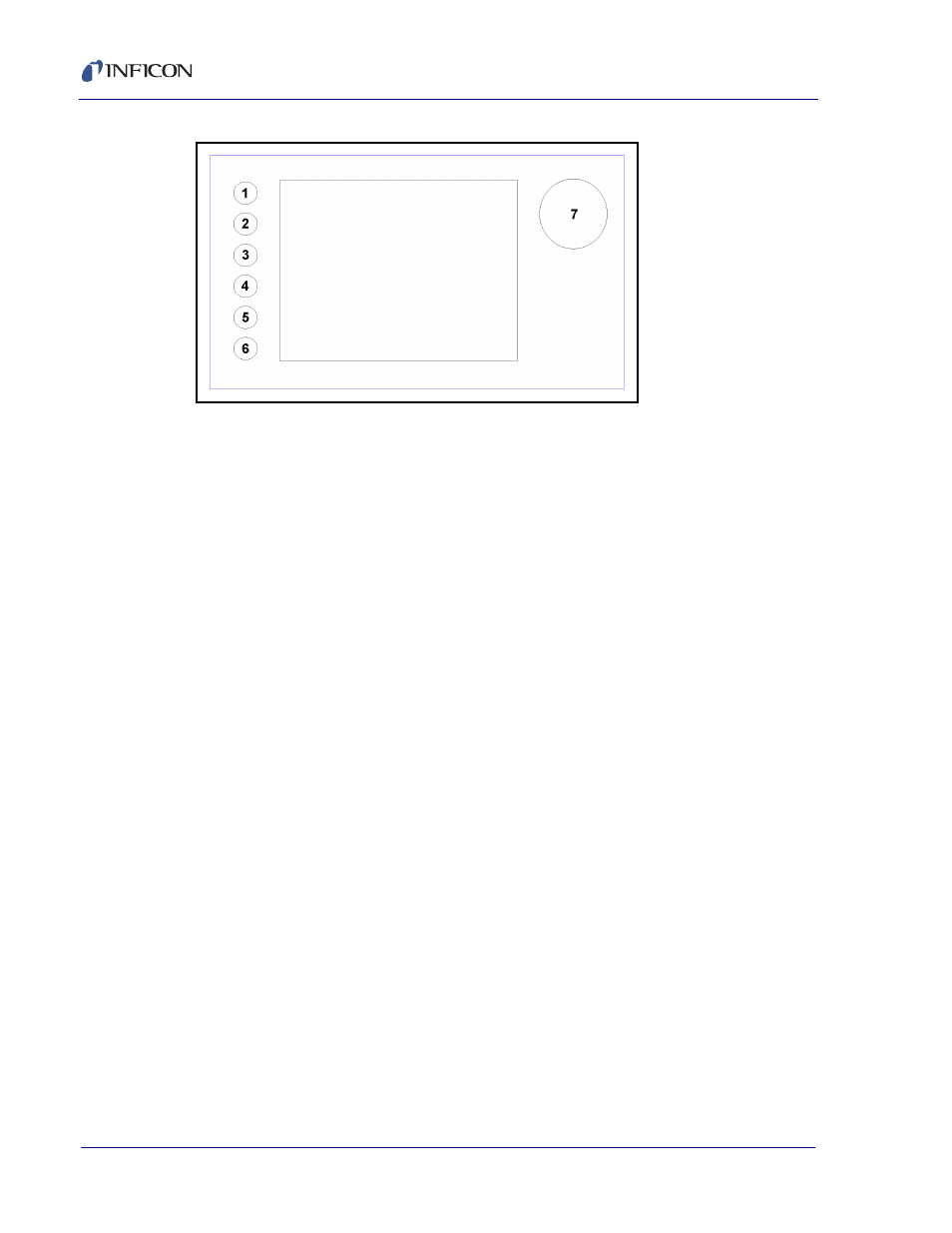

Figure 4-1 SoftKey Number Designations

To clear all memory except or the material index, press and hold the #1 and #6
SoftKeys along with the Control Knob (#7) during startup. On the bootup screen the
following should be displayed:

Loading Materials . . . . . . . . . . . . Failed!

Loading Films . . . . . . . . . . . . . . . Failed!

Loading System . . . . . . . . . . . . . Failed!

Loading Processes. . . . . . . . . . . Failed!

Once the SQC-310 boots up, turn the power off and back on again. Now the
SQC-310 should load normally and should display:

Loading Materials . . . . . . . . . . . . Done

Loading Films . . . . . . . . . . . . . . . Done

Loading System . . . . . . . . . . . . . Done

Loading Processes. . . . . . . . . . . Done

If any "Failed!" messages still appear during loading, turn the power off and back
on again. Only "Done" messages should appear after memory clearing is
complete.

To clear all memory except the material index and set the SQC-310 back to factory
default, press and hold the #2 and #5 buttons along with the Control Knob (#7)
during startup. All loading messages will now display "Failed!", except Materials.
Repeat the rebooting procedure described above until all loading messages
display "Done".
