SQC-310 Operating Manual
Attention Sounds: Enabled/disables the audio alarm associated with attention
conditions (least severe).
3.11.1 Input and Relay Menus
The Input and Relay Menus of the System Parameters Menu allow you to view and
customize relays and inputs.
Inputs and relays already assigned are indicated in the Use column by Snsr
(Sensor), Src (Source), or LS (Logic Statement).
This menu also displays the current state of each input or relay. Items in green are
currently active. Those is red are inactive.
The Relay selections have an additional SoftKey (Turn On Relay) that allows each
relay to be toggled manually for testing purposes, see
. Relays are
returned to their proper defined state on exit from this screen.

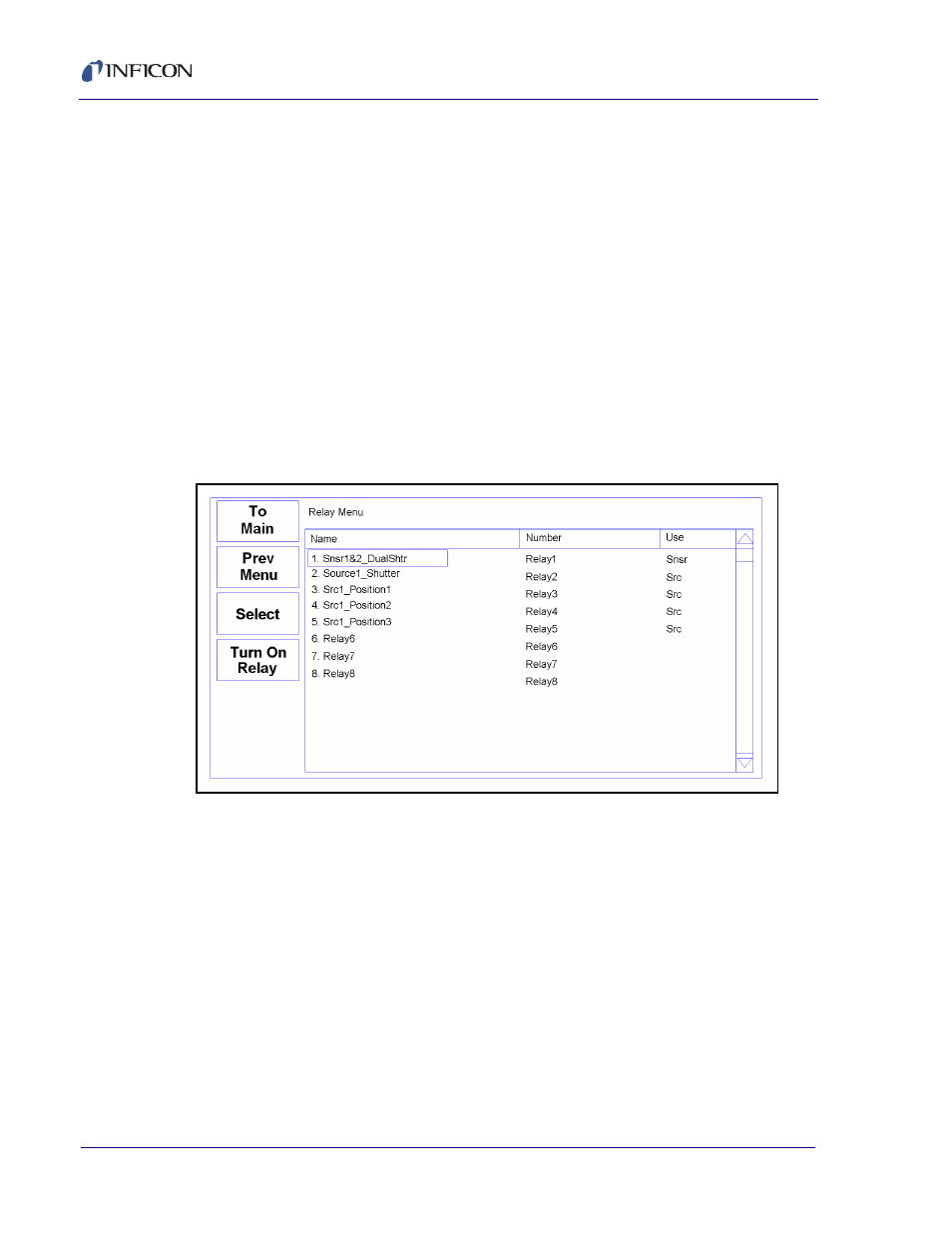

Figure 3-17 Relay Menu
