INFICON SQC-310 Thin Film Deposition Controller User Manual
Page 53
3 - 11
IP
N 07
4-
55
0-
P1
B
SQC-310 Operating Manual

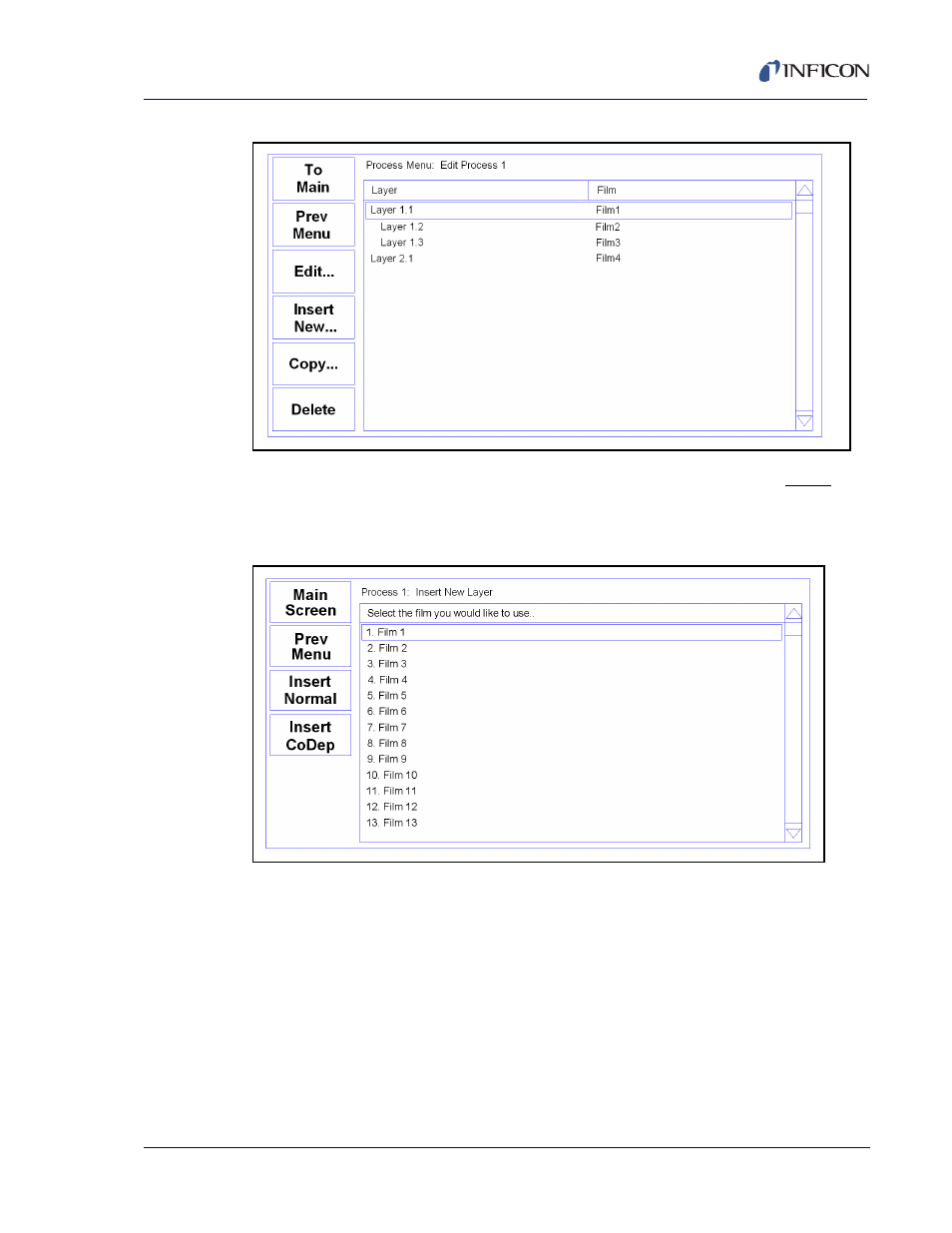

Figure 3-6 Layer Select Menu
To insert a new layer, scroll to the layer you want the new layer inserted above and
press Insert New. The Film Select menu allows you to select a film to be used for
this layer.
Figure 3-7 Film Select Menu
Once a film is selected, press Paste Normal or Paste CoDep. The Paste CoDep
option only appears when a valid layer has been selected for inserting. After the
paste, you are returned to the Layer Select menu.
