SQC-310 Operating Manual

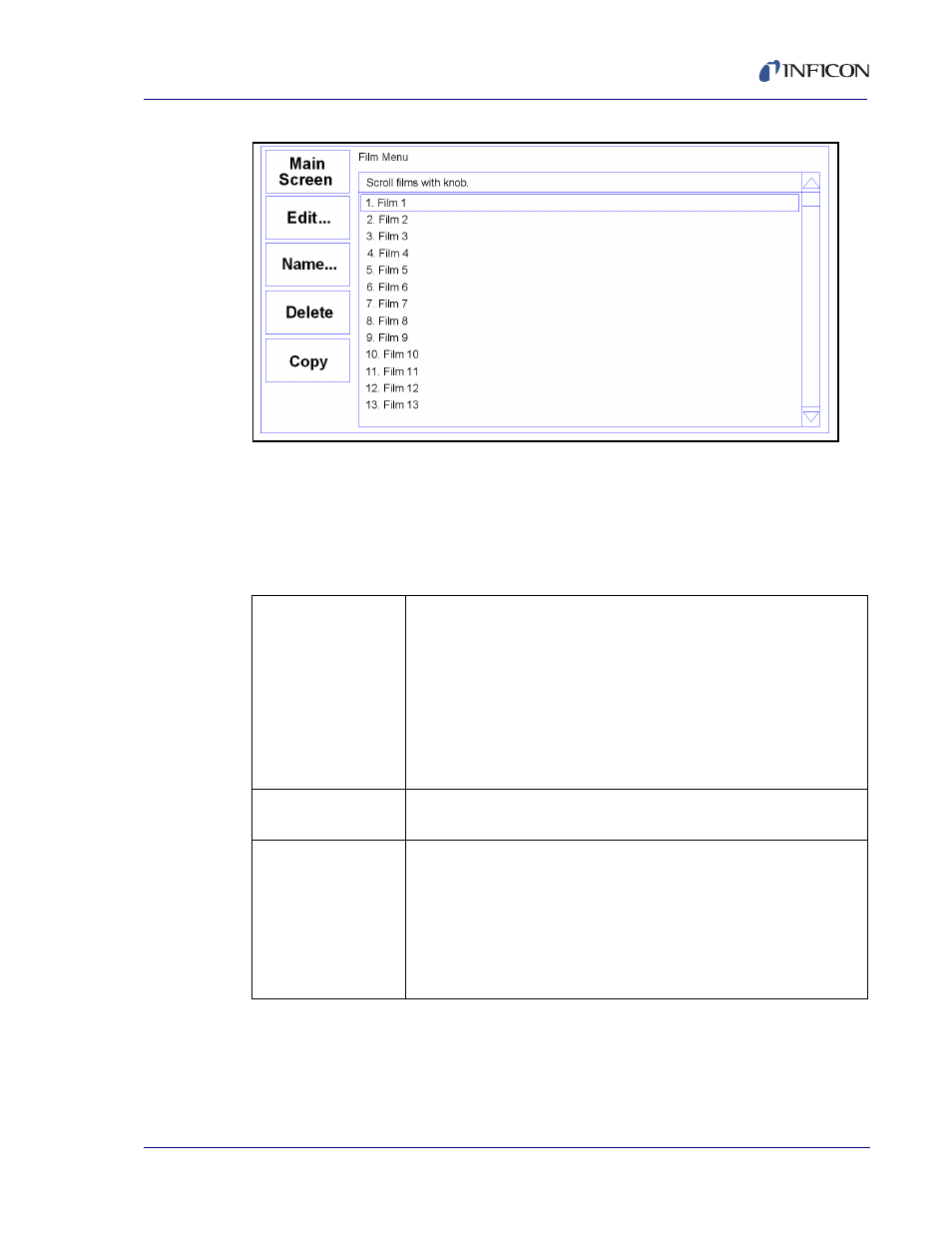

Figure 1-8 Film Select Menu

NOTE: Films are numbered from 1 to 50. Film names and process names can be

changed by pressing the Edit Name SoftKey.

Now that we are sure that at least one film exists, we will build a simple single layer
process using that film.

Table 1-6 Building a Layer

Select
Process

Press the Process Menu SoftKey to view a list of processes.

Turn the control knob to scroll to an entry in the list that is labeled
.

Press the Create SoftKey to create a default process at that
location.

Press the Select SoftKey to make the selection the active process.

Edit

Press the Edit SoftKey to view a list of layers in the selected
process. The layer list should be blank.

Edit
Layer

Press Insert New..., then scroll down the list of films to the film you
just created.

Press Insert Normal to insert the selected film as Layer 1. The
display returns to the Layer Select menu.

NOTE: On SQC-310C, Insert Codep is also available to create

Co-deposited layers.
