INFICON SQC-310 Thin Film Deposition Controller User Manual
Page 65

3 - 23
IP
N 07
4-
55
0-
P1
B
SQC-310 Operating Manual

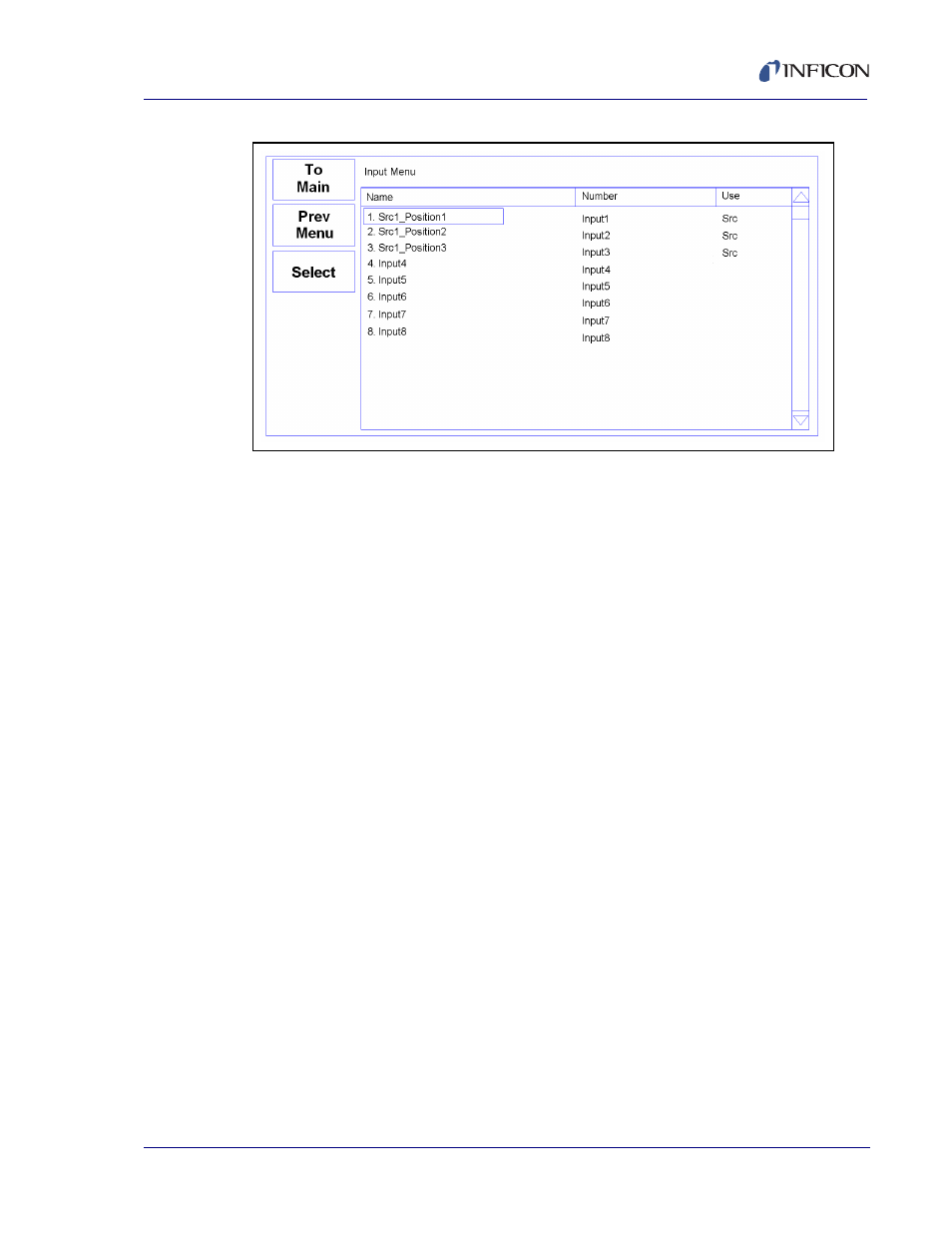

Figure 3-18 Input Menu
To edit an Input or Relay, highlight it and press Select.
Editable Input parameters are:
Name: A logical name for this input. You can return to the input’s
system-defined default name by pressing the Set to Default SoftKey.
Active Level: The level, high (5 V) or low (0 V) that triggers the input.
Input Number: The physical input assigned to this logical input function. Alows
for re-assignment of inputs without physically re-wiring any inputs or
connectors.
Editable Relay parameters are:
Name: A logical name for this relay. You can return to the relay’s
system-defined default name by pressing the Set to Default SoftKey.
Type: Normally Open (NO) contacts or Normally Closed (NC) contacts. The
SQC-310 uses software to implement the NO/NC function. All relays are
actually normally open and will open when the SQC-310 is not powered.
Pulses: Selecting None causes the relay to activate when the logical relay
function is true, and deactivate when it is not. Some multi-crystal sensors
require one or two pulses for activation.
Pulse Width: The time (in seconds) that the relay activates if One or Two
Pulses are selected.
