3 - 12

IP

N 07

4-

55

0-

P1

B

SQC-310 Operating Manual

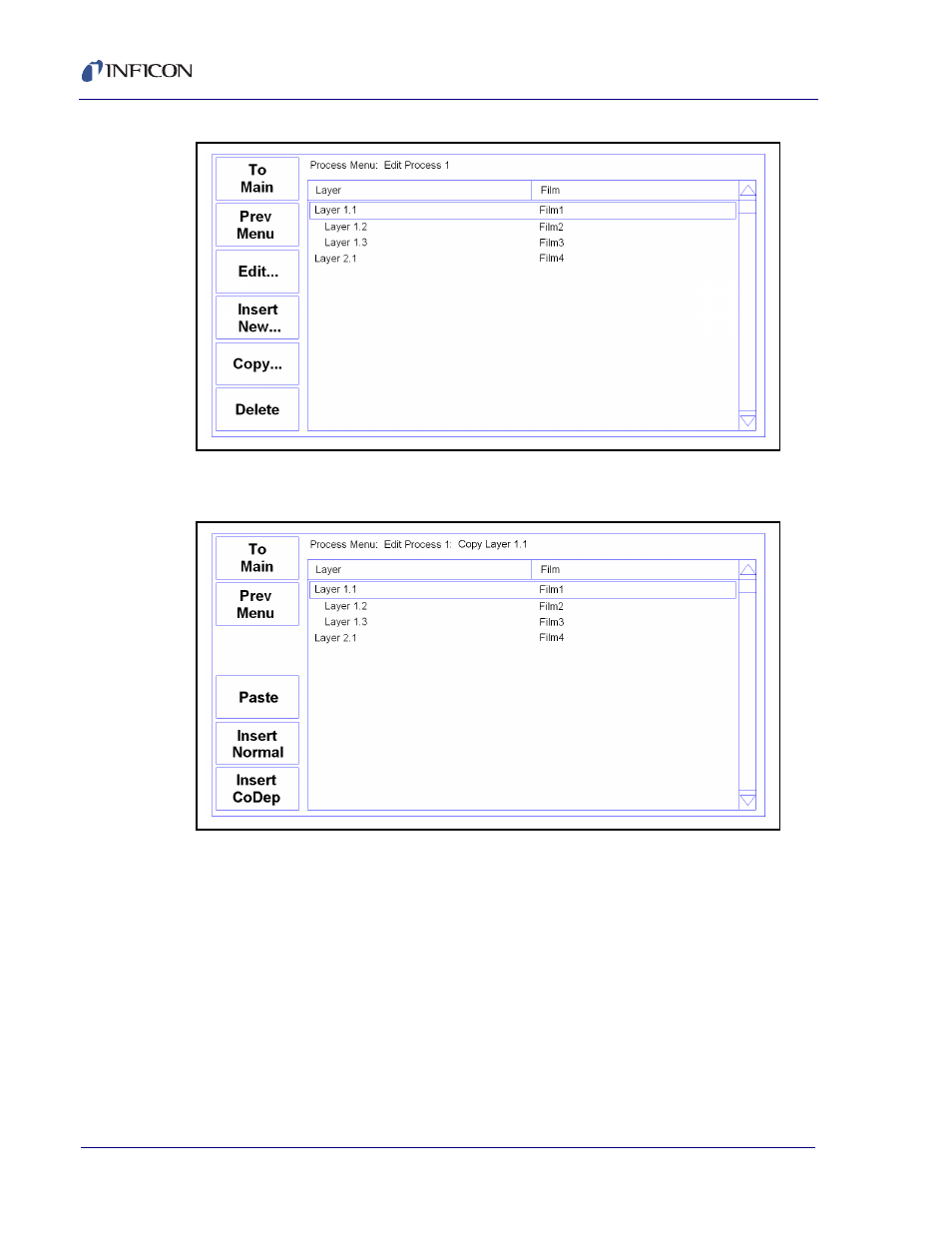

Figure 3-8 Layer Select Menu

Highlight a layer and press Copy to store a copy of the layer in memory.

Figure 3-9 Copy Layer Menu

The display changes to the CopyLayer Menu. The Paste, Insert Normal, or Insert
CoDep SoftKeys may not be visible if the operation is not legal for the selected
layer.

Paste replaces the selected layer with the one stored in memory.

Remember that when Insert Normal or Insert Codep is used, layers are always
inserted above the highlighted layer. That is, the inserted layer will have the same
number as the highlighted layer, and the highlighted layer will move down one
layer.

HINT: When building a process it is easiest to add a “dummy” last layer and keep

inserting above that layer. When the process is complete, delete the
“dummy” layer.
