2.2.11 Expansion Card C Connections
Expansion Card C has 24 dry contact input channels.

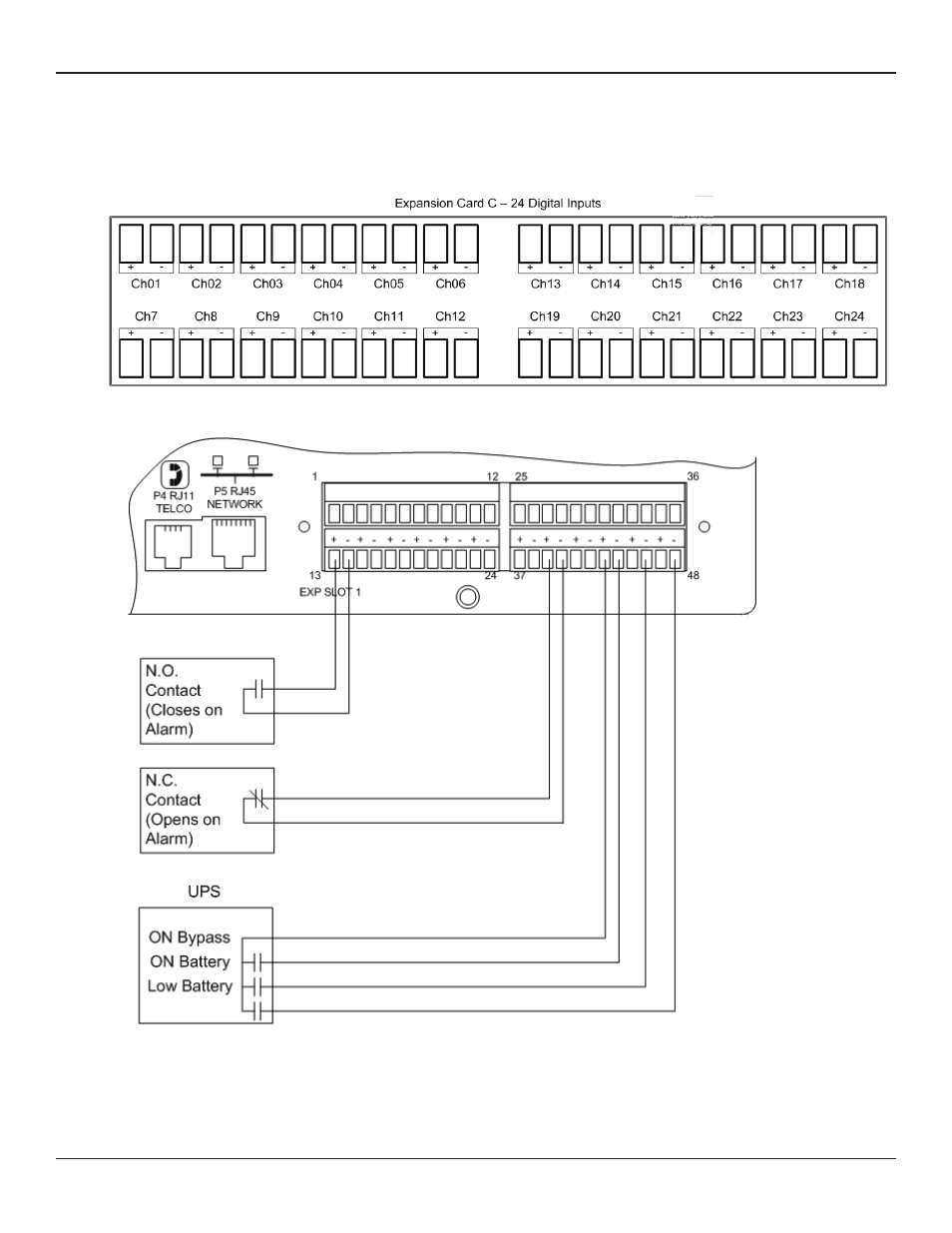

Figure 2.15 I/O Terminals for Expansion Card C
Figure 2.16 Typical Wiring for Expansion Card C
