4.6. Modbus/Slave Units Configuration – Modbus Master Branch Circuit Monitor– 4 or 16
The RIM-1000 can be configured as a Modbus Master for 4 or 16 branch circuit monitors (BCMs). RIM-1000 monitors the Veris Industries
H663 Series BCM (ordered separately). This configuration is used to configure the information regarding the Modbus Slave BCMs from
which the RIM-1000 will poll data.
To access this page, select Modbus Slave Units from the Configuration Menu (you must have already configured the
Modbus/SNMP/BACnet/Telnet setting to Modbus Master BCM-4 or BCM-16).

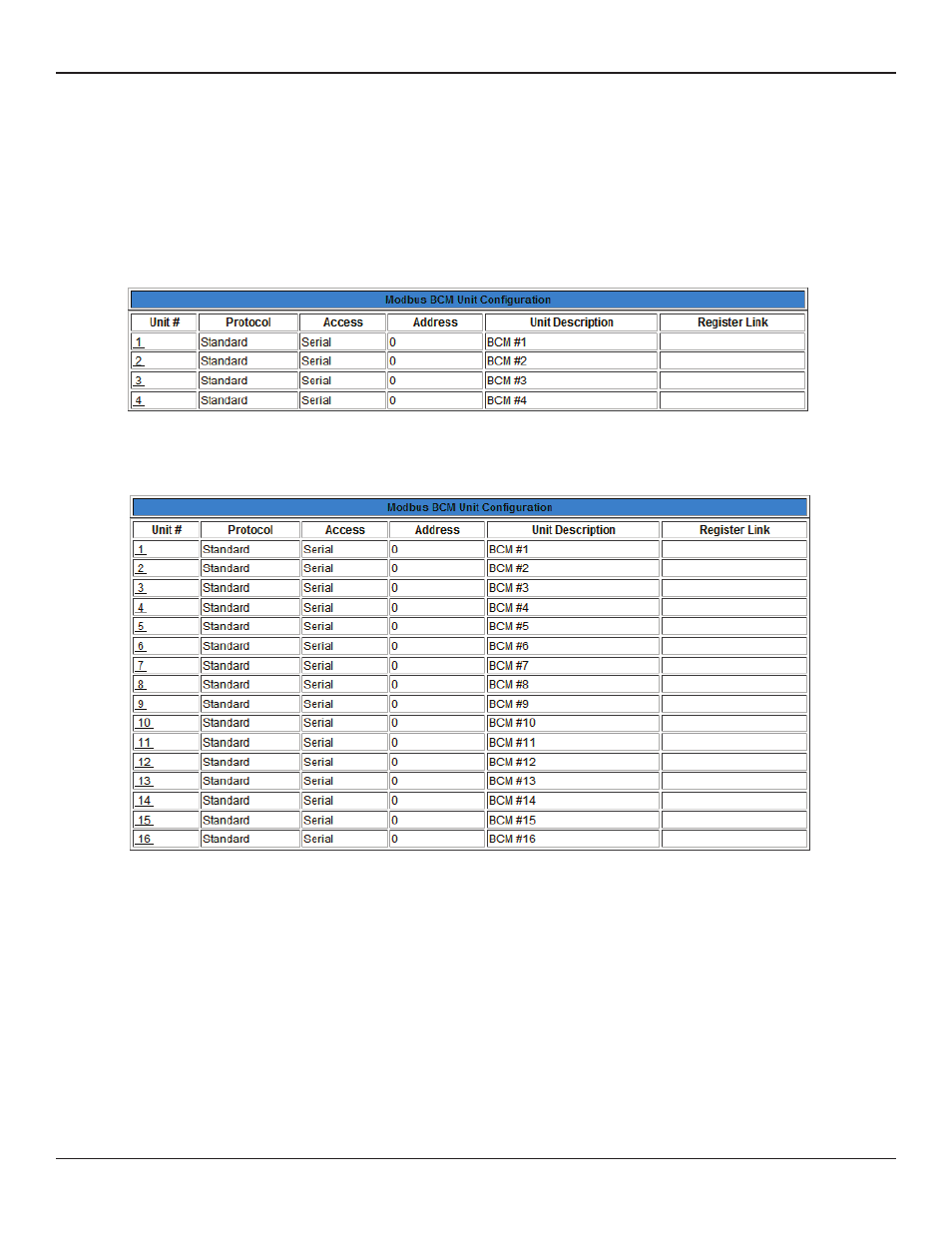

Figure 4.12 Modbus BCM-4 Unit Configuration
Modbus BCM-16 Unit Configuration Page
Select an available slave unit number, and configure the data as outlined in “Modbus/SNMP/ BACnet Slave Units” on page 99.
When you configure the RTU Station Address, enter the address of the Modbus Slave device. Be sure this matches the address
set by the Dip Switches on the BCM. Each BCM requires a unique address.
