A.2. Expansion Card Installation
Expansion cards can be installed at the factory at the time of the initial product order, or they can be ordered at a later date
and installed by the customer. If customers order an expansion card after they have possession of the RIM-1000 unit, they must
install the expansion card themselves.
A.2.1 Install an Expansion Card in a 2U RIM-1000
The RIM-1000 expansion card is shipped with five screws. Remove the two screws that hold the expansion card plate from the
slot on the RIM-1000 where the card will be installed. Place the screws back into the holes once the plate is removed.
1. Remove the four hex standoffs from the COM1 and COM2 connectors located on the back panel. Remove the bottom two
screws located along the bottom edge of the back of the unit.

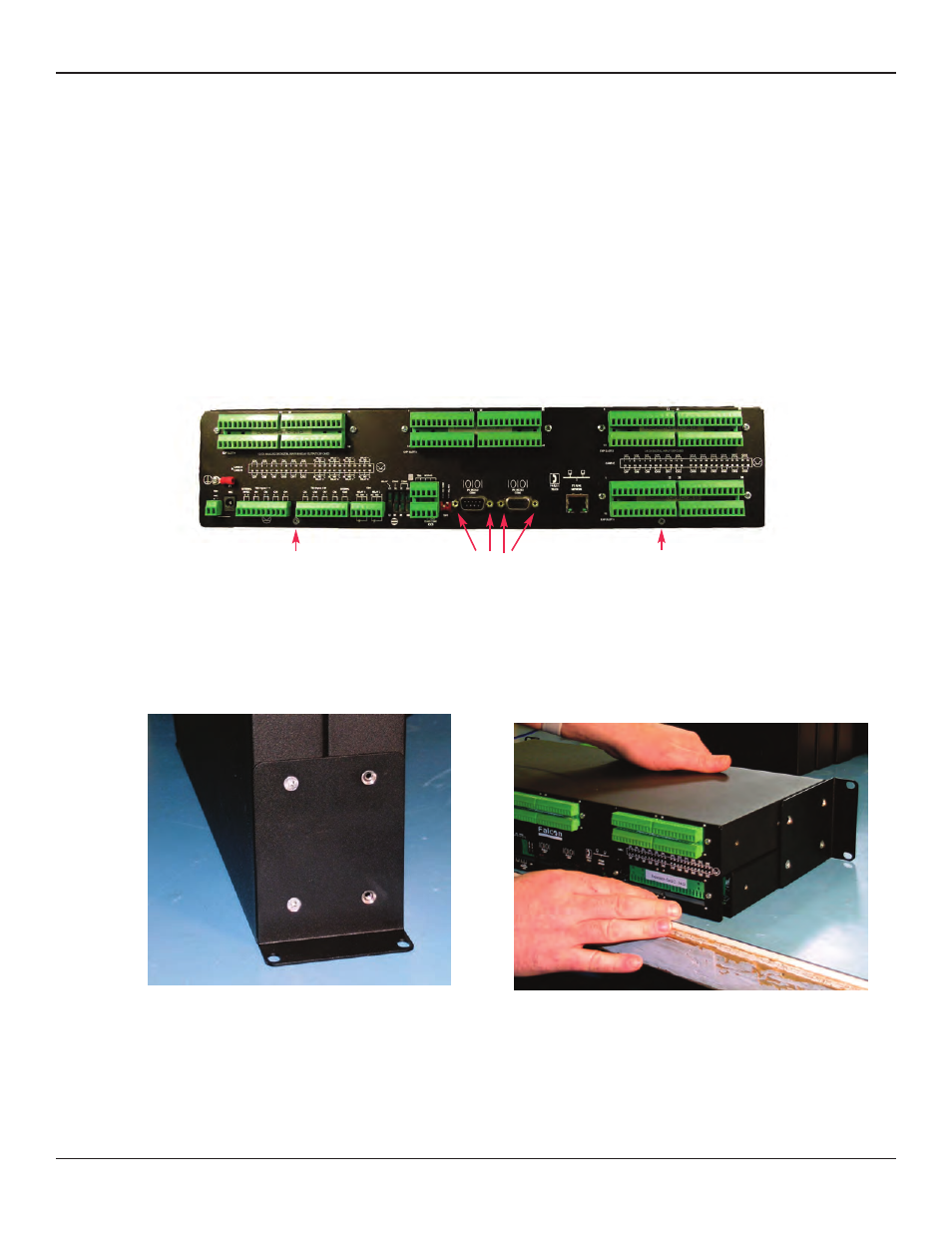

Figure A.1 Back of 2U RIM-1000 Showing Hex Standoffs and Screws to Remove
2. Remove the two top screws that attach the side plate (rack ears) to the unit from both sides and slide the base and cover apart.
Figure A.2 Side Plate (“Ear”) with Two Mounting Screws Removed; Slide the Base and Cover
Screw Hex standoff Screw
