4.3.4 Modbus Master Poll Data Log
This link allows users to view the raw data the RIM-1000 receives from the Slave(s).

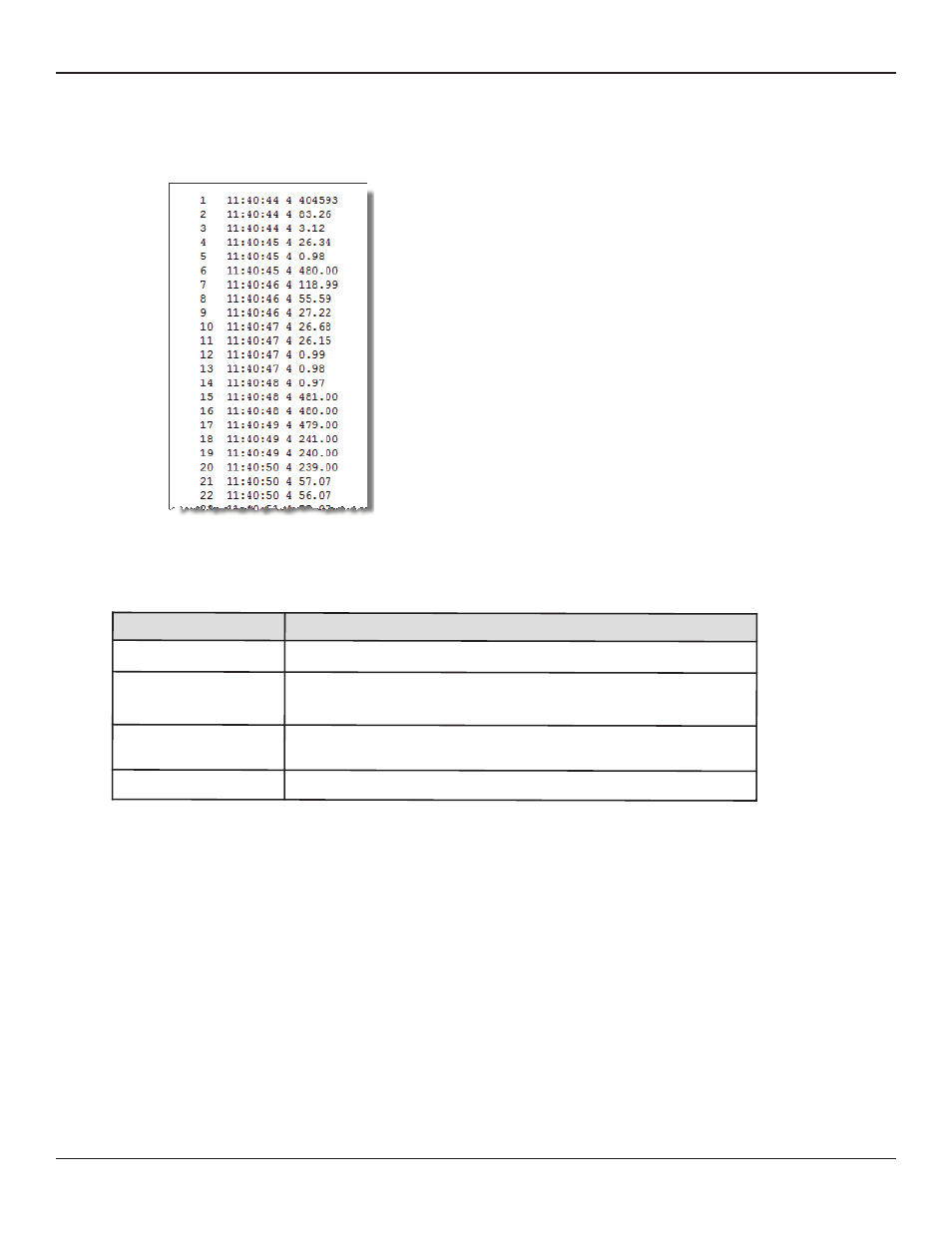

Figure 4.7 Modbus Master Poll Data Log
Figure 4.7 Modbus Master Poll Data Log Fields
4.3.5 SMS/Text Modem Log
This link allows users to view the communications between the RIM-1000 and the modem.
4.3.6 BACnet Packet Log
Use this log to view BACnet packet communications information.
4.3.7 BACnet Master Data Log
This log provides BACnet Master information.
Column
Description
1
RIM-1000 Modbus Master Register Number (1-628).
2
Time the Data is received, in HH (hour): MM (minute): SS (second) format where
HH is a number 1-24
3
Number of Bytes Reserved for Data. This will be 2 unless the Modbus Master reg-
ister is configured to read a Long or Float value, in which case it would be 4.
4
Slave Data in decimal form.
