Map Modbus, SMNP and BACnet Slave Units
Modbus and SNMP Slave Units are mapped just like analog and digital inputs.
1. From the RIM-1000 home page, go to Configuration>Modbus/SNMP Slave Units. All of your previously configured points will display.

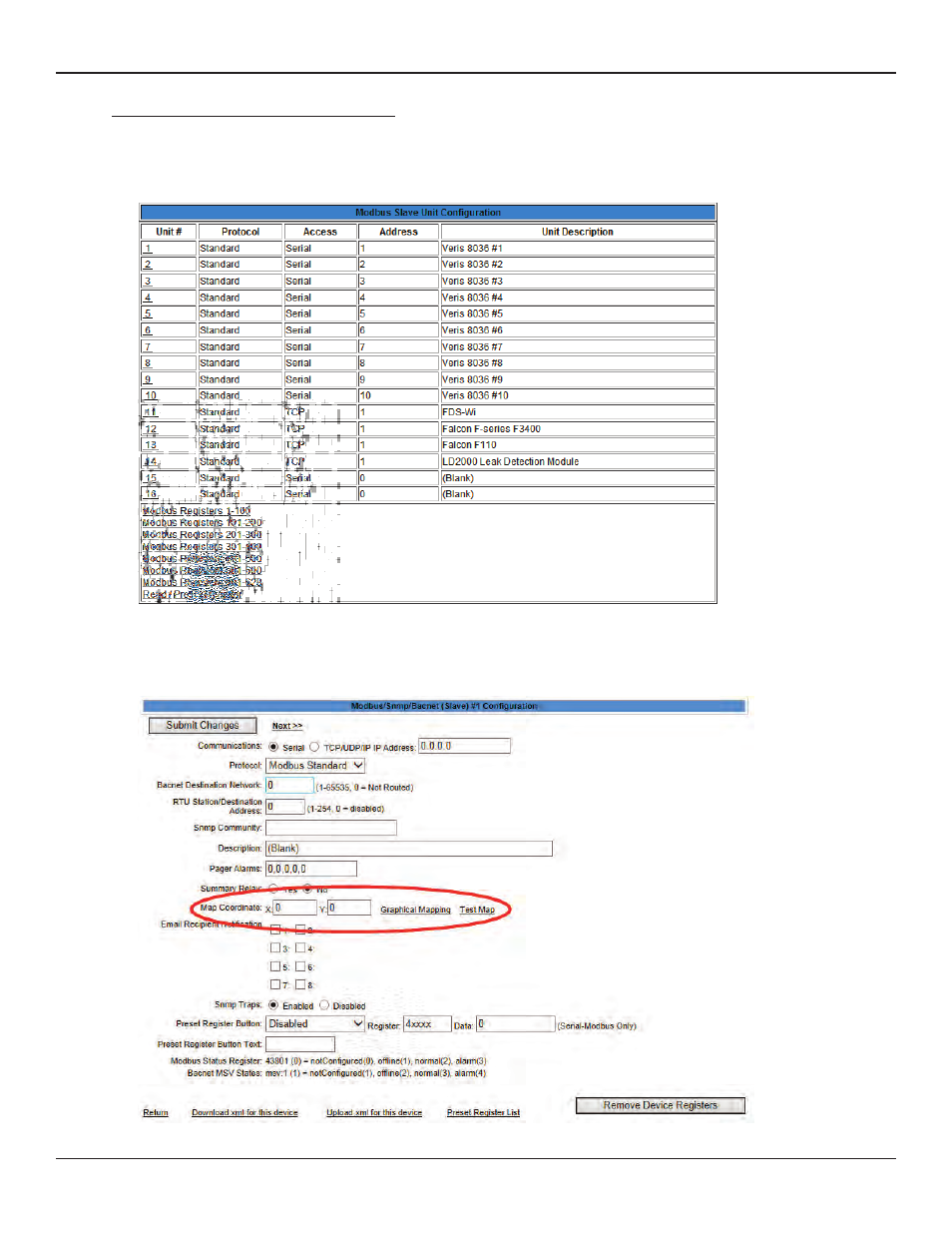

Figure 3.61 Modbus/SNMP/BACnet Slave Unit Configuration Screen
2. Click on the number of the unit you wish to map. This will take you to the Configuration page for that device.
Figure 3.62 Map a Slave Input
