4.3. Modbus Master
Please refer to section 3.4.23, “Modbus/SNMP/BACnet/Telnet Master” on page 96 for detailed descriptions of the Modbus
Master Configuration screens.
4.3.1 Communications Logs
The RIM-1000 logs a vast amount of communications data. Links to the follow logs are found near the bottom of the
Configuration > Modbus/Snmp/BACnet/Telnet Master web page.
4.3.2 Modbus Slave Register Display Log
This link displays the current contents of the RIM-1000 Slave Registers. The rows correspond to the RIM-1000 channel numbers
(inputs 1–104) with each row containing the Modbus Slave Registers that pertain to that particular input.

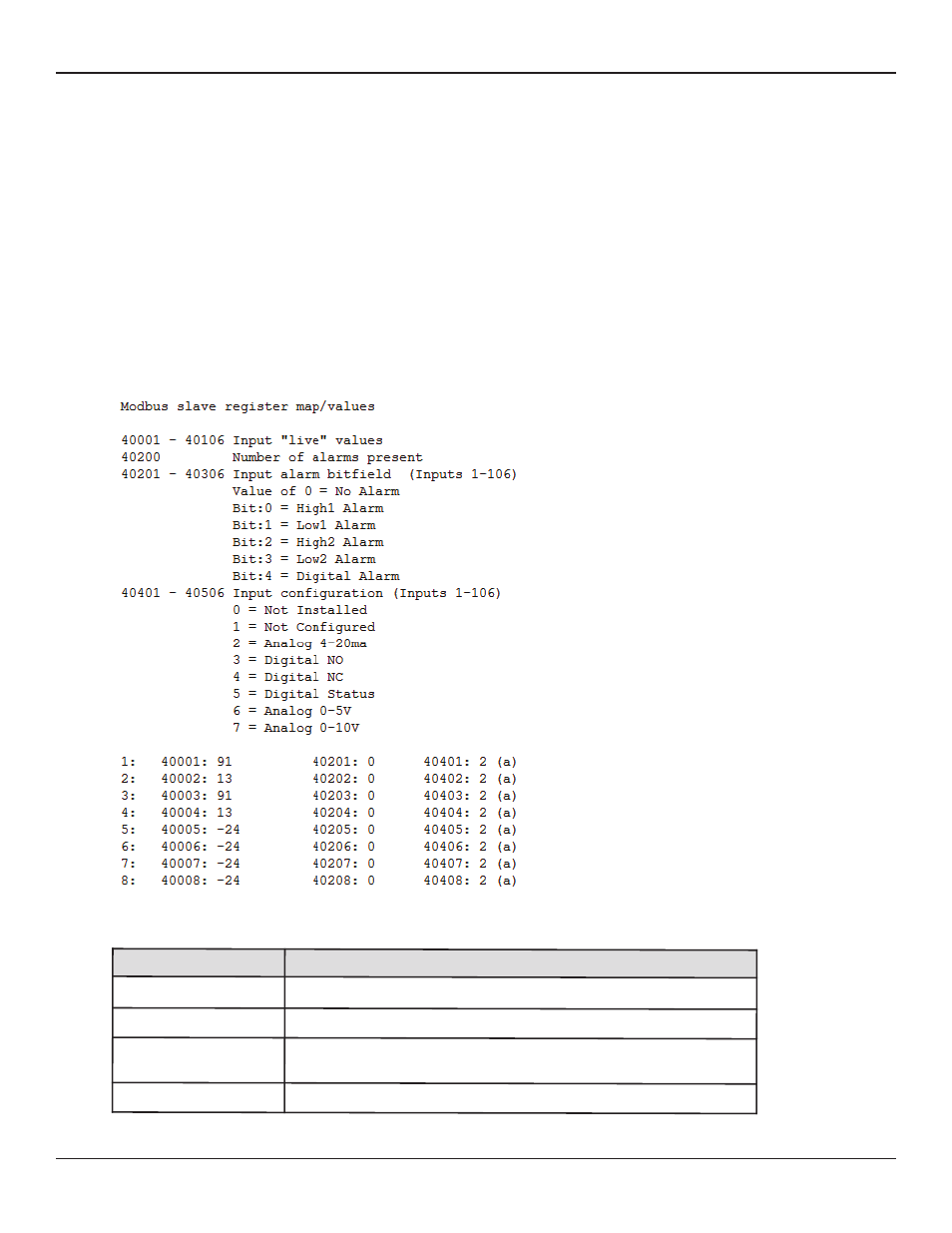

Figure 4.5 Modbus Slave Register Display Log
Figure 4.5 Modbus Slave Register Display Log Fields
Column Description
1 Displays the RIM-1000 Channel or Input Number (1-104).
2 Displays the RIM-1000 Slave Register Number for the Channel Input Reading.
3
Displays the Value of the Current Channel Input. Channels configured for digital
will be a “0” when the input is normal and “1” when the input is in alarm.
4 Displays the RIM-1000 Slave Register Number for the Channel Input Alarm Status.
