5. Click the Format Trend button to save your information. Once the information has been saved, you’ll notice the Info field for
that trend will populate itself.
NOTE: Because of the way the RIM-1000 saves its data, you need to fully configure one trend and click the Format Trend button on its
line before you configure the next trend. If you attempt to configure multiple trends at once, only the data associated with
the Format Trend button you click will be saved.
View Trends
1. On the RIM-1000 interface, go to History>Extended Trends.

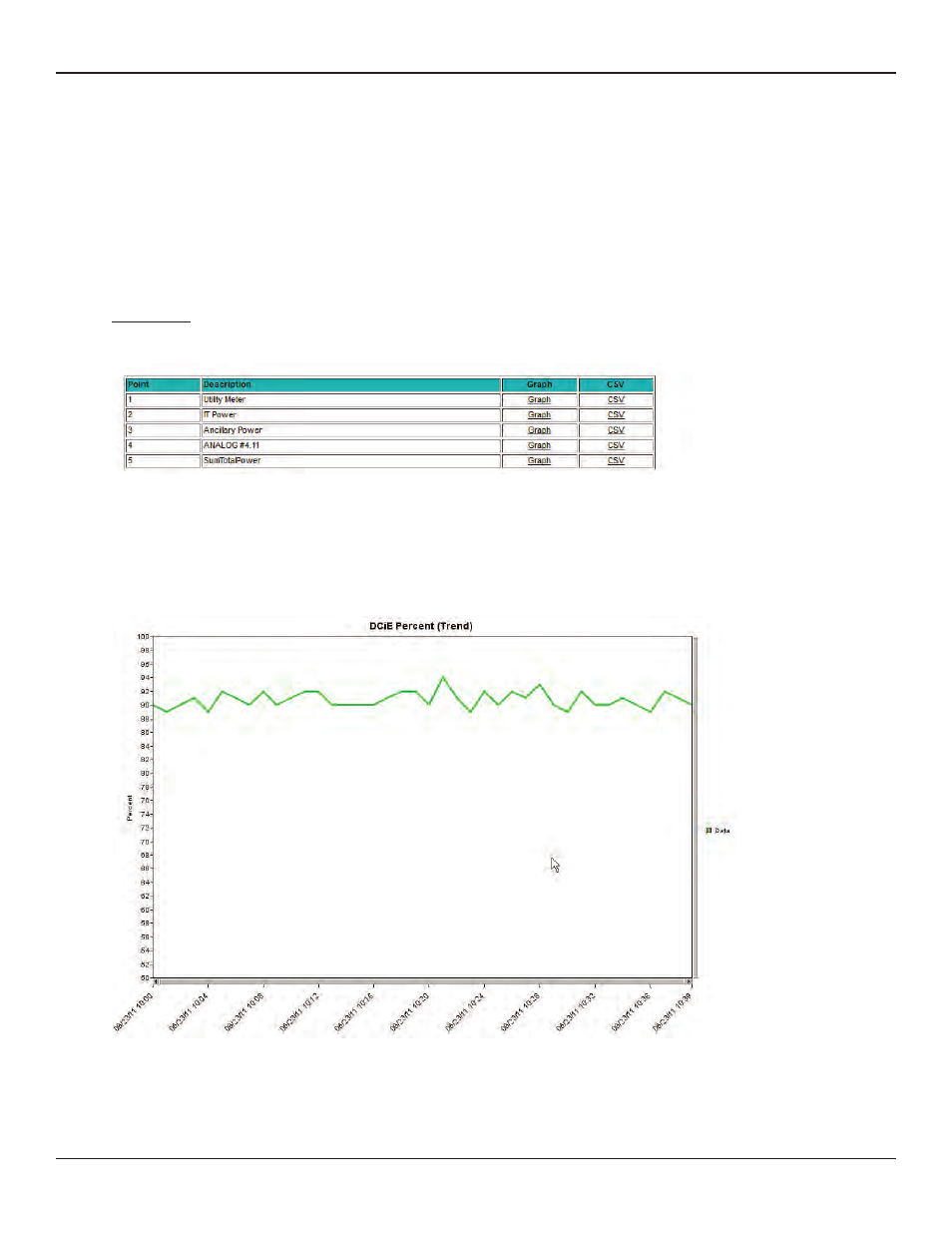

Figure 3.48 View your Trending Data
2. Locate the point number you configured. Click the Graph link to access a Java-based graph of the data. The X and Y axis of the
graph are adjustable. Click and drag the bars on the axes to a more or less detailed view of your data.
Figure 3.49 Trending Graph
