Selecting a link to an individual register displays the configuration options for that register; see Figure 4.10. Instructions for completing
the options on this page are described below.

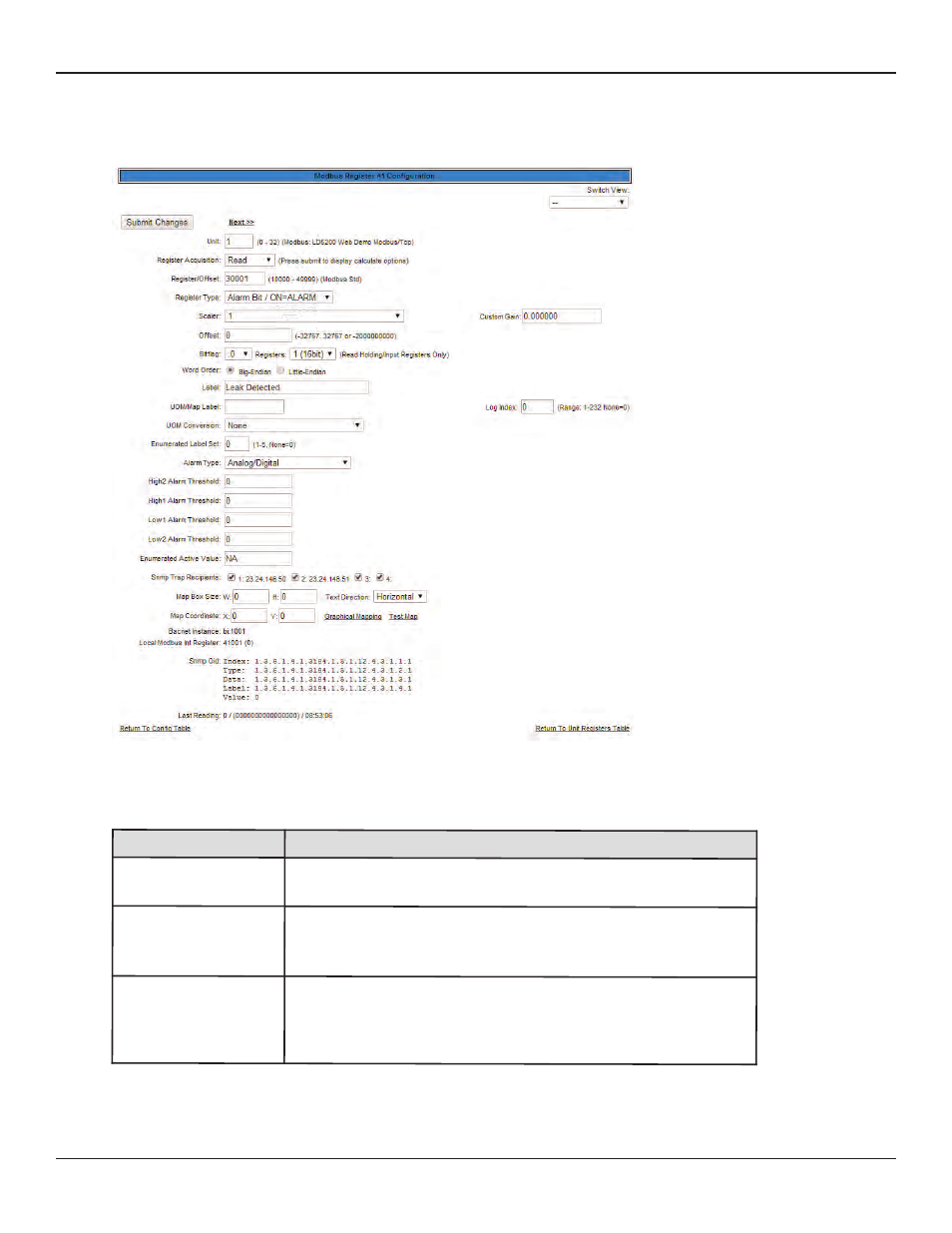

Figure 4.10 Individual Modbus Register Configuration Screen
Table 4.6 Individual Modbus Register Configuration Options
Option
Description
Switch View
Toggle this option to view either the Modbus Register, SNMP
Object, or BACnet Instance
Submit Changes
Button
Click this button to save any changes entered on the page. If you
access another page, or press the <
clicking the Submit Changes button, all your changes will be lost.
Unit
Enter the Slave Unit Number. This is not the Slave address, but the
Slave Unit Number shown on the Modbus Slave Unit Configuration
page; see section 3.4.24, “Modbus/SNMP/BACnet Slave Units” on
page 99.
