3.4.25.2 PUE/DCiE Trending
Now that the RIM-1000 is generating PUE/DCiE information, it can log long-term trending data. The trending program can log 3840
entries. Once 3840 entries have been logged, the system will eliminate 40 entries at a time and overwrite the data, from oldest
to newest. Long-term trending is the most effective way to use PUE/DCiE data.
Format Trends
1. On the RIM-1000 interface, go to Configuration>Trends.
2. You may already have some trending tasks operating on the RIM-1000. Select the next available index number. Use the following
points to trend your data:
3. Select Modbus/SNMP as the type.
4. Now, determine the interval at which you wish to trend the data. The interval is selectable, from a 1 minute interval to an
8 hour interval - it just depends how detailed you’d like your data to be. At a 1 minute interval, the RIM-1000 will store approximately
2.5 days worth of data before it begins to overwrite. At an 8 hour interval, the RIM-1000 will store approximately 3.5 years of data
before it begins to overwrite the oldest data.

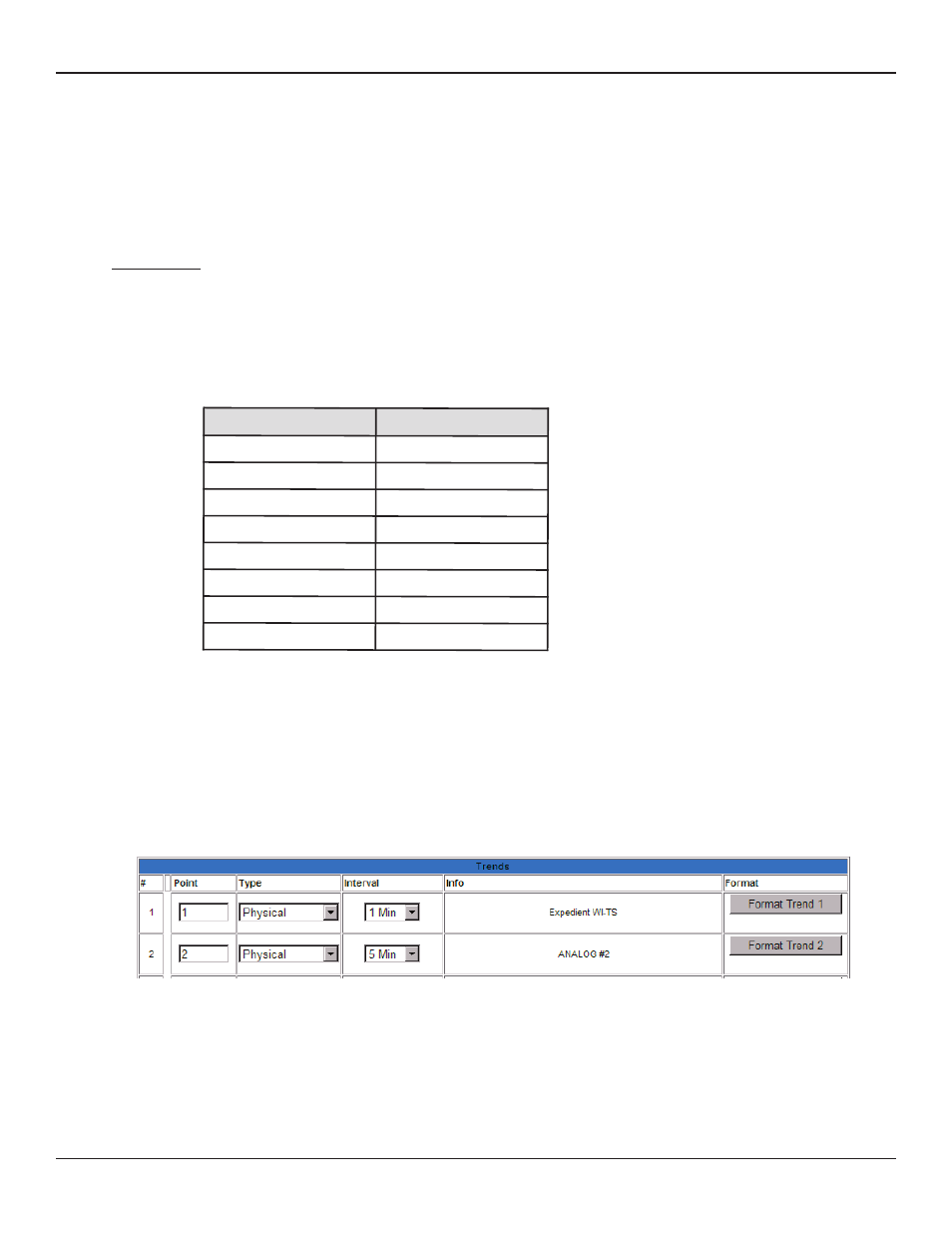

Figure 3.47 Establish Trending
Point Value Trended Data
629 DCiE 1
630 PUE 1
631 DCiE 2
632 PUE 2
633 DCiE 1 + 2
634 PUE 1 + 2
635 Summary 1
636 Summary 2
