1.4. Terminal Block Designations

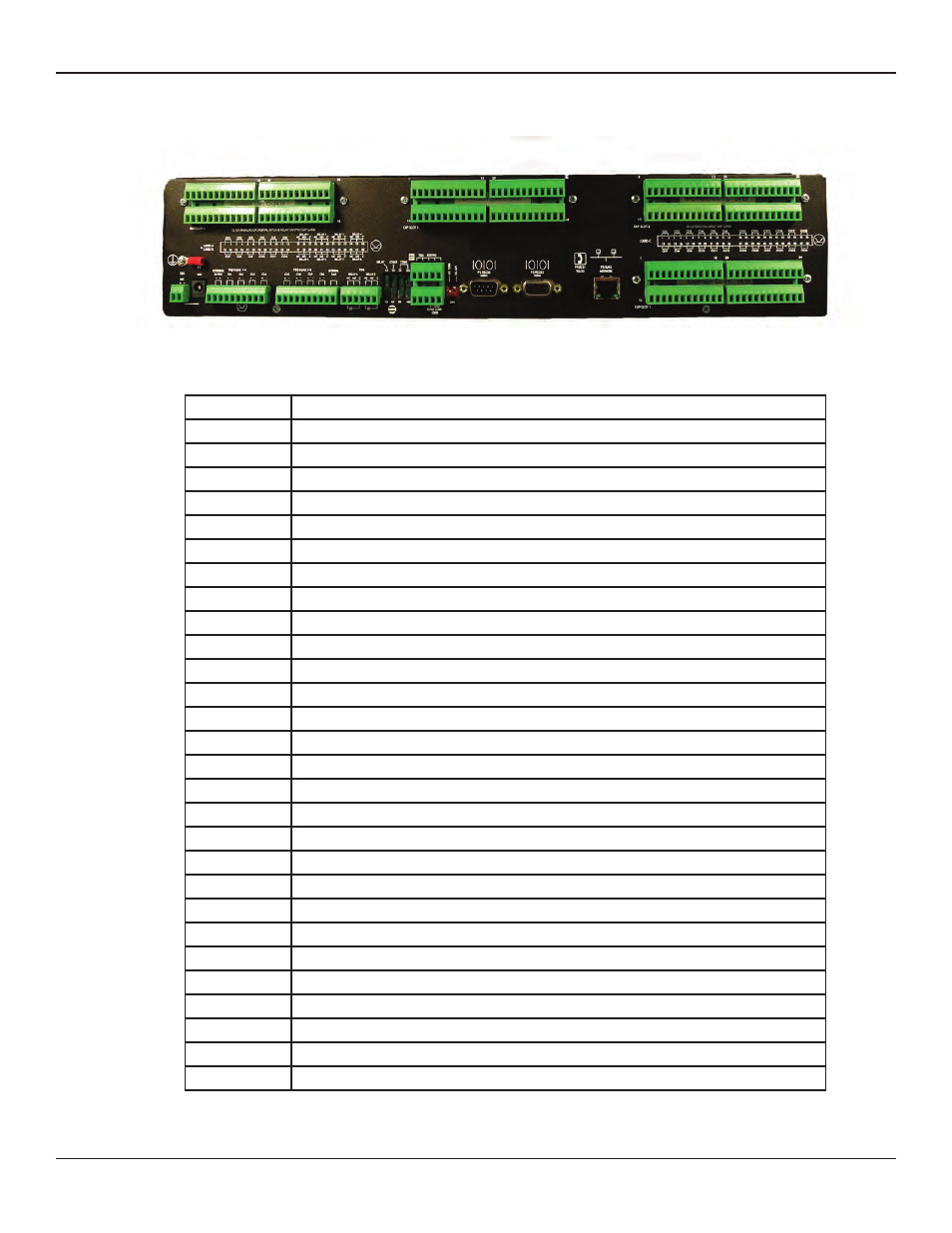

Figure 1.2 RIM-1000 Terminal Block Designations
Table 1.1 Terminal Block Designations
TB1-1 (+) Input for 24 or 48VDC (optional) power
TB1-2 (-) Input for 24 or 48VDC (optional) power
P1 24VDC wall adapter input (center +) (not available with 48VDC version)
TB2-1 24VDC positive (+) external output (power for sensors)
TB2-2 24VDC positive (+) external output (power for sensors)
TB2-3 Channel 1 positive (+)
TB2-4 Channel 1 negative (-)
TB2-5 Channel 2 positive (+)
TB2-6 Channel 2 negative (-)
TB2-7 Channel 3 positive (+)
TB2-8 Channel 3 negative (-)
TB2-9 Channel 4 positive (+)
TB2-10 Channel 4 negative (-)
TB3-1 Channel 5 positive (+)
TB3-2 Channel 5 negative (-)
TB3-3 Channel 6 positive (+)
TB3-4 Channel 6 negative (-)
TB3-5 Channel 7 positive (+)
TB3-6 Channel 7 negative (-)
TB3-7 Channel 8 positive (+)
TB3-8 Channel 8 negative (-)
TB3-9 24VDC positive (+) external output (power for sensors)
TB3-10 24VDC positive (+) external output (power for sensors)
TB4-1 Relay 1 normally closed (NC)
TB4-2 Relay 1 normally open (NO)
