2.2.9 Modbus EIA-232 Connections
Use a straight thru cable for connection to a Data Circuit Equipment (DCE) device.
Use a null modem cable for a connection to a Data Circuit Terminating (DTE) device.
The RIM-1000 can function as a Modbus Master or Slave over an EIA-232 hardware connection. The EIA-232 port is configured
as a Data Circuit Terminating (DTE) device.

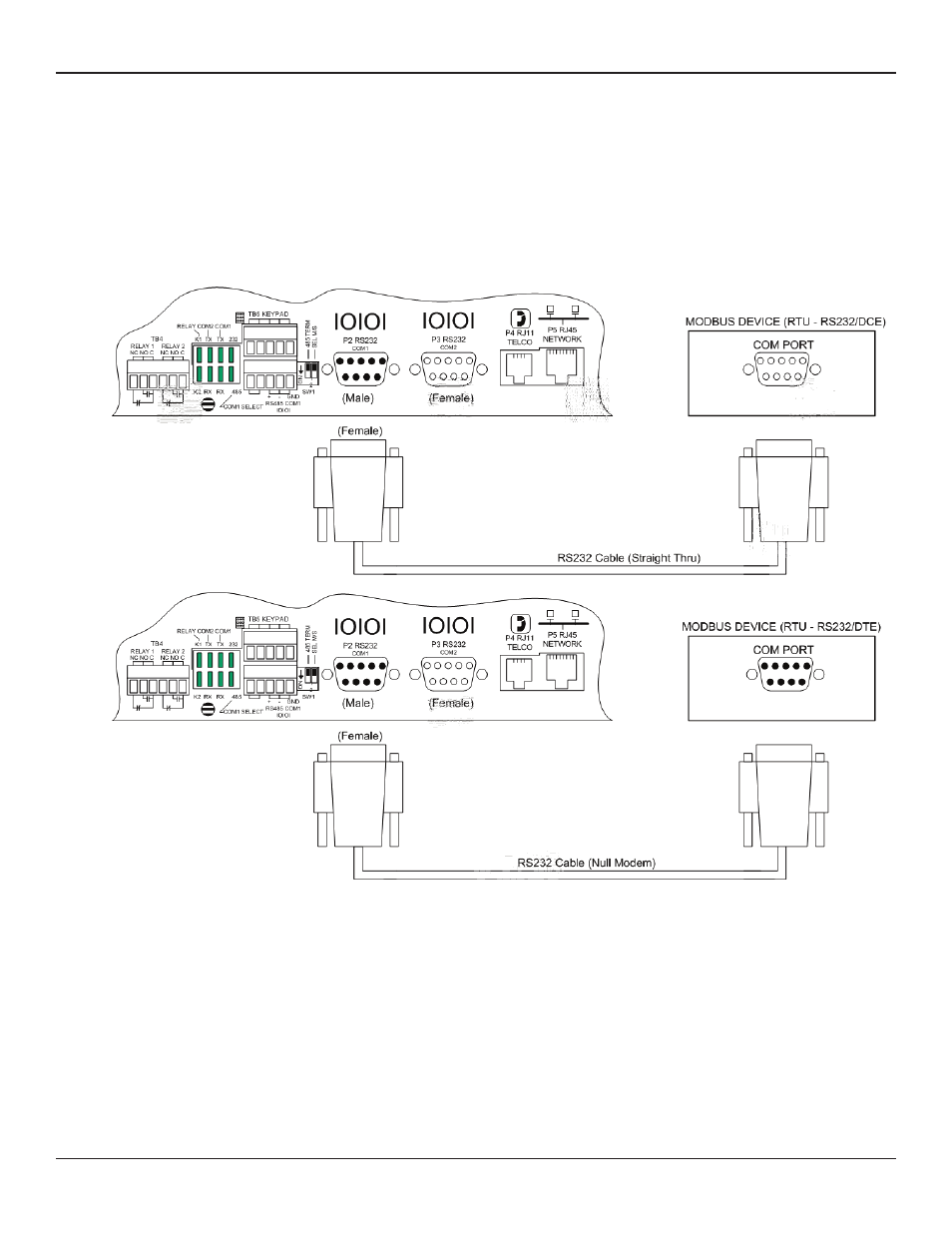

Figure 2.11 RIM-1000 EIA-232 Connection to a DCE or DTE Device
