Modbus EIA-485 Connections
The RIM-1000 can function as a Modbus Master or Slave over an EIA-485, 2-wire hardware connection.

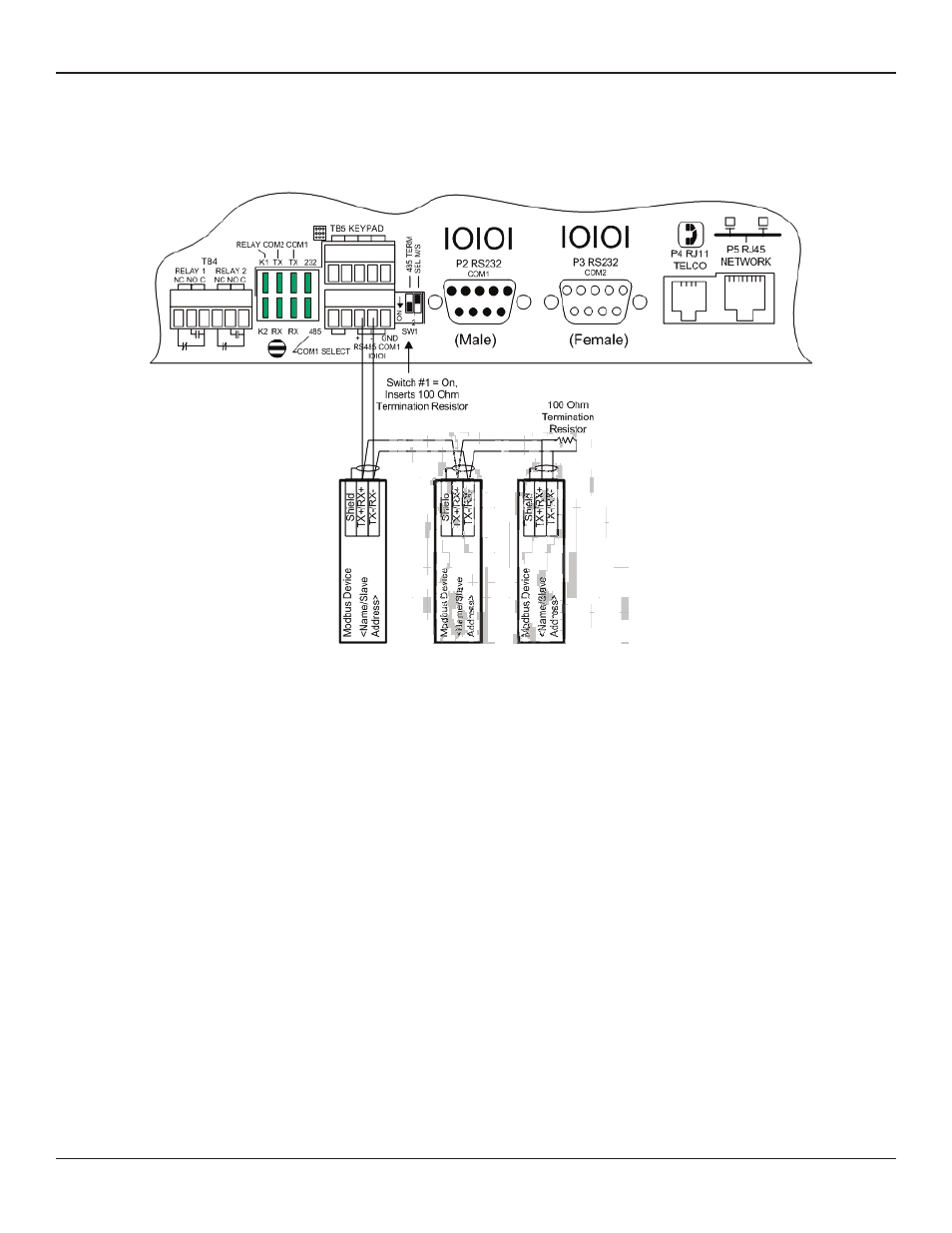

Figure 2.10 RIM-1000 EIA-485 Connection
