3. Gently lift and hinge the top lid to the side and lay it next to the base (bottom chassis).

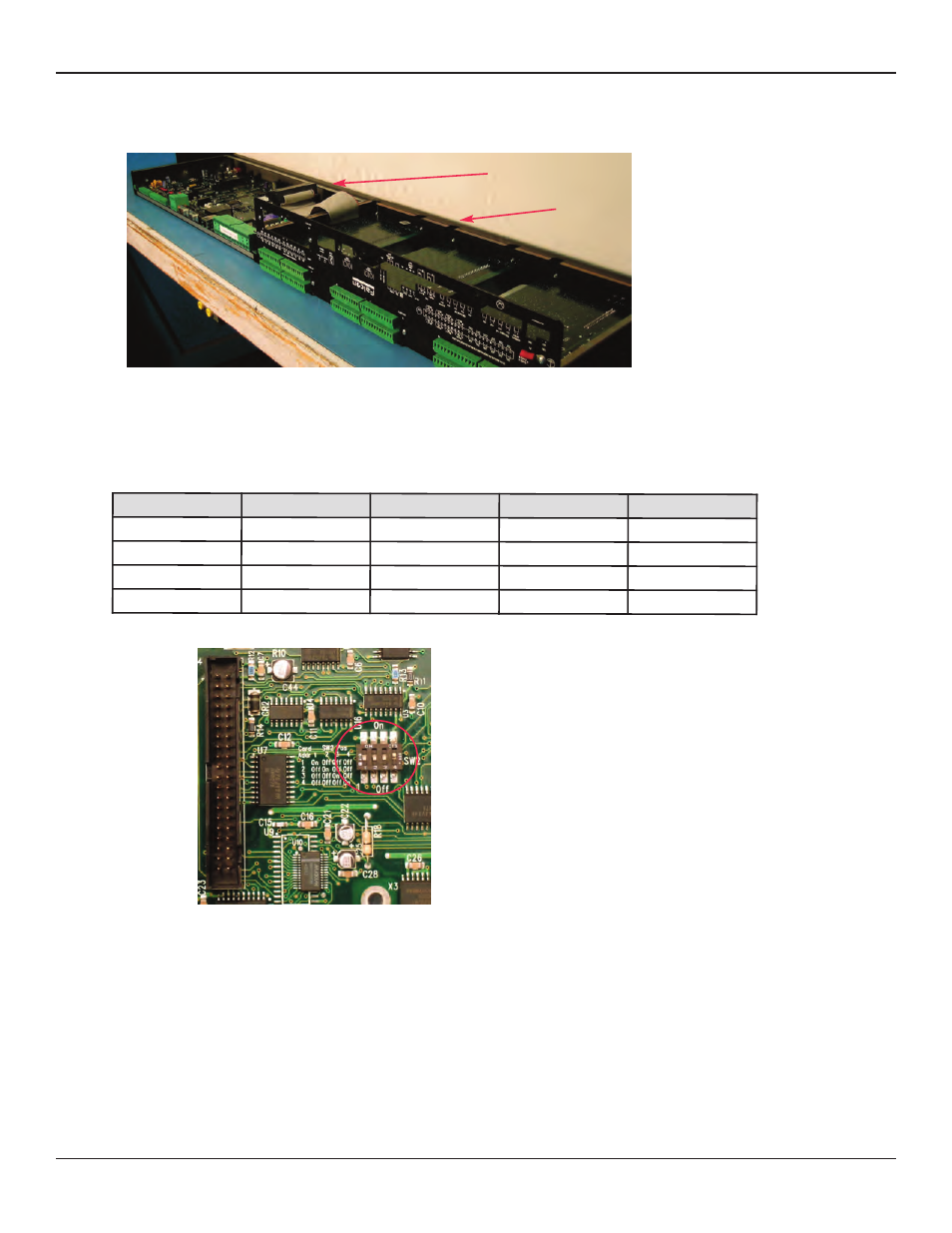

Figure A.3 2U RIM-1000 Unit - Opened

4. On the expansion card, set the card slot address (SW2 DIP switches) to the slot number where the card will reside (1 through 4).

Table A.2 lists the position of the switches based on the slot number. Figure A.4 shows the location of the DIP switches.

Table A.2 SW2 DIP Switch Settings for Expansion Cards

Figure A.4 SW2 DIP Switches

5. Now you need to mount the expansion card. The expansion card will either mount in slot 1 in the base of the unit, or in slot 2, 3, or 4,

in the lid of the unit.

If the expansion card is to be mounted in the base (Slot 1):

a. Attach the ribbon cable to the card.

b. Secure the provided screw into the remaining hole.

Base

Lid

Slot

DIP Switch 1

DIP Switch 2

DIP Switch 3

DIP Switch 4

Off
