Chatsworth Products Remote Infrastructure Management (RIM-1000) - Manual (Page 31)

Remote Infrastructure Management System - Version 1.0 / July 2014
Chatsworth Products, Inc. (CPI) • 800-834-4969 31

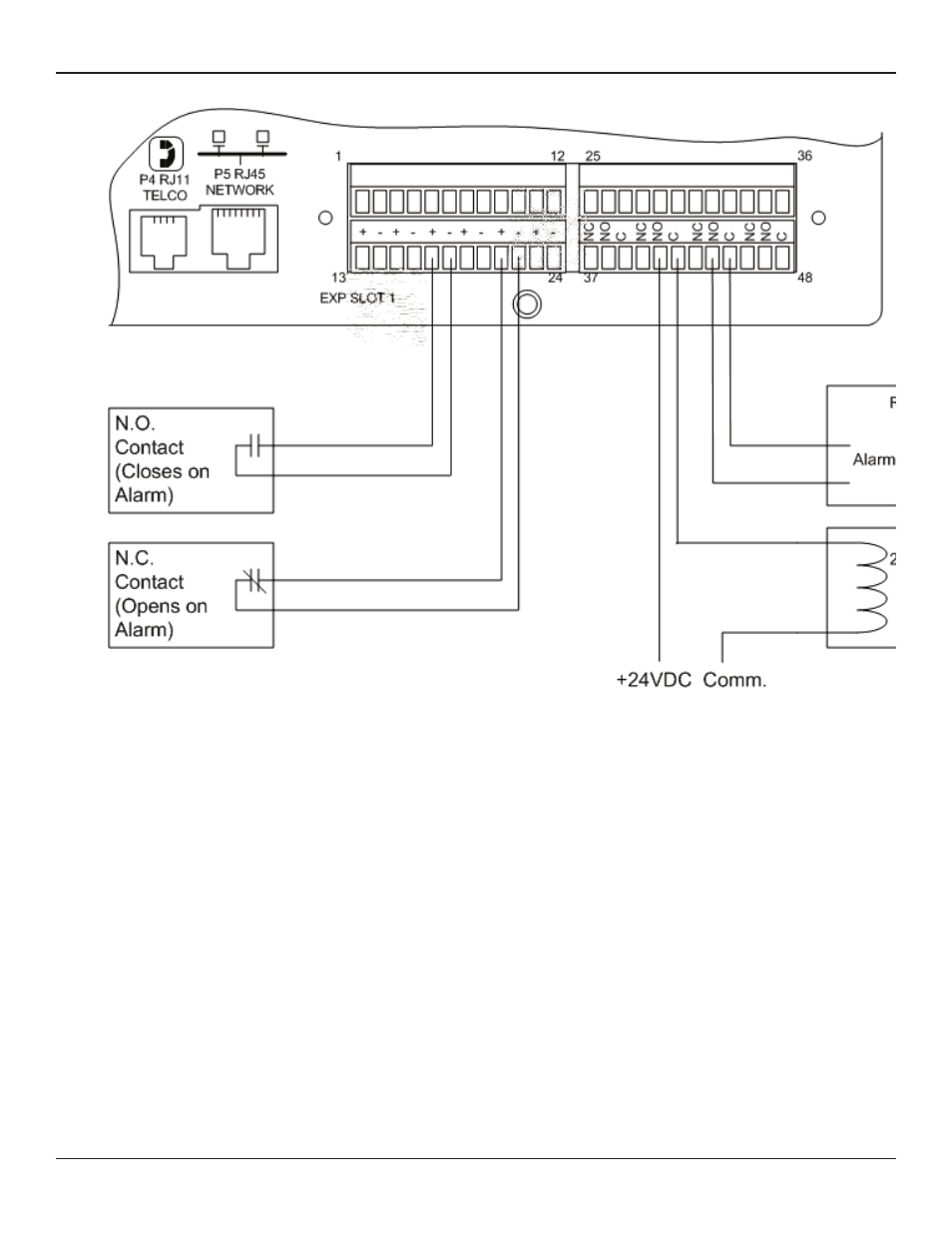

Figure 2.14 Dry Contact Inputs with Ground and Relay Outputs, Expansion Card A
