Some equipment may have several dry contact outputs with a Common Ground. Connect this equipment as shown in Figure 2.4.

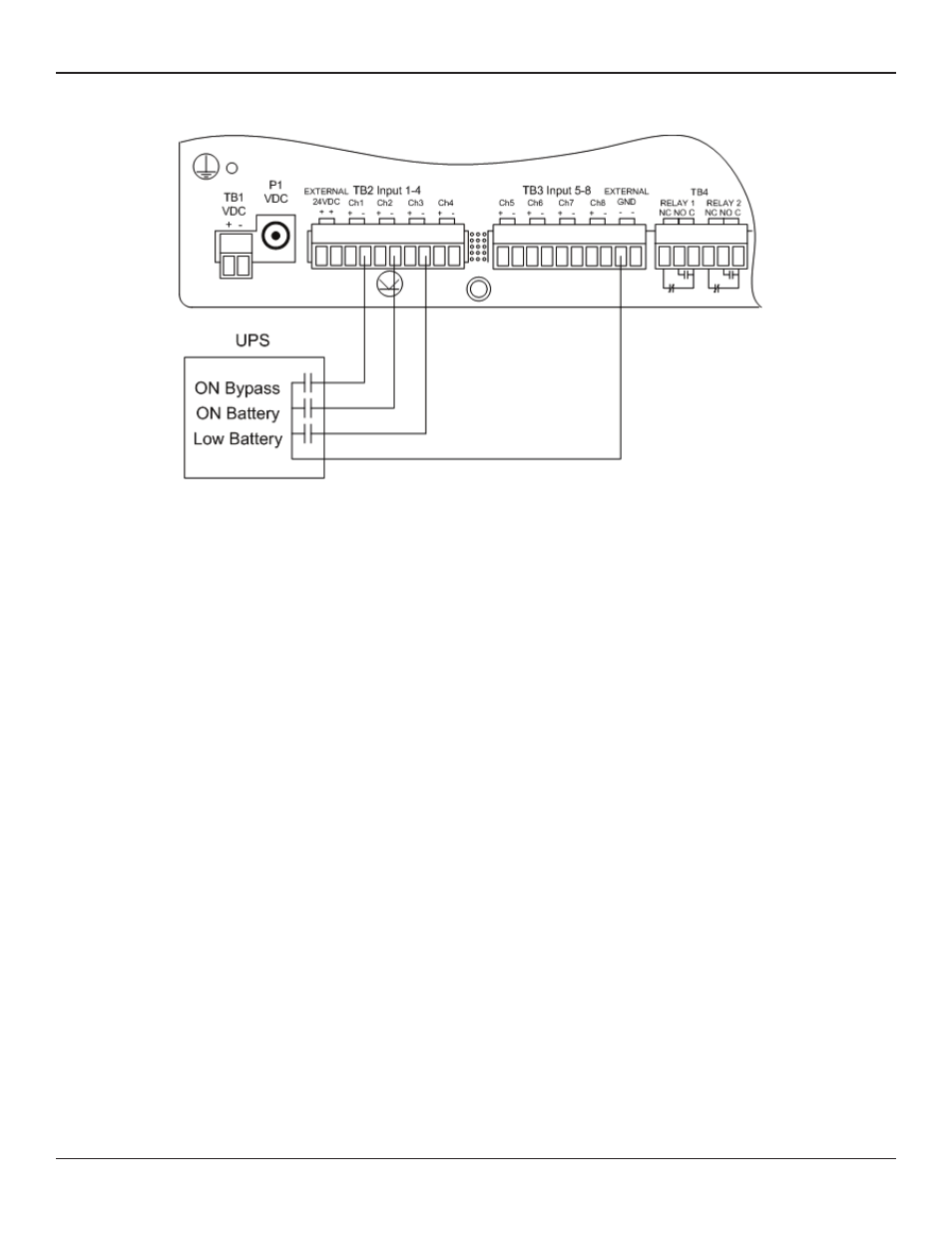

Figure 2.4 Dry Contact Inputs with Common Ground
